ASSEMBLE THE ELEVATOR MOUNT TO A FLAT OR ANGLED ROOF
4.
A.

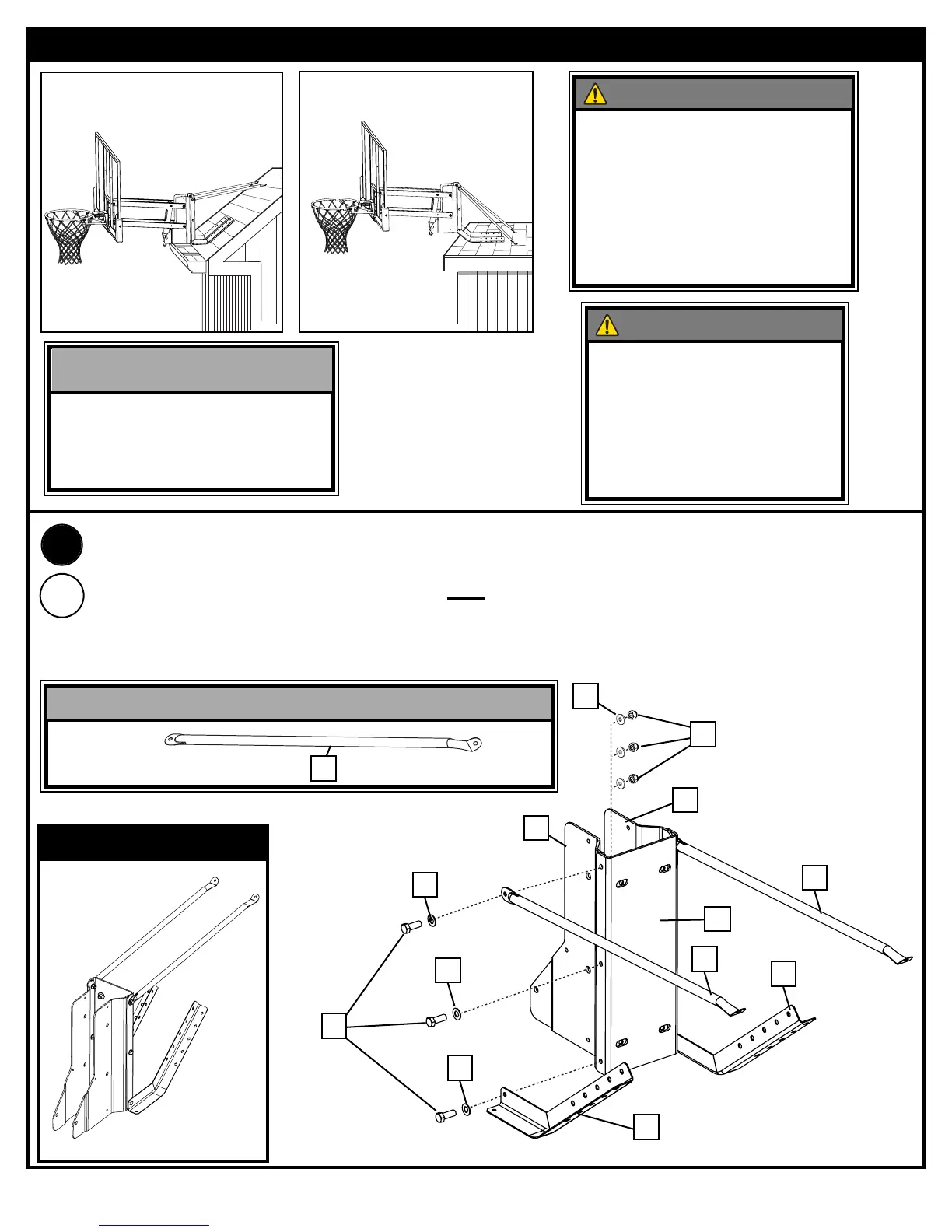

Preassemble as shown below prior to mounting on roof.
Attach struts (23), angle brackets (26 & 27) AND
jack support brackets (18 & 19) to pole bracket
(17) with bolts (3), washers (9) and nuts (11) as shown.
9
18
9
23
23
27
26
17
19
9
9
3
11
Hardware for these procedures
are not included due to various
roof and wall construction
materials and design structure.
NOTE:
Carefully inspect mounting
area for structural integrity
and hidden electrical wiring.
All mounting points should
be sealed to prevent leaks
and water damage"
WARNING!
A solid mounting base and/or
surface, capable of withstanding
normal recreational use forces,
must be provided by the
customer. A reliable carpenter
or building contractor should be
consulted if there are questions
regarding this procedure.
WARNING!
Completed Assembly
NOTE: Strut Position
To
U-Channel
To
Roof
23
