SPALDING M316001 - Page 9

01/07 ID# M316001
9

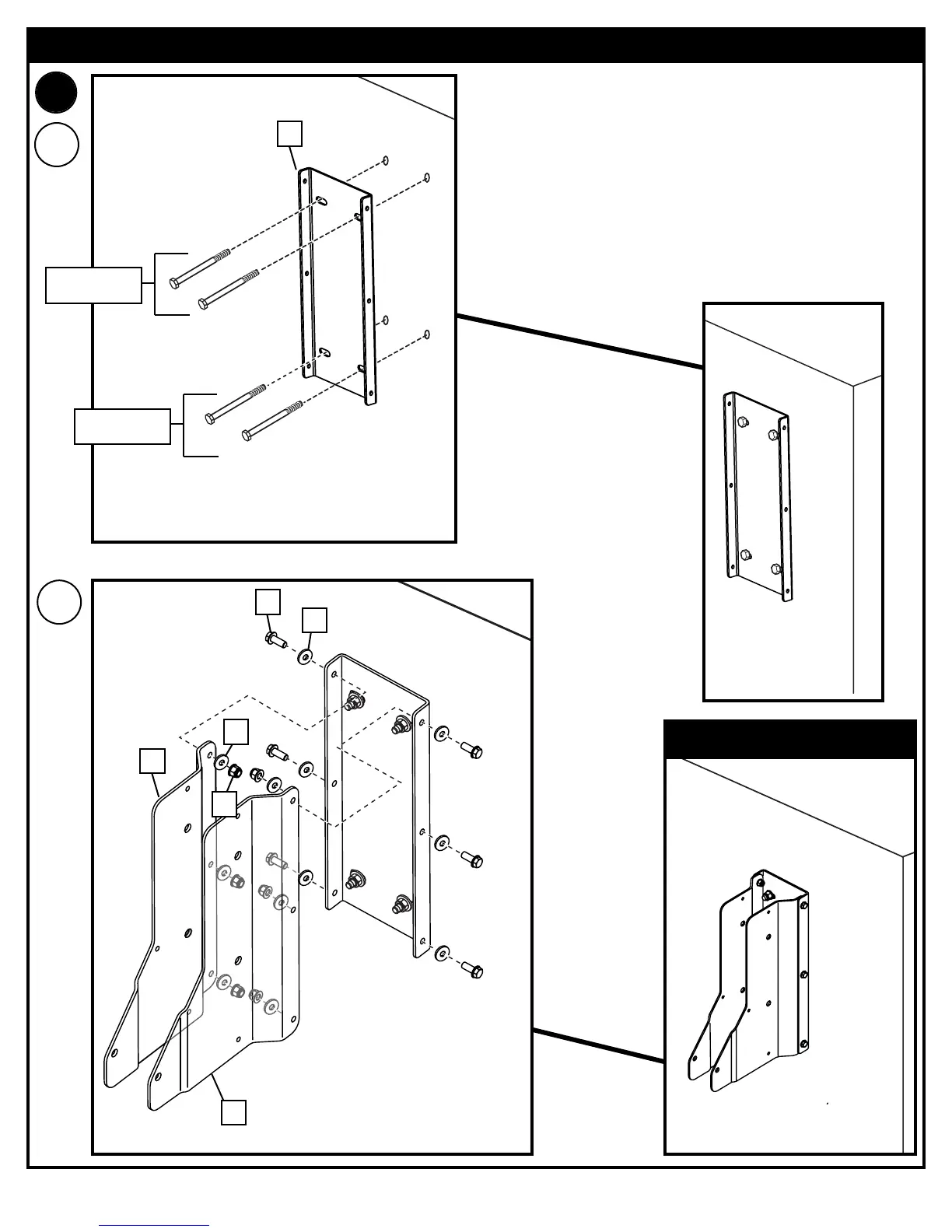

ASSEMBLE THE ELEVATOR MOUNT TO A WALL OR FLAT SURFACE
3.
17
Completed Assembly
3
19
18
9
11
B.
Not Included
with Hardware
Not Included
with Hardware
Secure pole bracket (17) to flat solid surface. Install bolt
heads outside for safety reasons.
Attach jack support brackets (18 & 19) to pole bracket (17)
using bolts (3), washers (9) and nuts (11) as shown.
A.
9
