5.Designing Artemis Into End Application
Routing and Recommended Keep Out

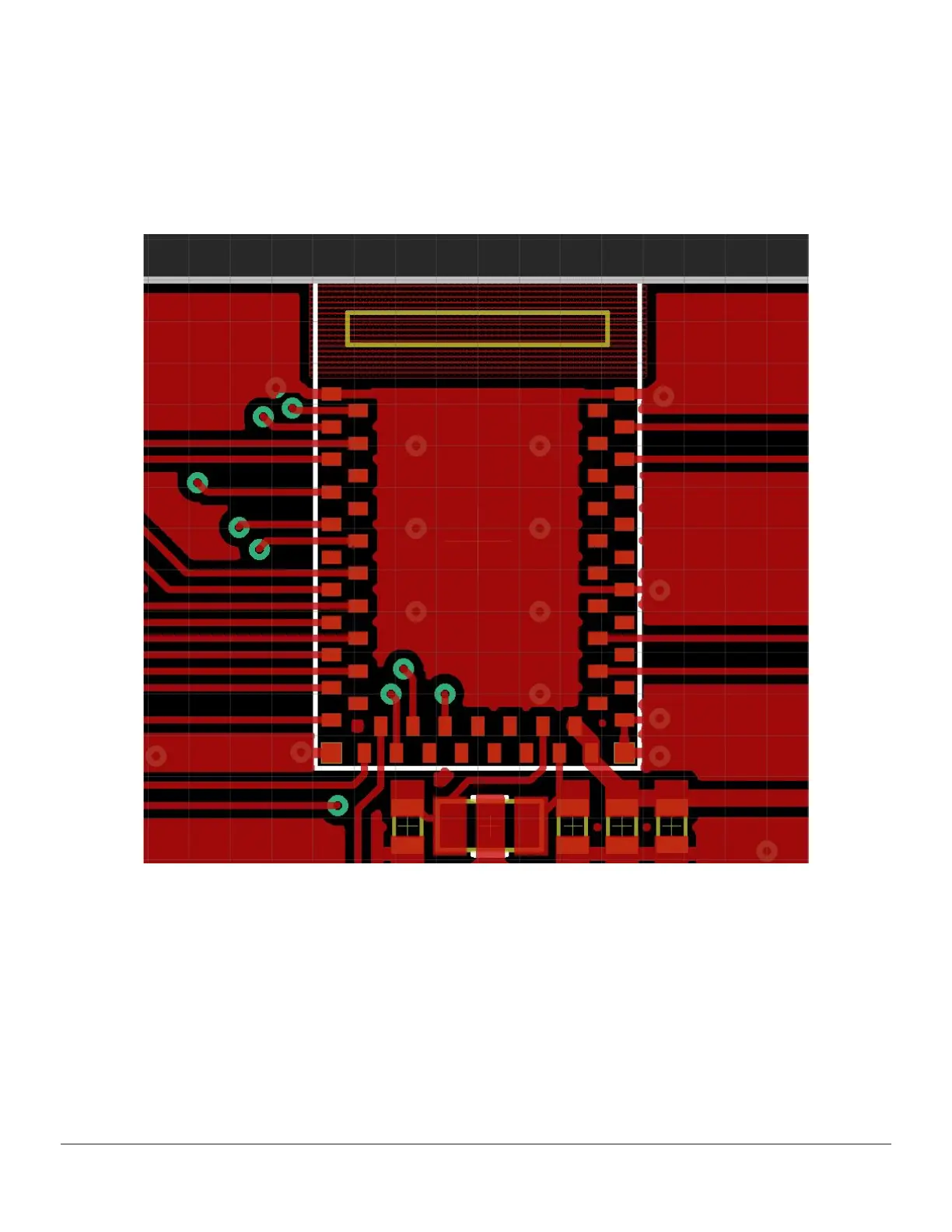

An example layout with ground pour and ground vias
The Artemis module was designed to be implemented onto low cost 2-layer PCBs with easy 8mil trace/space
routing. A good ground connection is essential. Routing under the module is allowed. Keep all ground pours
away from the antenna area. If mechanical exposure allows for it the antenna can be extended over the edge
of the PCB for increased reception.
6.Programming
SparkFun Electronics Inc - Artemis Integration Guide - 1p0p3 10
