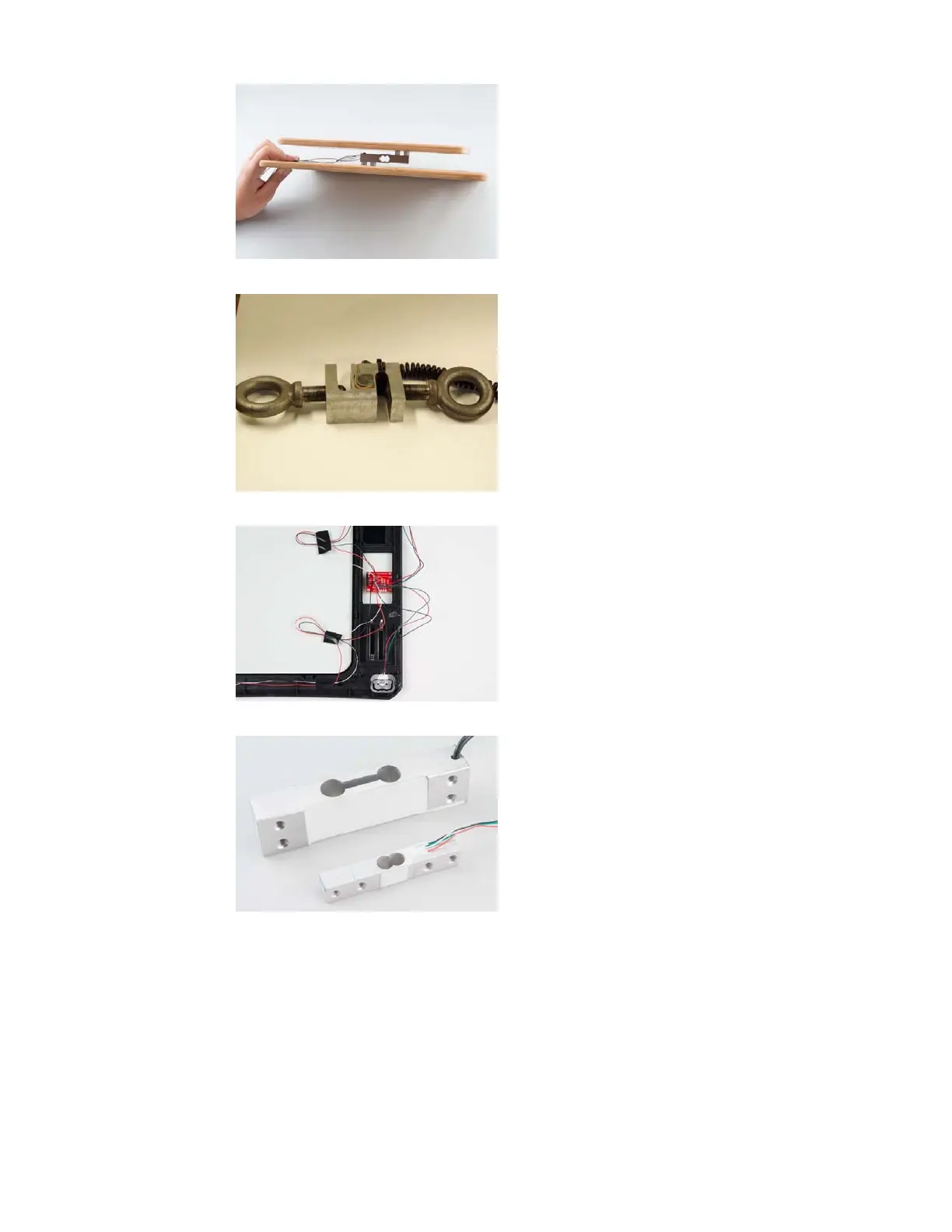

Bar load cell between a two plate configuration
S load cell configuration
Possible four disc load cell configuration in something like a bathroom scale
Bar strain gauge based load cells
Usually with larger, non-push button bar load cells you will want to hook up
the load cell between two plates in a “Z” shape, with fitting screws and
spacers so that the strain can be correctly measured as shown below:
