sparkfun Weevil Eye - Page 3

1

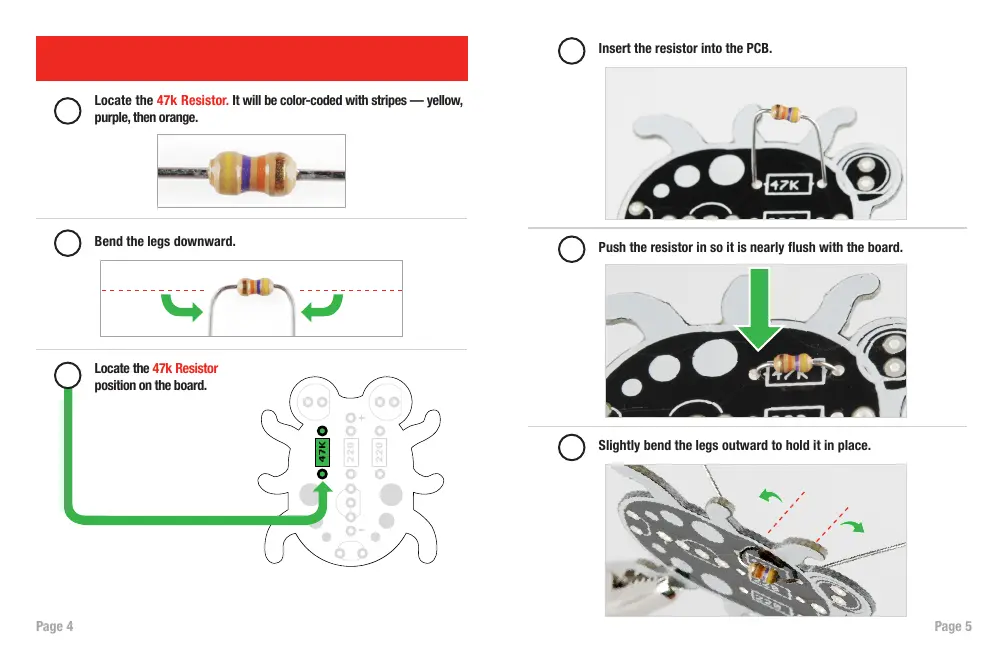

Locate the 47k Resistor. It will be color-coded with stripes — yellow,
purple, then orange.
2
Bend the legs downward.
Locate the 47k Resistor
position on the board.
47K 220 220
QUICKSTART - YOUR FIRST COMPONENT
[ STEPS 1 T0 12 ]
3
4
Insert the resistor into the PCB.
5
Push the resistor in so it is nearly flush with the board.
6
Slightly bend the legs outward to hold it in place.
