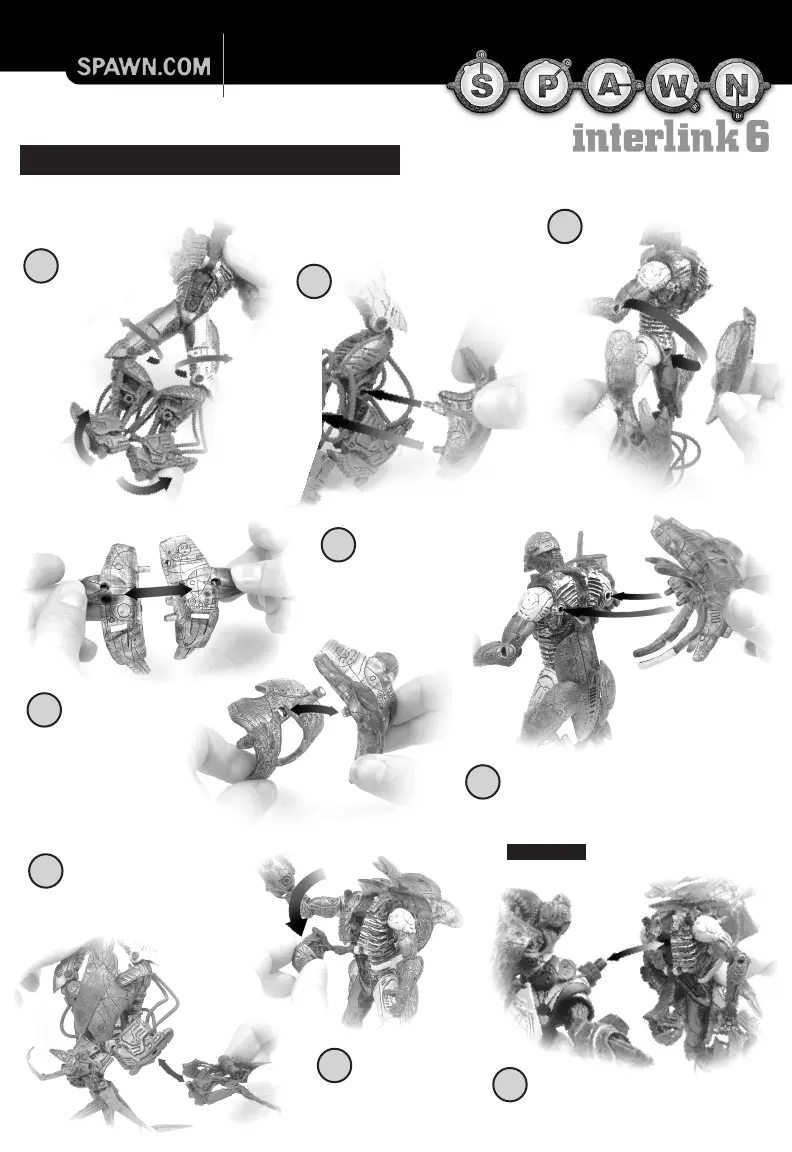

Turn out legs at
upper thigh to have
heels and calves
back to back.
Then pivot feet
to point
up
Take one lower leg shield and peg
into holes on front side. Repeat on
backside with other shield
Peg the
shield
that
was on
the
forearm
to the
back
Connect the two
pieces taken off
the shoulder
canopy together
Then connect those two
pieces to the shoulder
canopy as shown
Continue by pegging that canopy assembly
into two holes in
LA6’s back
Shoulder claws
peg into holes on
soles of shoes
Flip down head to
expose key lock hole
for attaching to
TS2
Line up slot from LA6 to peg of TS2 and
push together. Then rotate arm forward to
lock on peg
LA6
≥
TO
≤
TS2
CONNECTING
ASSEMBLY
INSTRUCTIONS PAGE 5
STEPS FOR ASSEMBLING INTERLINK 6 - CONTINUED
To Next Page
