SpeakerCraft S4 User Manual

INSTALLATION
Guidelines
• Use the Multi-Room Selectors only with amplifiers rated at 125 watts per channel or less.
• The InstaLLock™ connectors on the S4 and S8 accept wire from 18 AWG to 14 AWG. If you are not sure
about the gauge of the wire you intend to use please consult your SpeakerCraft dealer.
• To avoid possible damage to your amplifier, pay careful attention to the section titled "Protection Settings".
• There are two sets of adhesive area labels for use in identifying the locations of speakers. One set is for
use on the front of the connector. The other set is included with the InstaLLock™ connector and can be
used to more clearly identify wires once they are secured to the InstaLLock™ connector.
Placement
The unique suction feet on the bottom of the selectors
increase placement options and hold the selector securely
when buttons are depressed. The suction feet are designed
to work well with a variety of textures that cover the tops of
other components.
Connecting Wires to the Selector
For easy installation SpeakerCraft supplies the
InstaLLock™ wiring harness for connecting the speakers to
the selector. If you are using the Multi-Room Selector with
distributed audio, you may wish to connect the InstaLLock™
wiring harness to the speaker wires and then at a latter time
plug it into the selector. The selector can then be quickly
connected at the time of "trim out".
S4 and S8 Multi-Room
Speaker Selectors
with InstaLLock™ Connector
THE SPEAKERCRAFT MULTI-ROOM SPEAKER SELECTORS ALLOW THE OPERATION OF MULTIPLE PAIRS OF
SPEAKERS WHEN USING ONE AMPLIFIER OR RECEIVER. ONCE THE SPEAKERS ARE CONNECTED TO THE
SELECTOR, INDIVIDUAL PAIRS MAY BE TURNED ON OR OFF AS DESIRED USING THE PUSH BUTTONS ON THE
FRONT OF THE SELECTOR. ONE PAIR, ALL PAIRS, OR ANY ASSORTMENT OF PAIRS MAY BE PLAYED. WHEN
ENGAGED, A PROTECTION CIRCUIT ALLOWS THE AMPLIFIER TO OPERATE SAFELY, EVEN WHEN ALL SELECTED
SPEAKERS ARE PLAYING.
THE PROCESS OF INSTALLING THE InstaLLock™ CONNECTOR MAKES WIRING THE SELECTOR TO YOUR SPEAK
-
ERS QUICK AND EASY. WITH A SIMPLE PUSH OF A FINGER UNSTRIPPED WIRES PLACED INTO THE CONNECTOR
ARE SOLIDLY SECURED AND A PERFECT ELECTRICAL BOND IN CREATED. THE PROCESS IS QUICK, SIMPLE, AND
ELIMINATES THE WORRY OF WIRES BECOMING LOOSE.
PROTECTION
FAMILY RMPOOL ROOMBEDROOM 2BEDROOM 1DINING RMLIVING RMBATHKITCHEN
S8 MULTI-ROOM SPEAKER SELECTOR
SpeakerCraft
OWNERS MANUAL
SpeakerCraft
®
Of
f
On
Continuous
Pr
otection
SpeakerCraft Inc.
1650 Seventh Str
eet, Riverside,
CA 92507-4455 USA
SpeakerCraft
R
Speaker Output
1-
4
4
3
2
1
+
-
L
e
ft
+
-
R
ig
h
t
SpeakerCraft
R
SPEAKER WIRES
CUT-OUT IN W
ALL
InstaLLock™
CONNECTOR
PLUG INTO
BACK OF
SELECTOR

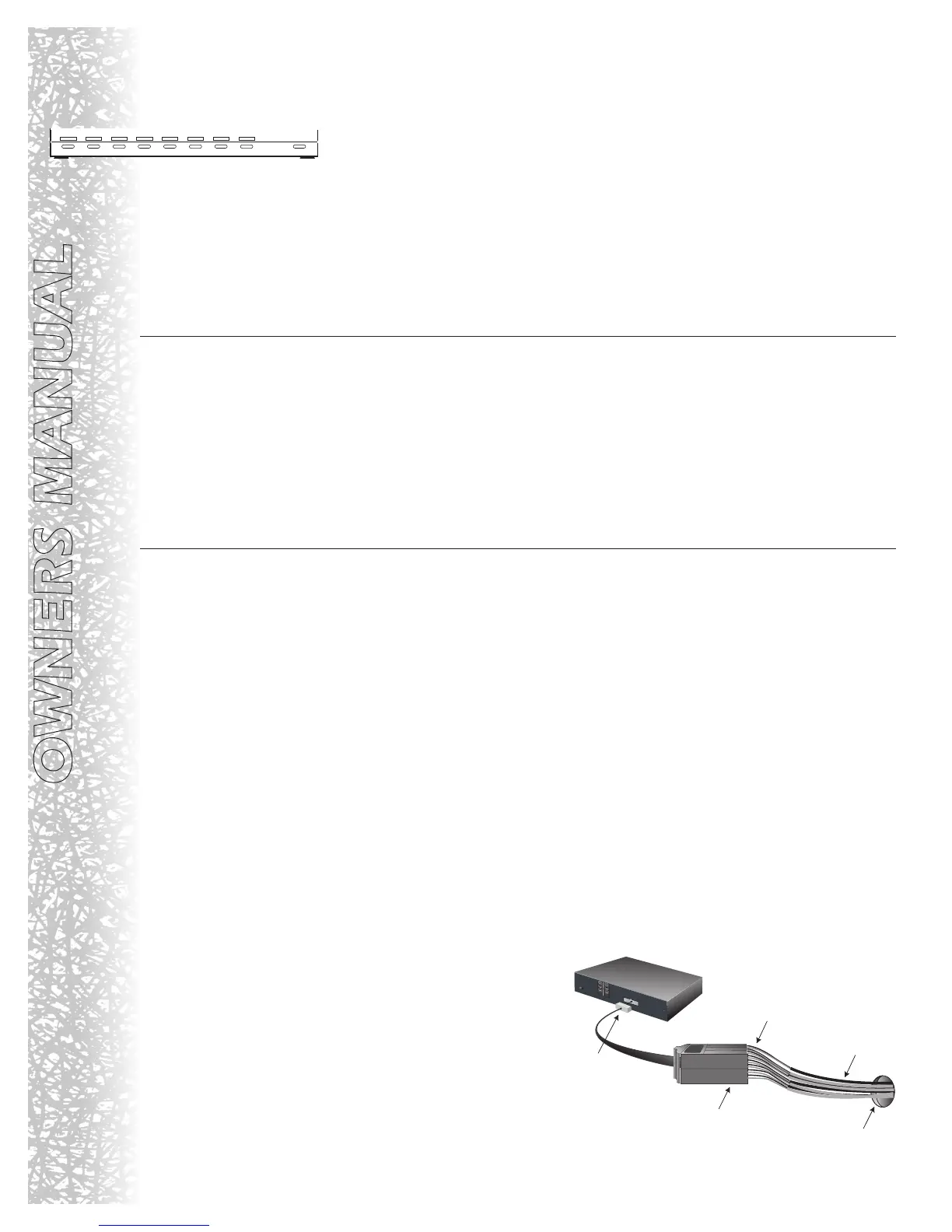

STANDARD INSTALLATION
USING 18" InstaLLock™
CONNECTOR
CONNECT SPEAKER WIRES
TO InstaLLock™ CONNECTOR
Figure #1

SpeakerCraft S4 Specifications
