PITCH FRAME GEOMETRY
* TT length is the Horizontal Measurement from the center-line of the HT at the top of the HT to the center-line of the projected seat tube.
** Stand Over height is measured vertically at the centerpoint of the TT measurement.
*Top Tube Length
**Standover Hgt
Head Tube Length
Head Tube Angle
Seat Tube Angle
BB Height
Wheelbase
Chainstay Length
1
2
3
4
5
6
7
8
Men’s Small
565mm
742mm
102mm
67°
74°
356mm
1126mm
421mm
(22.24“)
(29.21”)
(4.02”)
(14.02”)
(44.33”)
(16.57”)
Men’s Medium Men’s Large Men’s X-Large
645m
765mm
150mm
67°
74°
356mm
1211mm
421mm
(25.39”)
(30.12”)
(5.91”)
(14.02”)
(47.68”)
(16.57”)
620mm
759mm
128mm
67°
74°
356mm
1183mm
421mm
(24.41”)
(29.88”)
(5.04”)
(14.02”)
(46.57”)
(16.57”)
586mm
748mm
108mm
67°
74°
356mm
1148mm
421mm
(23.07”)
(29.49”)
(4.25”)
(14.02”)
(45.20”)
(16.57”)
Pitch

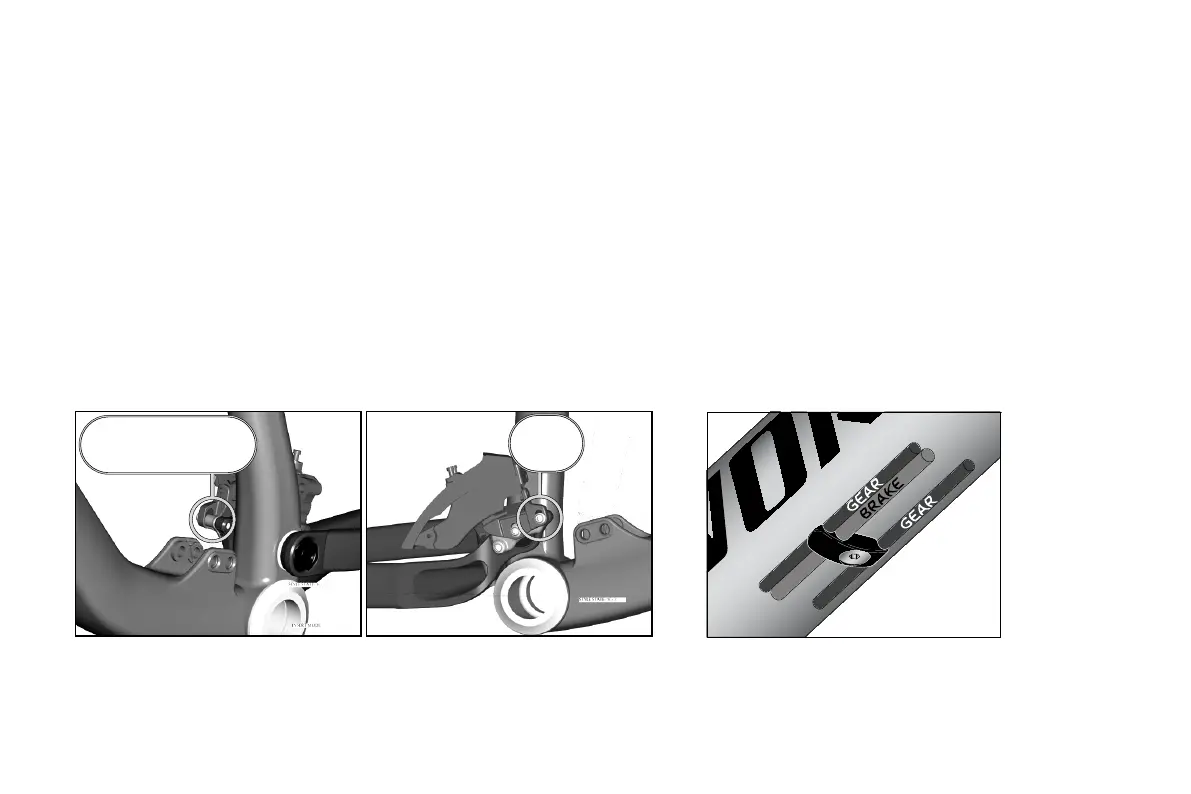

E-TYPE FRONT DERAILLEUR SETUP:
The Pitch uses an E-Type front derailleur with the BB section
removed. The upper portion of the derailleur is attached to
the BB pivot so that the front derailleur can follow the chain.
Place height adjustment
nut in upper position for
correct derailleur /
chainring clearance
Correct
derailleur
position
CABLE GUIDE SETUP:
The Pitch is equipped with brackets that are bolted
over the cables to keep them in place. Each groove is
sized specifically to fit either a gear or brake housing.
PITCH FRAME SETUP
