REAR SHOCK SETUP
Rear Air Shock Setup
AFR Brain Fade
Sag Setting: Set the sag at 18 to 33% of shock stroke. 11-19mm.
See attached chart for starting air pressure.
Note - the chart is only a starting point, actual sag needs to the checked and adjusted on the
bike, while riding, and at regular intervals.

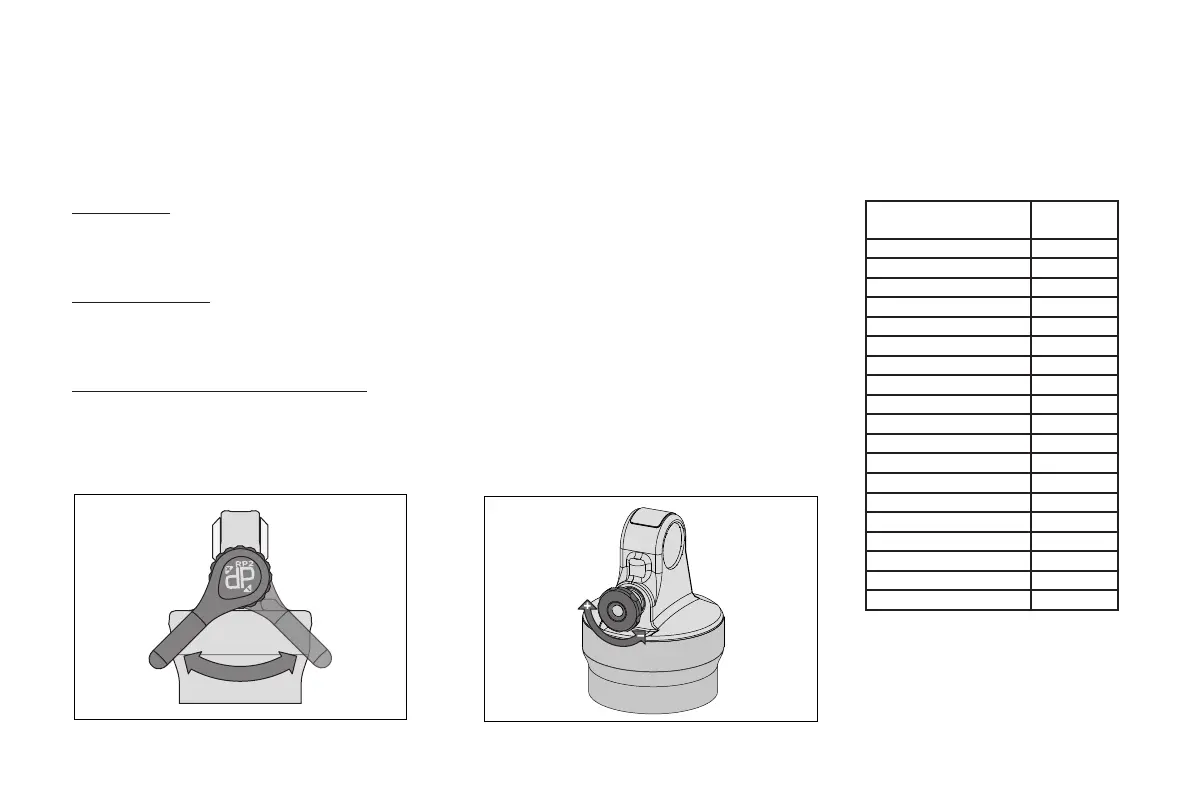

Rebound setting: Rebound damping controls the rate at which the shock returns after it has
been compressed.
• Clockwise for slower rebound (slow speed, bigger hits).
• Counter-clockwise for faster rebound (higher speeds, small bumps, more traction).
Compression setting (Fox RP2 only): Fox RP2 shocks are equipped with a two-setting switch:
• ProPedal - Slow speed compression to improve efficiency while still allowing the
shock to absorb medium and large size hits.
• Open - Very little compression damping for the most supple ride possible.
NOTE: This air chart is designed
as a recommended starting
point only. Please refer to your
shock owner’s manual for
additonal setup information.
Rider Weight
lbs
90-100
100-110
110-120
120-130
130-140
140-150
150-160
160-170
170-180
180-190
190-200
200-210
210-220
220-230
230-240
240-250
250-265
265-280
280-295
(kg)
(41-45)
(45-50)
(50-54)
(54-60)
(60-64)
(64-68)
(68-73)
(73-77)
(77-82)
(82-86)
(86-91)
(91-95)
(95-100)
(100-104)
(104-109)
(109-113)
(113-120)
(120-127)
(127-134)
Air PSI
70-75
75-85
85-95
95-105
105-115
115-125
125-135
135-145
145-155
155-165
165-175
175-185
185-195
195-205
205-215
215-225
225-235
235-245
245-255
