INITIAL ASSEMBLY / CHANGING FIT
Your Shiv comes pre-assembled, minus the front wheel and the cockpit assembly. Before assembling the cockpit, it is recommended to be fit to the bike.

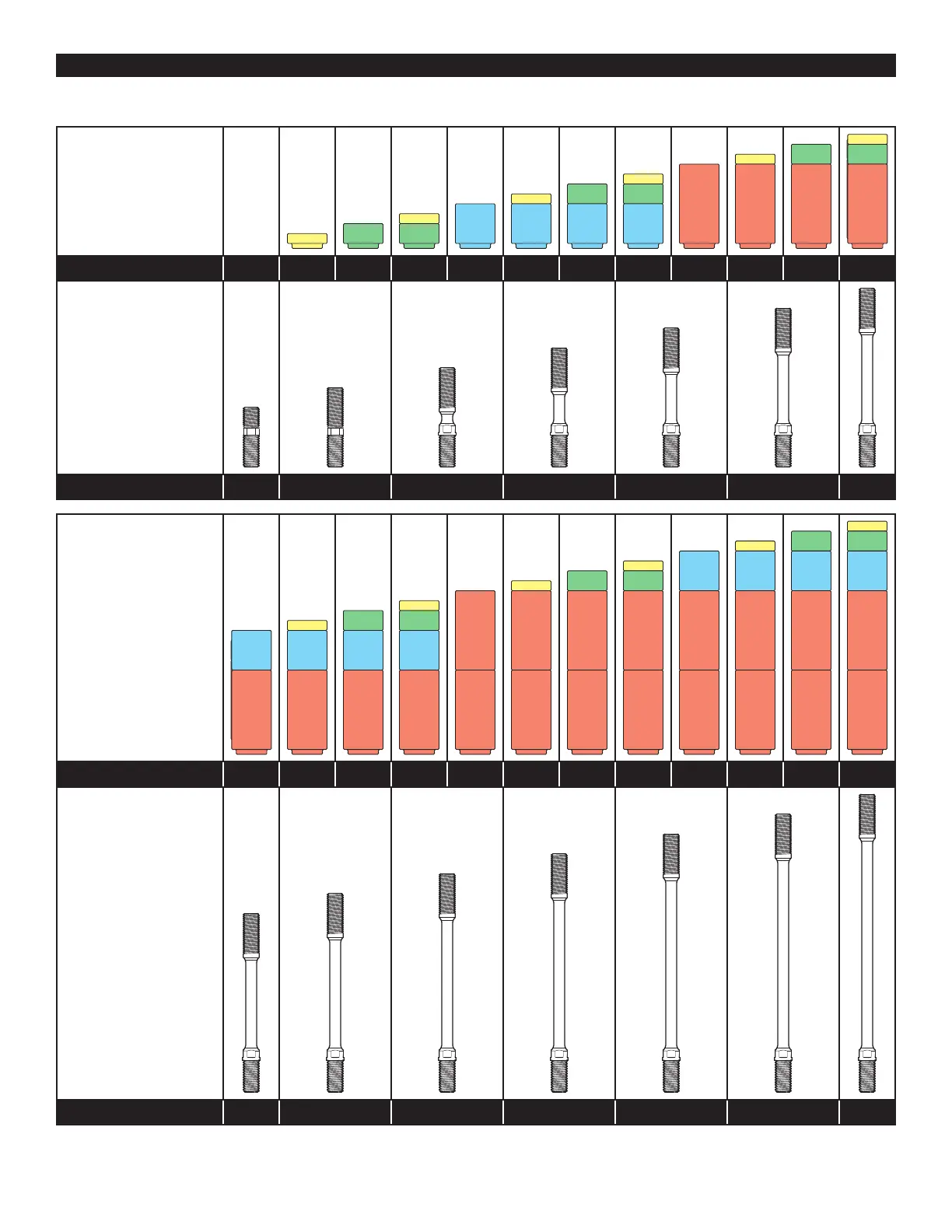

The table below explains the required Tower Stud length for the desired Spacer Stack.
SPACER STACK 0 5 10 15 20 25 30 35 40 45 50 55
STUD LENGTH 30 40 50 60 70 80 90
SPACER STACK 60 65 70 75 80 85 90 95 100 105 110 115
STUD LENGTH 90 100 110 120 130 140 150
1. To adjust the Spacer Stack height, you will need to find the corresponding Tower Stud (see table). The Tower Studs are marked in 10mm increments on the
wrench flat. E.g. A 40mm Spacer Stack requires a 70mm Tower Stud.
