Attaching the mounting brackets for 19” rack mount
The most common use of the mounting brackets is for standard 19” rack mounting. Before
attaching the brackets place the mixer on a flat surface on its rear connectors - knobs facing
up.
Use the (5) black 6-32 Phillips flat head machine screws that have been supplied to attach

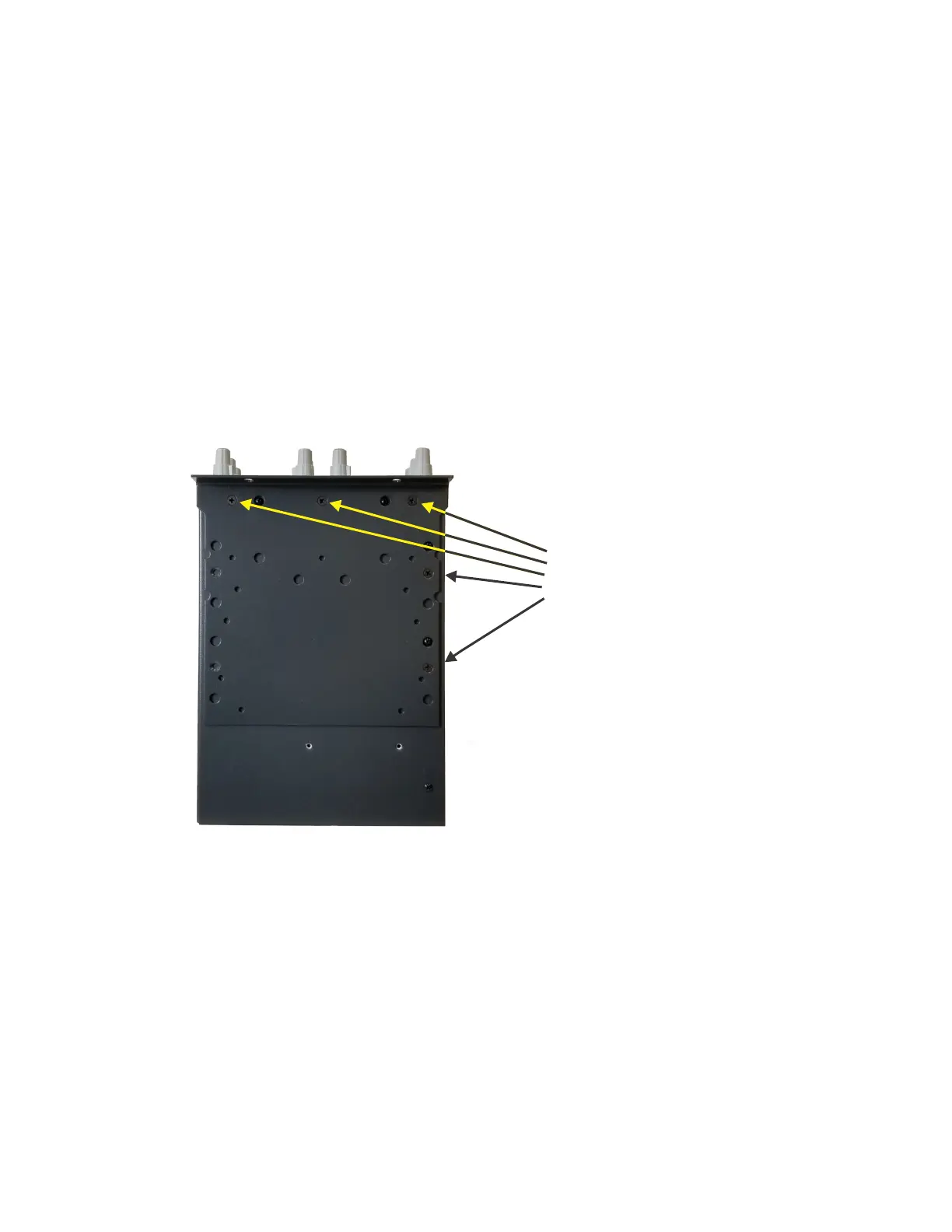

each mounting bracket to both sides of the mixer. See Figure 3 for the location of the
mounting holes. Be sure to use all 5 screws on each side.
Attach with
5 Screws
Figure 3.
