SECTION 1: FEATURES AND SPECIFICATIONS
 120W RMS/240W Max Power
 AC 115V, 60Hz
 3 XLR Microphone inputs with selectable phantom power (Mic 1 has selectable priority)
 Telephone paging input
 Music on hold output
 5 zoned speaker outputs (70 or 25V)
 Non-zoned 4/8/16 Ohm output
 RCA or XLR line output
 Front Bass and Treble controls
 Individual volume control for each input
 Master digital volume control
 Digital front panel lock
 RS232 input for integration with popular control systems
SECTION 2: Controls and Connections

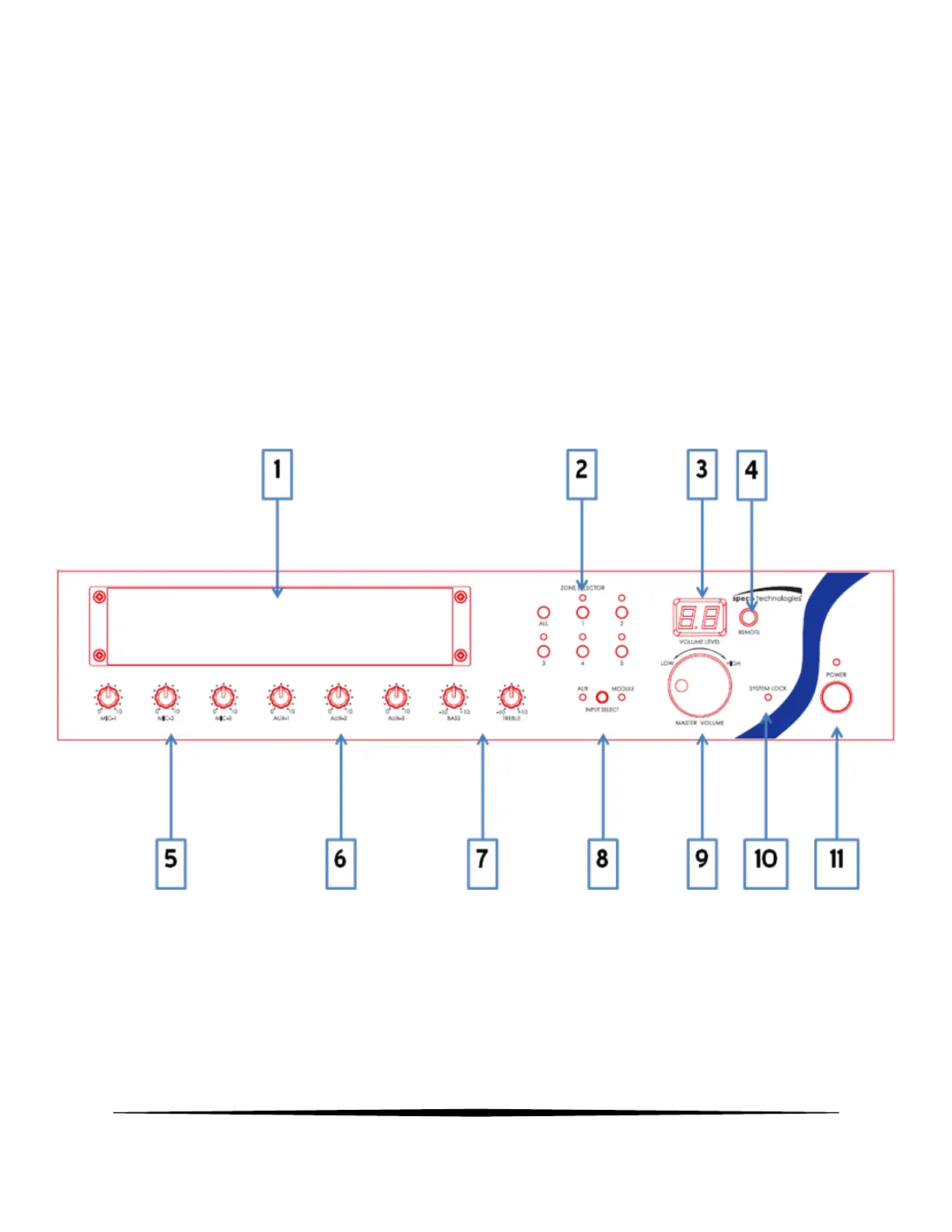

FRONT PANEL
