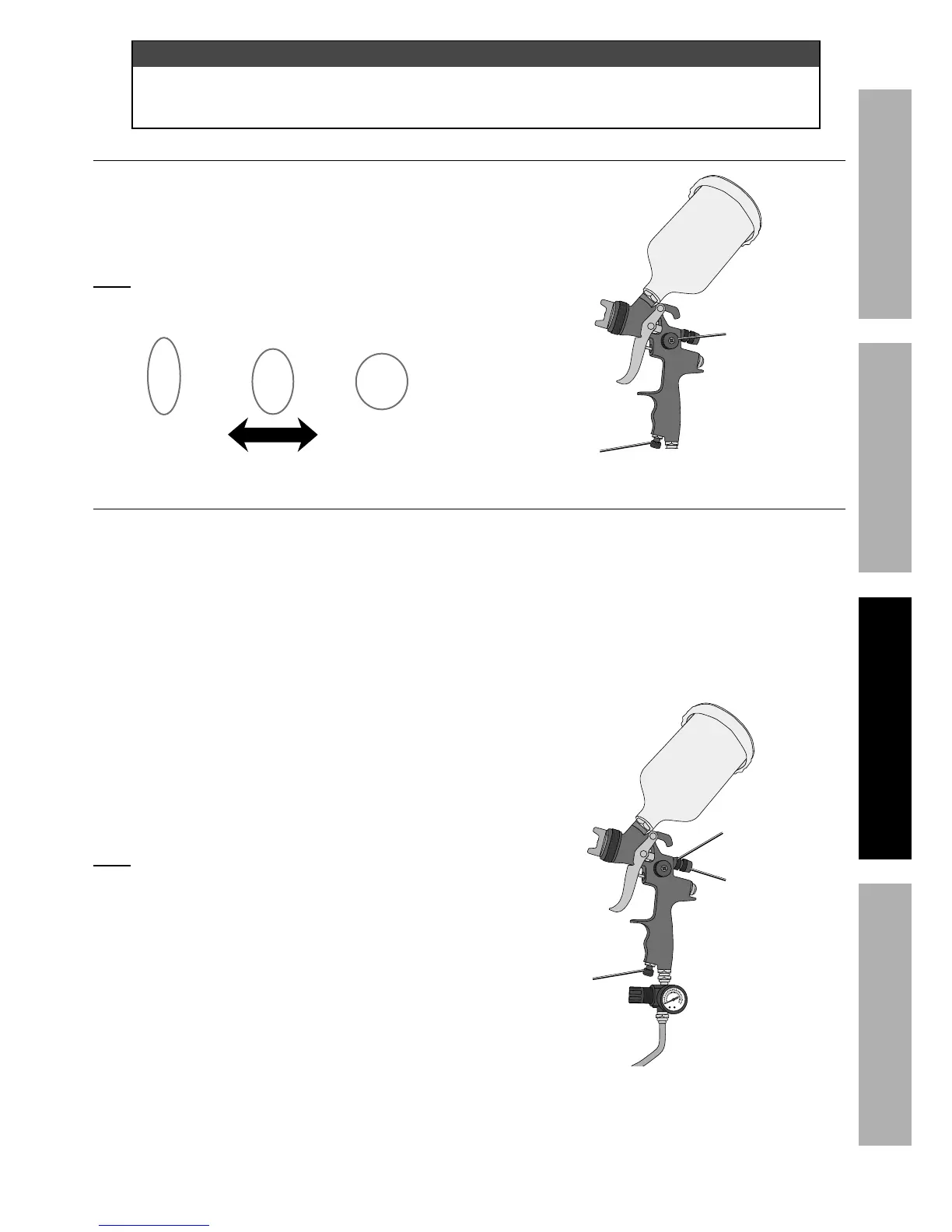

Turn Pattern Control Knob
counterclockwise (all the way open) for flat
spray pattern.
Turn Pattern Knob clockwise (all the way closed)
for a round spray pattern.
>&$*- When reducing pattern size for specific areas,
close the Air Control Knob a small amount at a
time. until proper pattern size is achieved.
K,8%N%T/*8
G&'89%N%;7&#*9
U,$$*(8%
;&8$(&7%
Y8&+
="(%
;&8$(&7%
Y8&+
K7'"90="(%=9^'#$5*8$
1. Attach spray gun regulator to Air Inlet.
2. Attach air hose to regulator.
3. Turn on air compressor according to the
manufacturer’s directions and allow it to
build up pressure until it cycles off.
4. Adjust the air compressor’s regulator
so that the air output is:
a. 60 PSI for 64823
b. 70 PSI for 64824
5. Open Air Control Knob fully (counterclockwise).
6. Fully depress Trigger, then set
Spray Gun’s regulator to:
a. 28 PSI (maximum) for 64823
b. 35 PSI (maximum) for 64824
>&$*- If Spray Gun’s regulator cannot
reach maximum pressure, slowly adjust
compressor’s regulator until maximum pressure
is achieved at the Spray Gun’s regulator
7. Open Fluid Control Knob (counterclockwise)
until Trigger can be fully depressed.
8. Turn Fluid Lock Nut clockwise until it
stops against the Spray Gun body.
9. Spray on piece of scrap material in short
bursts, then check consistency.
10. If necessary, slowly close Fluid Control Knob
and/or Air Control Knob (clockwise), then spray on
scrap material until desired consistency is achieved.
11. To lock fluid adjustment Turn Fluid Lock Nut
clockwise until it stops against the Spray Gun.
12. If paint is too thick, thin paint according
to manufacturer’s instructions and
repeat instructions above.
PSI
Bar
="(%
;&8$(&7%
Y8&+
K7'"9%
;&8$(&7%
Y8&+
K7'"9%
