Spectrum 64823 User Manual

Page 19K&(%$*4.8"4,7%J'*#$"&8#L%/7*,#*%4,77%MNOOONOPPNQRSR1Item 64823 64824
NOTICE
Clean the Spray Gun and Cup IMMEDIATELY after EVERY use and when it will be idle for more
than 30 minutes. Delayed or inadequate cleaning will permanently clog the Spray Gun.
DO NOT USE LATEX PAINT IN THIS SPRAY GUN.
D=K6BCTU6G=B?T>@=?>B6>=>;6 D6BVU
U,($#%<"#$%,89%A",3(,5

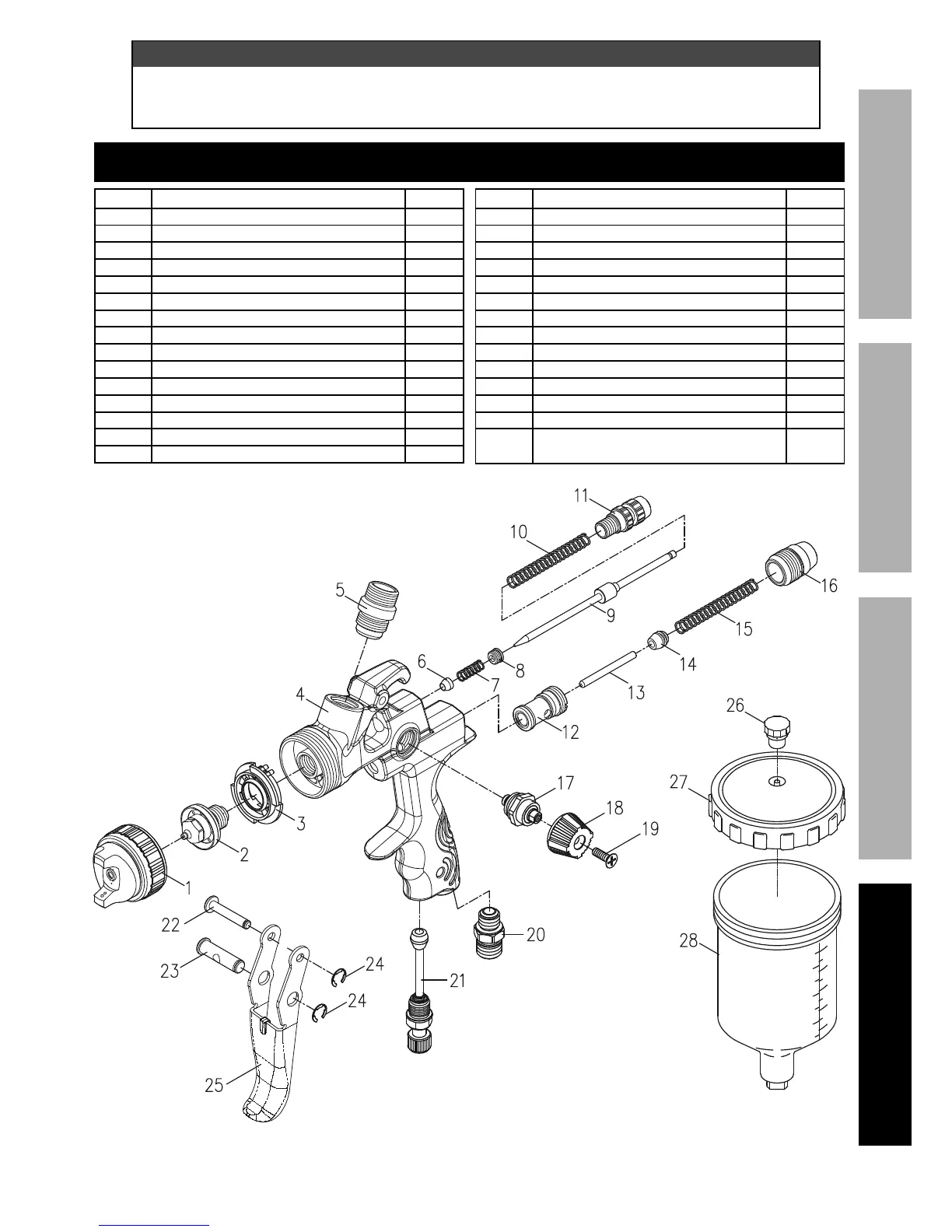

U,($ A*#4("/$"&8 i$E
1 Air Cap 1
2 Fluid Nozzle 1
3 Air Valve 1
4 Gun Body 1
5 Fluid Inlet 1
6 Needle Packing 1
7 Fluid Spring 1
8 Needle Packing Nut 1
9 Fluid Needle 1
10 Fluid Needle Spring 1
11 Fluid Control Knob Set 1
12 Air Valve Lock Seat 1
13 Air Valve Shaft 1
14 Air Valve Gasket 1
15 Spring 1
U,($ A*#4("/$"&8 i$E
16 Screw 1
17 Fan Control Assembly 1
18 Pattern Adjustment Knob 1
19 Screw 1
20 Air Inlet 1
21 Air Control Set 1
22 Pin 1
23 Hollow Pin 1
24 E-Clip 2
25 Trigger 1
26 Air Vent 1
27 Lid 1
28 Cup 1
29
Spray Gun Wrench, Brush and
Fluid Filter (not shown)
1

Spectrum 64823 Specifications

General

Brand	Spectrum
Model	64823
Category	Paint Sprayer
Language	English
