Exploded View & Spare Parts List

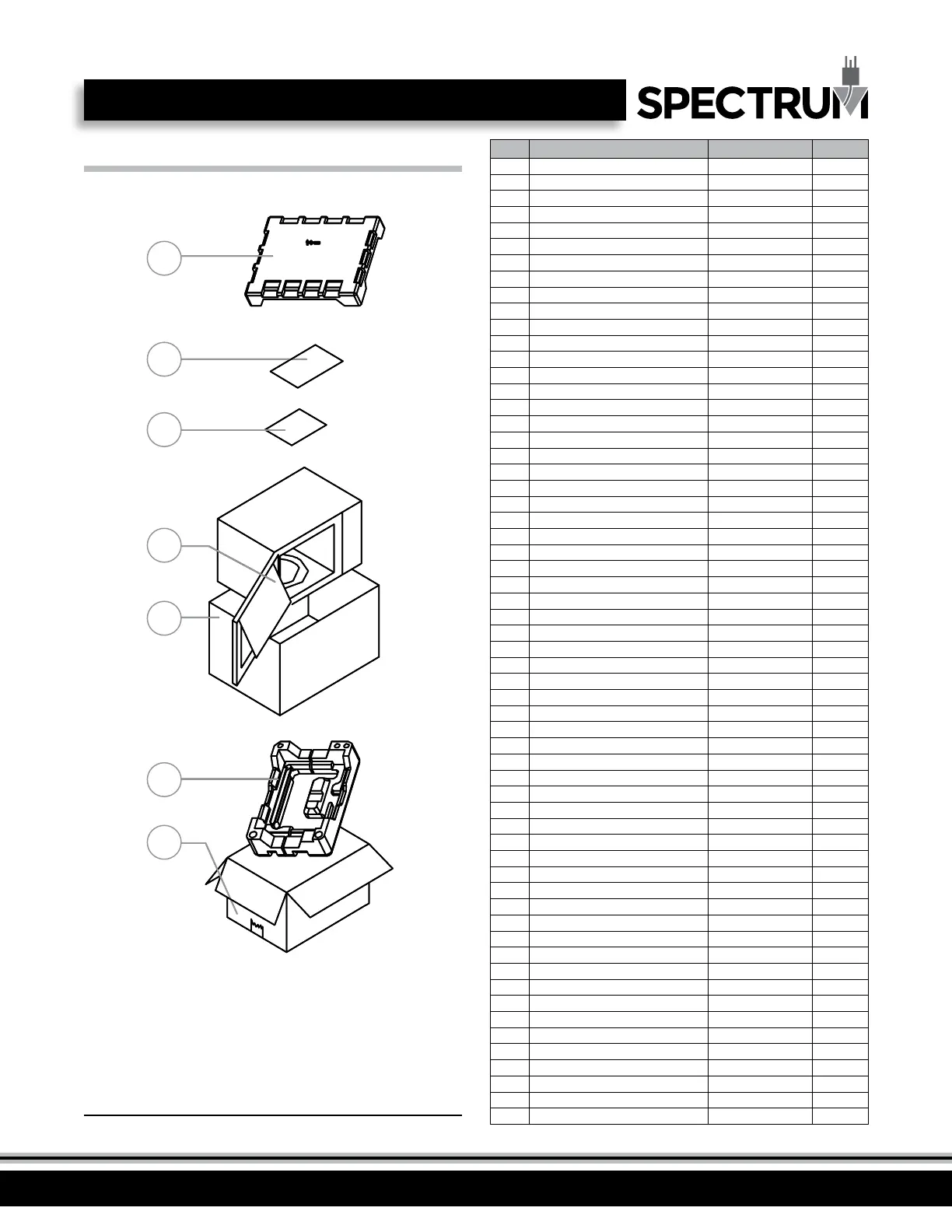

PACKAGE CONTENTS FOR MODEL EMW1000SD
NO. DESCRIPTION PART # QTY
1 Door Plate EMWD-P1 1
2 Shielding Board EMWD-P2 1
3 Upper Hinge EMWD-P3 1
4 Cavity EMWD-P4 1
5 Thermostat EMWD-P5 1
6 Cavity Prop EMWD-P6 1
7 Rear Nameplate EMWD-P7 1
8 Outer Enclosure EMWD-P8 1
9 Cavity Ceramic Board EMWD-P9 1
10 Seal Band EMWD-P10 1
11 Stirrer EMWD-P11 1
12 Axis EMWD-P12 1
13 Pulsator Support EMWD-P13 3
14 Stirrer Bracket EMWD-P14 1
15 Fan Motor EMWD-P15 1
16 Wave Filter EMWD-P16 1
17 Fan Bracket EMWD-P17 1
18 Fan Blade EMWD-P18 1
19 Inlaid EMWD-P19 1
20 Bar EMWD-P20 1
21 Door Window Board EMWD-P21 1
22 Door Frame EMWD-P22 1
23 Door Shell EMWD-P23 1
24 Handle Cover (Front) EMWD-P24 1
25 Handle EMWD-P25 1
26 Bracket EMWD-P26 1
27 Thermostat 1 EMWD-P27 1
28 Clamp Holder EMWD-P28 1
29 Lamp EMWD-P29 1
30 Magnetron EMWD-P30 1
31 Air Duct Bracket EMWD-P31 1
32 Switch Mount EMWD-P32 1
33 Rotary Arm (Big) EMWD-P33 1
34 Microswitch EMWD-P34 1
35 Microswitch EMWD-P35 1
36 Microswitch EMWD-P36 1
37 Rotary Arm (Small) EMWD-P37 1
38 Transformer EMWD-P38 1
39 H.V. Capacitor EMWD-P39 1
40 Capacitor Holder EMWD-P40 1
41 Rubber Stab EMWD-P41 1
42 Bracket (Transformer) EMWD-P42 1
43 Power Knob EMWD-P43 1
44 Time Knob EMWD-P44 1
45 Film Patch EMWD-P45 1
46 Board Shell EMWD-P46 1
47 Face Board EMWD-P47 1
48 P.C. Board EMWD-P48 1
49 Door Hinge Spring EMWD-P49 1
50 Lower Hinge EMWD-P50 1
51 Door Hinge EMWD-P51 1
52 Base Plate EMWD-P52 1
53 Motor Traypulsator Electromotor EMWD-P53 1
54 Stilt EMWD-P54 4
55 Foot EMWD-P55 4
56 H.V. Diode EMWD-P56 1
57 Power Cord EMWD-P57 1
58 Wiring Harness EMWD-P58 1
59 Bottom Plate EMWD-P59 1
60 Stirrer Assembly EMWD-P60 1
G
F
E
D
C
B
A
A. Upper Foam Cushion
B. Plastic Bag
C. Instruction Manual
D. Protective Film
E. Plastic Cover
F. Lower Foam Cushion
G. Carton
note
Please keep all packaging contents, in case of return or shipping.
