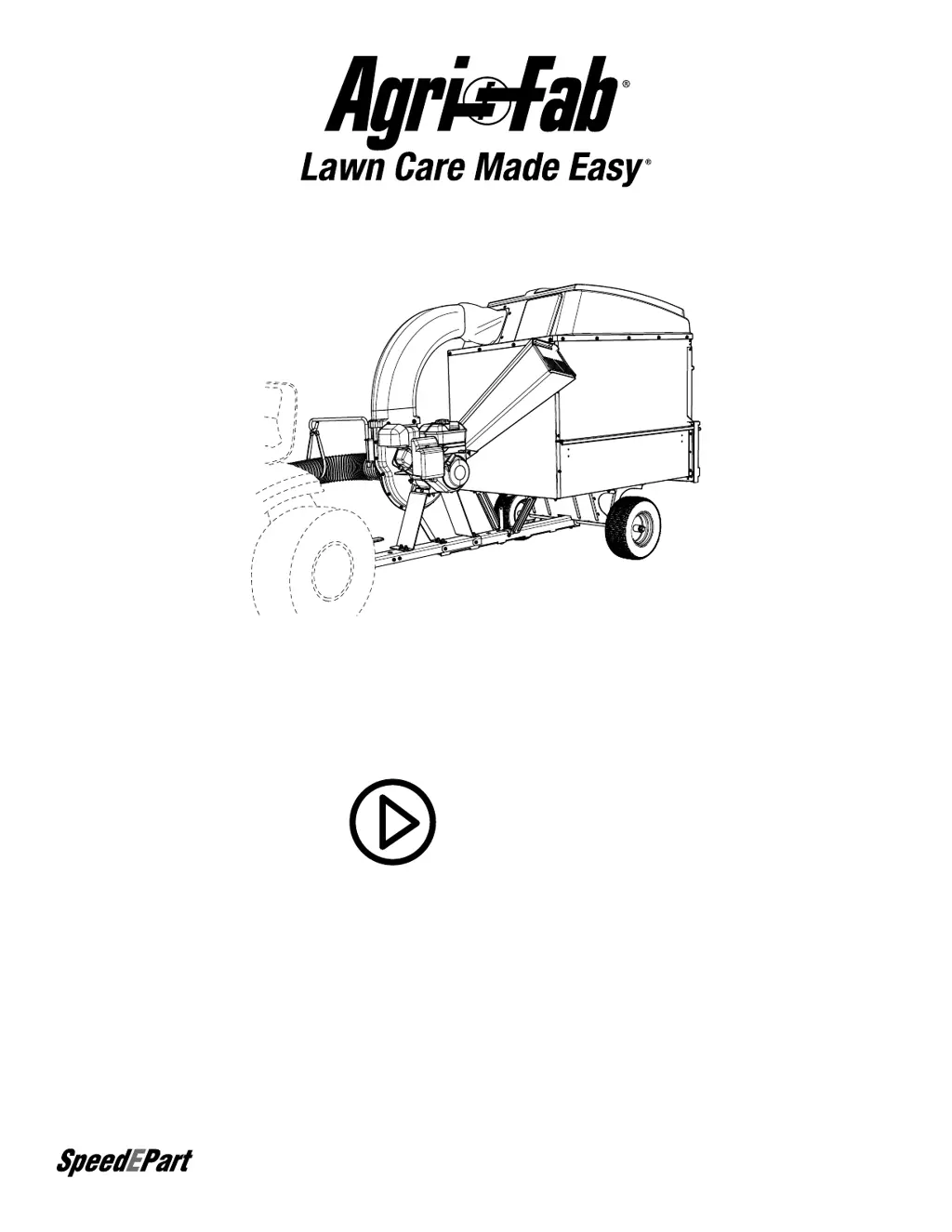

FORM NO 3-113 (06/28/21)
IMPORTANT: The engine is shipped without oil. Add oil before
starting the engine.
IMPORTANT: The wheel bearings are not pre-lubricated. Fill the
wheel hubs with grease after assembling the wheels to the axle.
IMPORTANT: Hose extension kit #65640 may be required for rear
engine tractors and zero turn tractors.
45-0578
CHIP-N-VAC
the fastest way to purchase parts
www.speedepart.com
youtube.com/c/agrifab
Video
Instruction
Guide
Want more information or assembly tips?

Table of Contents

Questions and Answers

  • C
    christina31Jul 28, 2025
    Why does my SpeedEPart Agri-Fab 45-0578 engine fail to start?
    • J
      Jacob Johnson DVMJul 28, 2025
      Your SpeedEPart Tiller engine may fail to start due to several reasons: * The spark plug wire might be disconnected, in which case you should connect the wire to the spark plug. * The safety switch may not be contacted; correctly install the hose adapter nozzle. * The fuel tank could be empty or contain stale fuel; fill the tank with clean, fresh fuel. * The fuel shut-off valve might be closed (if equipped); open the fuel shut-off valve. * The spark plug may be faulty; clean, adjust the gap, or replace the spark plug.
  • J
    Jessica MartinezAug 2, 2025
    What to do if my SpeedEPart Agri-Fab 45-0578 loses power or operates erratically?
    • J
      Jesus FarleyAug 2, 2025
      If your SpeedEPart Tiller is losing power or operating erratically, consider the following: * Check if the spark plug wire is loose; connect and tighten it. * Ensure the unit isn't running on CHOKE; move the choke lever to the OFF position. * There might be a blocked fuel line or stale fuel; clean the fuel line and fill the tank with clean, fresh gasoline. * Water or dirt could be in the fuel system; disconnect the fuel line at the carburetor to drain the fuel tank and refill with fresh fuel. * The carburetor might be out of adjustment; adjust the carburetor. * The air cleaner could be dirty; service the air cleaner.
  • D
    Dylan LopezAug 7, 2025
    What to do if my SpeedEPart Agri-Fab 45-0578 unit does not discharge?
    • B
      betty62Aug 7, 2025
      If your SpeedEPart Tiller unit is not discharging, it could be due to the following reasons: * The discharge chute (elbow) might be clogged. Stop the engine immediately, disconnect the spark plug wire, and clean the inside of the housing and discharge chute (elbow). * A foreign object may be lodged in the impeller. Stop the engine immediately, disconnect the spark plug wire, and remove the lodged object. * The Chip-N-Vac cart might be full. Empty the cart.
  • J
    jonesjakeAug 12, 2025
    Why is my SpeedEPart Agri-Fab 45-0578 engine overheating?
    • C
      Christopher BoyleAug 12, 2025
      Your SpeedEPart Tiller engine might be overheating because: * The carburetor is not adjusted properly; adjust the carburetor. * The engine oil level is low; fill the crankcase with the proper oil.
  • M
    morrismicheleAug 17, 2025
    Why does my SpeedEPart Tiller have too much vibration?
    • N
      Natalie HughesAug 17, 2025
      Excessive vibration in your SpeedEPart Tiller may be due to loose parts or a damaged impeller. Stop the engine immediately, disconnect the spark plug wire, and tighten all bolts and nuts. Make all necessary repairs. If the vibration continues, have the unit serviced by an authorized service dealer.
  • A
    Ashley DavisAug 21, 2025
    What to do if the discharge rate slows or the composition of discharged material changes in my SpeedEPart Tiller?
    • G
      Gary ReyesAug 21, 2025
      If the rate of discharge slows considerably or the composition of discharged material changes in your SpeedEPart Tiller, the chipper blades might be dull. Sharpen or replace the chipper blades.

Summary

SAFETY

Warning to Avoid Serious Injury

Important warnings to prevent accidents and injuries during operation and maintenance.

Hazard Alerts

Alerts users to specific dangers such as hot surfaces and rotating blades.

Hardware Package Contents

Carton Contents

ASSEMBLY

Tools and Preparation

Lists necessary tools and outlines initial steps for unpacking and organizing parts.

Assembling the Chip-N-Vac

Provides step-by-step instructions for physically assembling the main components of the Chip-N-Vac.

OPERATION

Before Starting

Pre-operation checks including fluid levels, tire inflation, and cover attachment.

Stopping the Chip-N-Vac

Procedures for safely shutting down the engine and securing the unit.

Starting the Chip-N-Vac

Detailed steps for initiating the engine, including choke and throttle usage.

Using the Chip-N-Vac

Guidelines for operating the unit, including speed, material handling, and emptying the cart.

Using the Chipper Chute

MAINTENANCE

Customer Responsibilities

Outlines the user's role in routine checks and upkeep of the equipment.

Maintenance Schedule and Procedures

Covers pre-use checks, lubrication, engine care, and cleaning for optimal performance.

Service and Adjustments

Sharpening or Replacing Chipper Blades

Step-by-step guide for maintaining the sharpness and condition of the chipper blades.

Removing the Impeller

Instructions on how to safely remove the impeller, including using a special tool if needed.

STORAGE

Troubleshooting

Repair Parts for Cart Body

Repair Parts for Chip-N-Vac

Repair Parts for Impeller Housing

Slope Guide

SpeedEPart Agri-Fab 45-0578 Specifications

General IconGeneral
Product TypeTiller
Model Number45-0578
BrandAgri-Fab
MaterialSteel
ColorBlack
TypeTow Behind
CompatibilityLawn tractors
