2/14

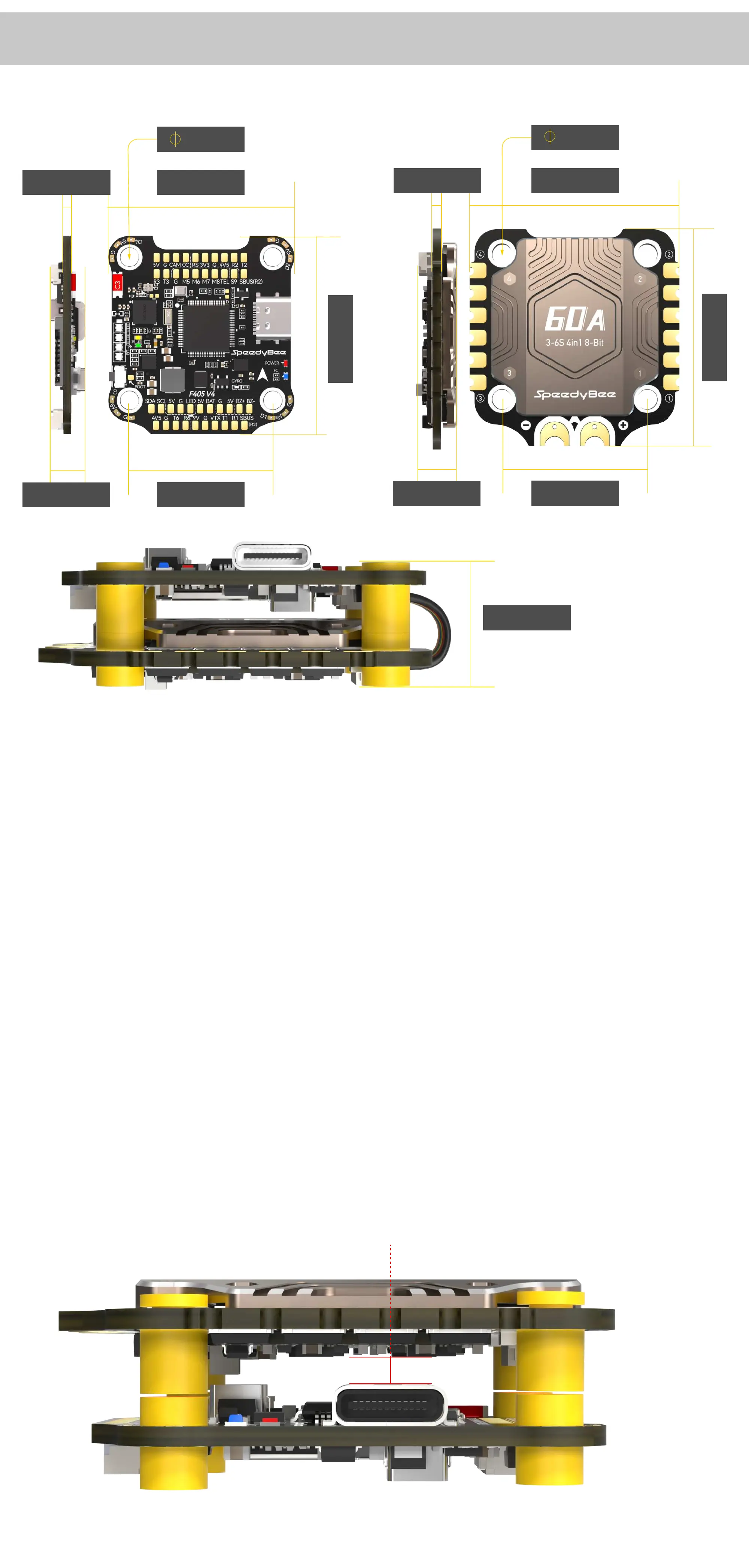

Dimensions
39.4mm1.6mm
7.8mm
41.6mm
30.5mm
4mm
30.5mm
44mm1.6mm
8mm
45.6mm
4mm
16.1mm
Impoant Stack Installation Note
leave enough space
When installing your stack, adhere to the standardmounting
method. The orientation of the gyro andmotor sequence can
be adjusted through settingsIf you opt for an inveed manner,
be extra carefulabout the space between the frame, the FC,
andthe ESC.
It's crucial to swap the silicone grommets when changing the
positions of the FC and the ESC, as illustrated below.
This step is vital to prevent any contact between the FC's USB
inteace and the ESC, which could lead to a sho circuit.
Please be aware that any damage resulting from improper
installation of this nature is not covered under the warranty.
