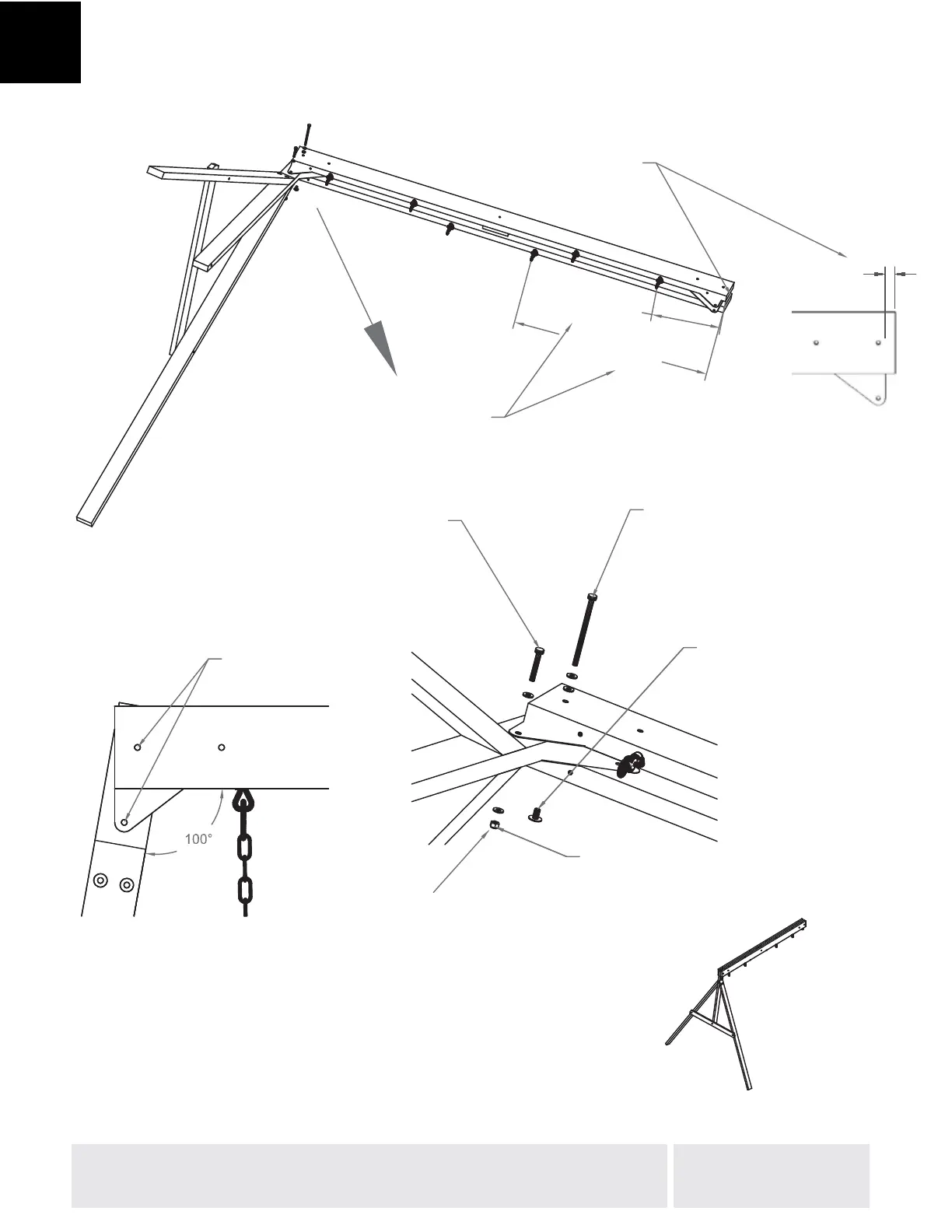

ASSEMBLE FRAMES & BEAM
12
14.00” [35.6]
40.19” [102.1]
5/16 x 4.25” Hex Bolt X2
5/16 Flat Washer X2
5/16 T-Nut X2
5/16 x 2.00” Hex Bolt X2
5/16 Flat Washer X2
Bolts in these holes
5/16 Lock Nut X2
5/16 Flat Washer X2
IMPORTANT PLATES ARE
INSET AT THIS END
IMPORTANT - Note hole locations
IMPORTANT - REFER TO THE PLAY DECK XXL INSTRUCTIONS
FOR ATTACHING THE SWING BEAM TO THE DECK UPRIGHT
1. Locate and install parts as shown.
Beam Assembly X 1
Parts Required:
A-Frame Assembly X 1
IMPORTANT ENSURE THREADS
ARE FLUSH OR EXTEND PAST LOCK NUT
Inset
To Next Page
