Spimbey 2002 - Wall Assembly - Steps 1-4; Wall Construction Steps

1. Layout parts and orient as shown.
2. Attach panels at top and bottom to square wall in the order shown.
3. Attach other panel as shown.
Parts Required:
157 X2
159 X1
160 X1
161 X2
167 X2
183 X1
WALLS
1
WALLS
2
1. Layout parts and orient as shown.
2. Attach panels at top and bottom to square wall in the order shown.
3. Attach other panels as shown.
35" [89.9]
35" [89.9]

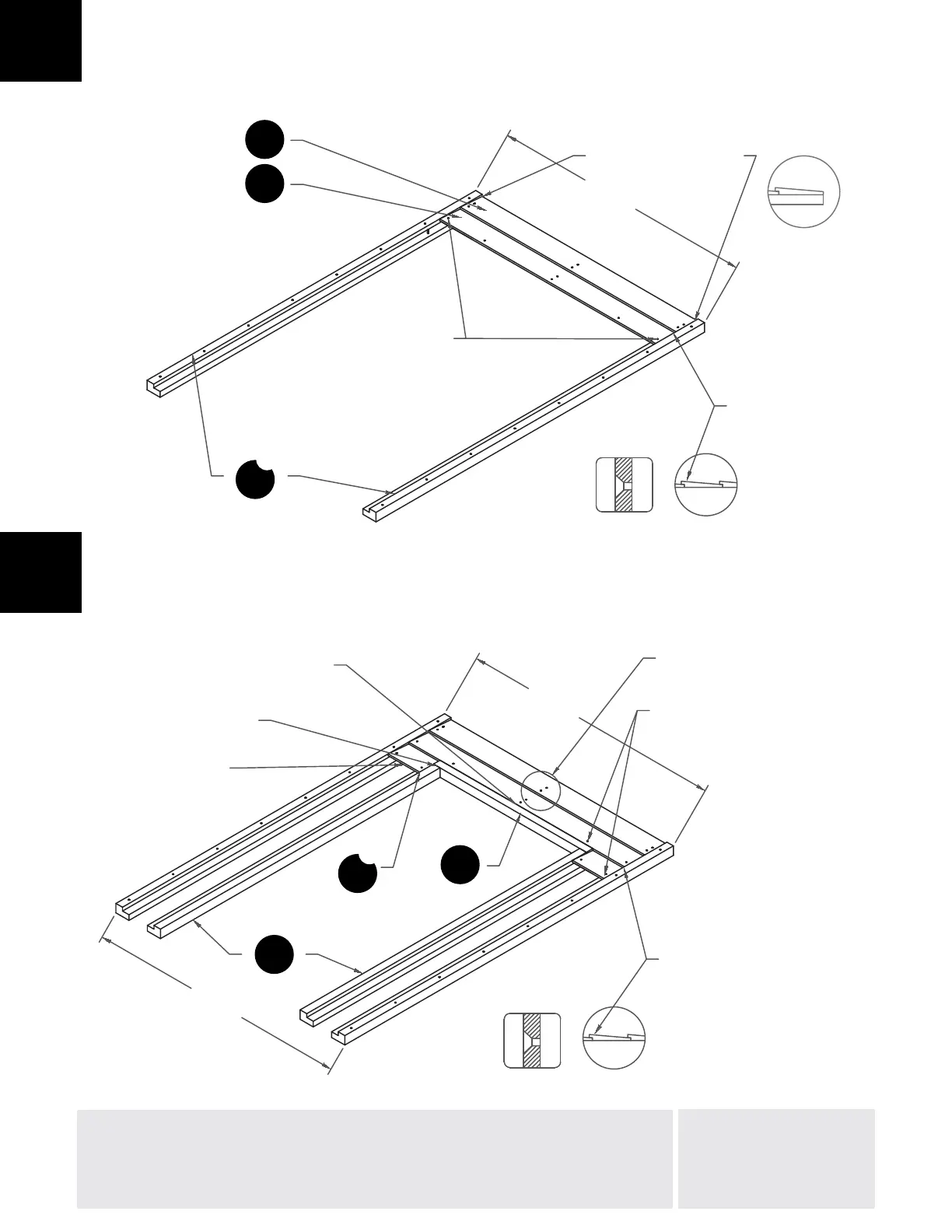

STEP 1
Locate 183 flush to panel edge.
Part 183
1
Panels are flush to frame
at ends
Attach panels with
#8 x 1" Wood Screw X6
SCREWS FLUSH
Install panel
against groove
STEP 2
Place 167 flush to 183
STEP 3
Place 161 onto frames
Install panel
against groove
SCREWS FLUSH
Part 167
X2
35 [8.9]
Part 161
X2
STEP 4
All parts flush and tight to each
other use #8 x 1" Wood Screw X7
to secure panels to frame
No screws in these (3) holes
2
Parts Required:
157 X2 161 X2
159 X1 167 X2
160 X1 183 X1
1. Layout parts and orient as shown.
2. Attach panels at top and bottom to square wall in the order shown.
3. Attach other panels as shown.
Part 159
Part 160
Part 157
X2
35 [.9]
35 [8]
STEP 1
Locate 183 flush to panel edge.
Part 183
1 WALLS
Panels are flush to frame
Attach panels with
#8 x 1" Wood Screw X6
SCREWS FLUSH
Install panel
against groove
STEP 2
Place 167 flush to 183
STEP 3
Place 161 onto frames
Install panel
against groove
SCREWS FLUSH
35" [89.9]
STEP 4
All parts flush and tight to each
other use #8 x 1" Wood Screw X7
to secure panels to frame
No screws in these (3) holes
2
Parts Required:
157 X2 161 X2
159 X1 167 X2
160 X1 183 X1
159
183
167
160
157
2x
161
2x
