XXC0812 / XXB0812
Model Line Dia Maximum
SWL
Weight
without
fastners
Weight
with
fastners
Standard
Fastners
(supplied)
Fastners
(side
mounting)
XX0812 8-12mm
(5/16-1/2”)
1800kg
(3970lbs)
1.05kg
(2.3lbs)
1.12kg 2 x M8 Not supplied
see page 30
XXB0812 8-12mm
(5/16-1/2”)
2350kg
(5180lbs)
1.05kg
(2.3lbs)
1.12kg 2 x M8 Not supplied
see page 30
XXC0812 8-12mm
(5/16-1/2”)
2300kg
(5070lbs)
0.84kg
(1.85lbs)
0.86kg
5 x M6
Titanium 95 GS
-
XX0812
/HP & /HS
8-12mm
(5/16-1/2”)
1800kg
(3970lbs)
1.05kg
(2.3lbs)
1.12kg 5 x M6 5 x M6
XXC0812
/HP & /HS
8-12mm
(5/16-1/2”)
2300kg
(5070lbs)
0.85kg
(1.87lbs)
0.87kg -
5 x M6
Titanium 95 GS
XXC0812
/HBP & /HBS
8-12mm
(5/16-1/2”)
2300kg
(5070lbs)
0.85kg
(1.87lbs)
- - Bond
ZS0810 8-10mm
(5/16-3/8”)
1500kg
(3310lbs)
0.7kg
(1.55lbs)
0.77kg 3 x M8 6 x M6
ZS1214 12-14mm
(7/16-9/16”)
2200kg
(4850lbs)
1.05kg
(2.3lbs)
1.19kg 4 x M8 6 x M6
use A4-70
ZS1618 16-18mm
(5/8-11/16”)
4000kg
(8820lbs)
2.0kg
(4.4lbs)
2.36kg 4 x M10 6 x M8
use A4-70
ZS1014C 10-14mm
(3/8-9/16”)
4000kg
(8820lbs)
0.65kg
(1.45lbs)
0.89kg 4 x M10 Use
ZS1014B
ZS1618C 16-18mm
(5/8-11/16”)
6000kg
(13230lbs)
1.15kg
(2.5lbs)
1.51kg 6 x M10 Use
ZS1618B
ZS1824C 18-24mm
(11/16-15/16”)
8000kg
(17640lbs)
1.75kg
(3.85lbs)
2.36kg 10 x M10 Bond
ZS2632C 26-32mm
(1-1 1/4”)
12000kg
(26460lbs)
5.1kg
(11.24lbs)
5.95kg 14 x M10 -
ZS1014B
Bonded
10-14mm
(3/8-9/16”)
4000kg
(8820lbs)
0.63kg - - -
ZS0810/
OPEN
8-10mm
(5/16-3/8”)
1200kg
(2650lbs)
0.9kg
(1.98lbs)
- - -
ZS1014/
OPEN
10-14mm
(3/8-9/16”)
1800kg
(3970lbs)
1.2kg
(2.65lbs)
- - -
ZS1418/
OPEN
14-18mm
(9/16-11/16”)
3200kg
(7040lbs)
1.9kg
(4.19lbs)
- - -
ZS1824/
OPEN
18-24mm
(11/16-15/16”)
5200kg
(11440lbs)
4kg
(8.8lbs)
- - -
ZS2632/
OPEN
26-32mm
(1-1 1/4”)
7800kg
(17160lbs)
6.1kg
(13.45lbs)
- - -
ZS1618B
Bonded
16-18mm
(5/8-11/16”)
6000kg
(13230lbs)
0.91kg - - -

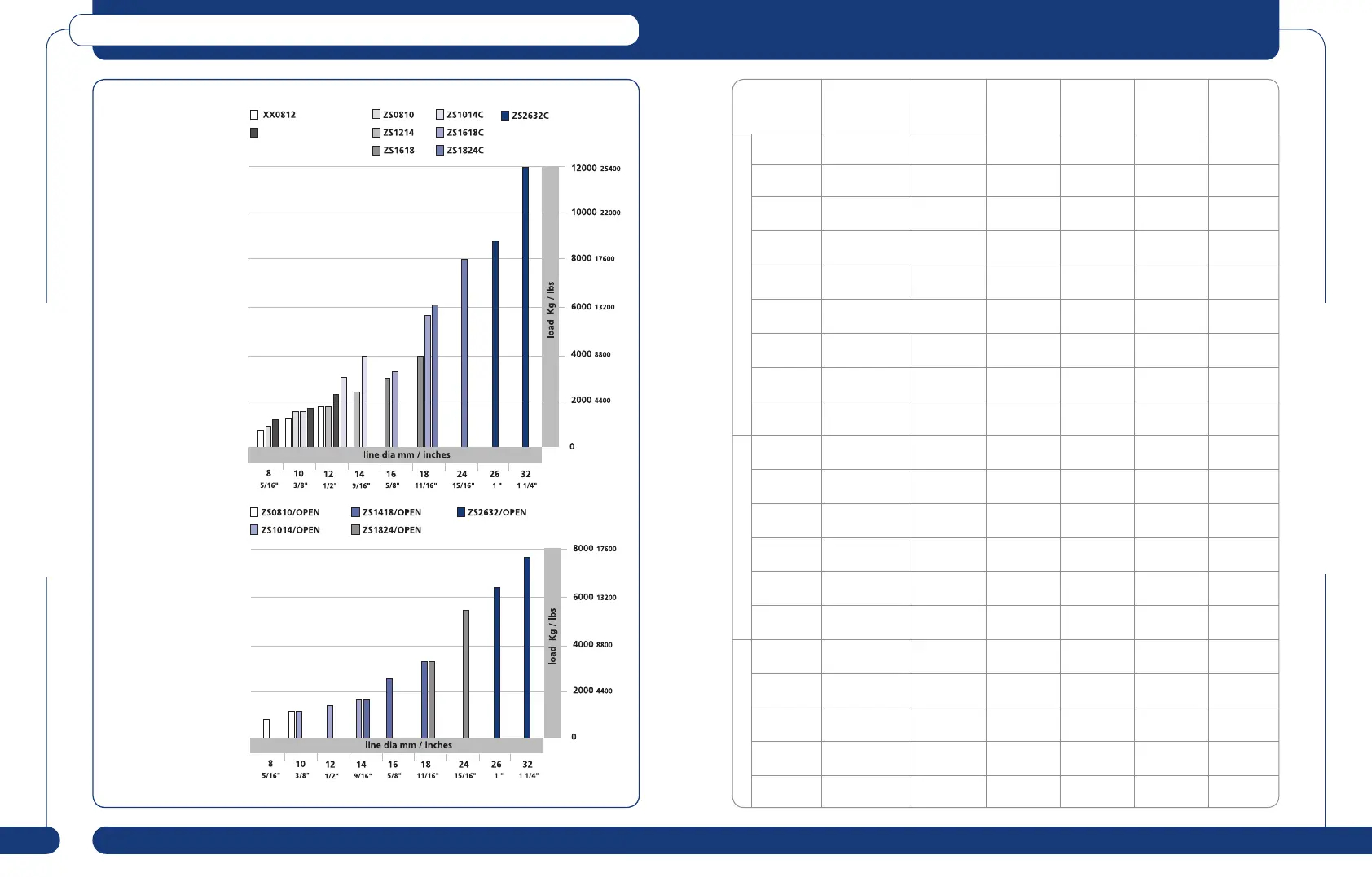

AlloyCarbonOpen/Mobile
