Spirax Sarco AEL5951 - Wiring Diagrams; AEL5951 Auxiliary Switches Wiring; AEL5952;AEL5953 Feedback Potentiometer Wiring; AEL5953 Tandem Potentiometer 2 nd Output

Accessories for the AEL5 Series of Electric Linear Actuators
TI-P358-28
CH Issue 3
Page 2 of 3
AEL5951 auxiliary switches
X6
1 2 3 4 5 6
Retract
switch
Extend
switch

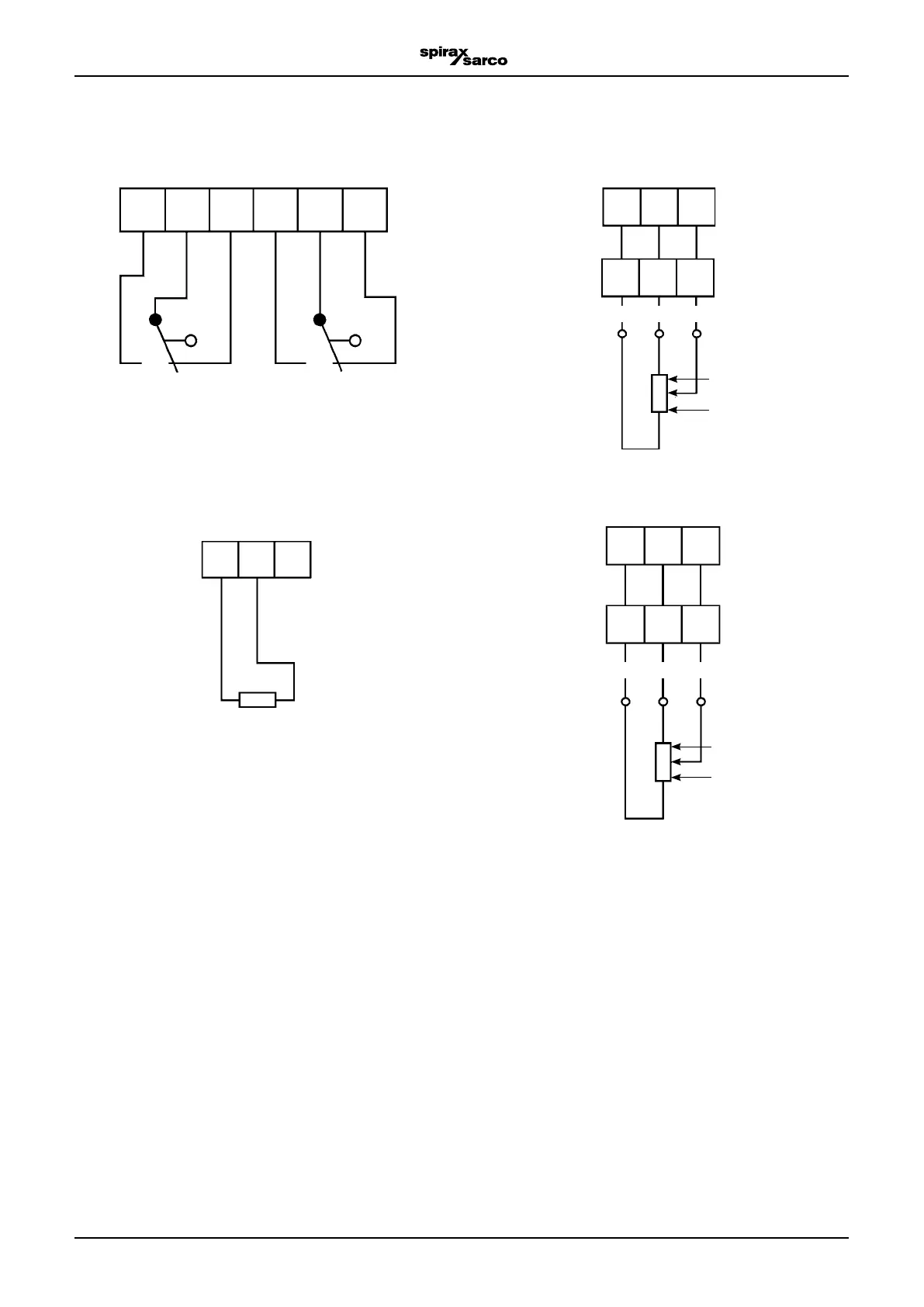

Wiring diagrams
(Note: X0, X4, X5, X6, X8 and X9 refer to termination board location)
AEL5952 feedback potentiometer and
AEL5953 1st output from tandem potentiometer
16 14 15
1 2 3
X4
X11
Extend position
Retract position
Brown Green White
AEL5953
2nd output from tandem potentiometer
1 2 3
X0
Extend
position
Retract
position
Anti-condense heater
AEL5954 110 - 250 V and AEL5956 12 - 36 V
L N
1 2 3
1 2 3
X9
Brown Green White
