IM-P382-01 CH Issue 4
10
6. Commissioning
For the following instructions you should make reference to Figure 6. The sensor should be
set on site to the midway mark (1). Make any adjustments to the desired setting with a
suitably sized screwdriver engaged in the adjustment drive (7) on the end of the indicator dial.
Turning clockwise will lower the temperature, anticlockwise will increase it. After setting
the plant to work, compare the thermometer reading with the scale reading on the temperature
control reading. This may be found to differ by a few degrees, if precise control is required it
can be adjusted by resetting the scale as follows:-
1. Remove the transparent front cover (2) of the indicator head and turn the indicator (3)
manually until it corresponds to the actual temperature.
2. Replace the transparent cover (2).
3. Reset the set temperature to the desired temperature.
4. Replace the transparent cover and tamper-proof plug.

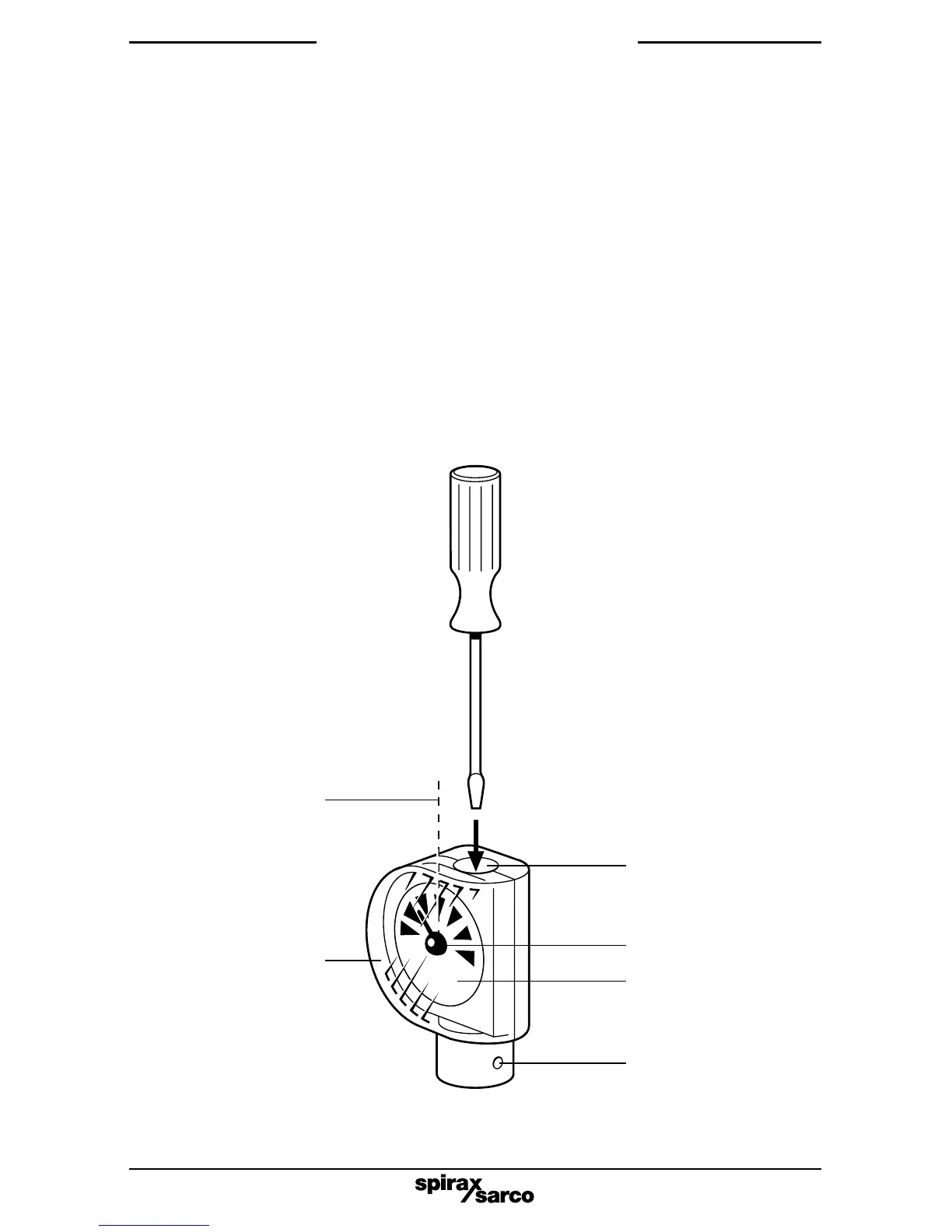

Fig. 6
1
2
7
6
3
4
5
