Spitfire Aeronaut - Hull Assembly Steps; Hull Bottom Panel Assembly

9
11
8
11
8

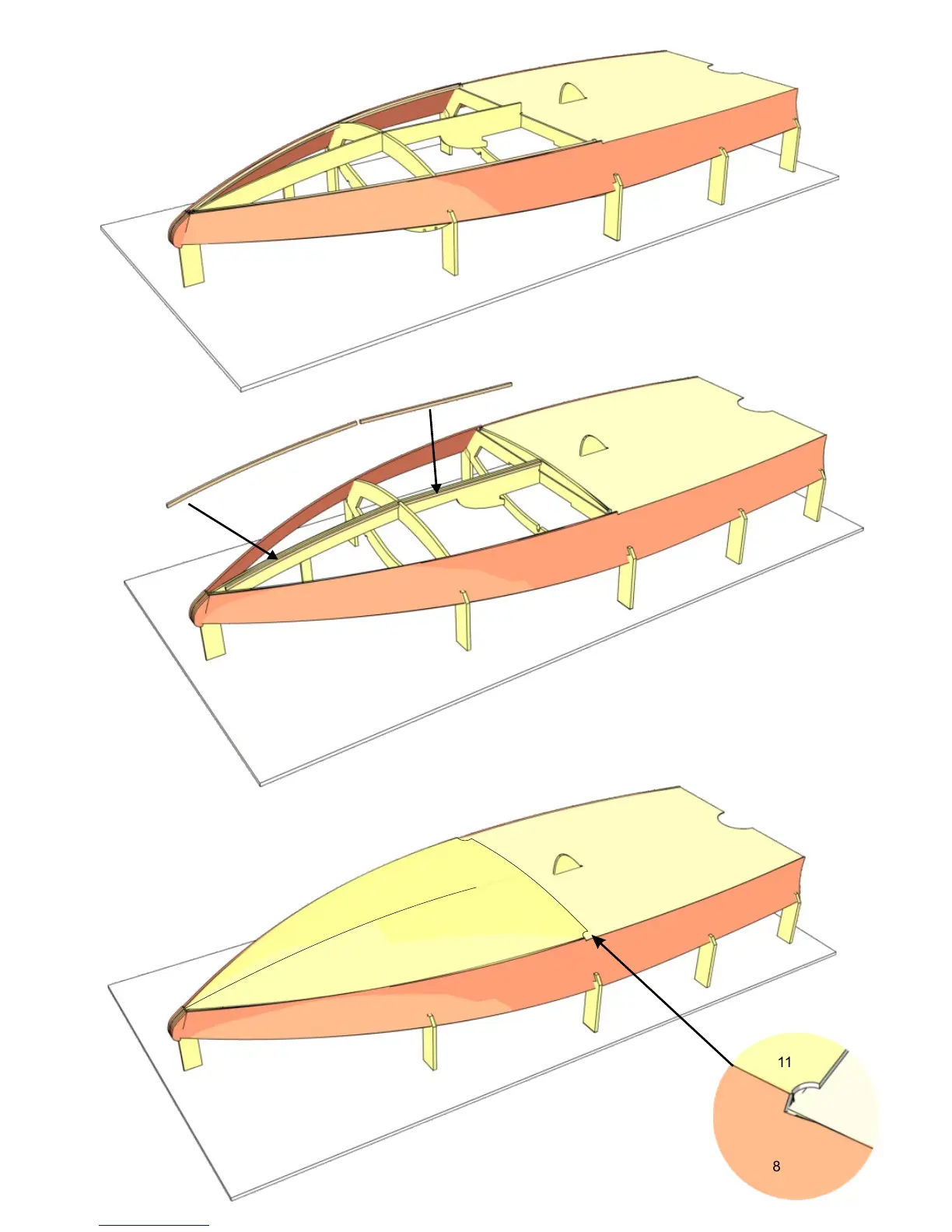

Glue the aft bottom panel 9 to
frames 1 to 3.
1
2
3
Glue the half-frame 10 to the bottom
panel 9, flush with frame 3 and the
step in the hull sides 8.
Glue the reinforcements 5.1 + 5.2 to
both sides of the keel 5.
Glue the forward bottom panel 11
to frame 10, aligning it with the
step in the hull sides 8, then glue it
to the stringers 7.
10
9
3
8
5.1
5.2
5
4
5
6
