Using the tool
Fitting the charger disc
Unlock the cover (see fig. 1).
Put the disc correctly into its housing
Close the cover
Inserting the stud
(without a magazine)
Insert the stud in the stud guide until it is held by the plastic guide
(see fig. 2).

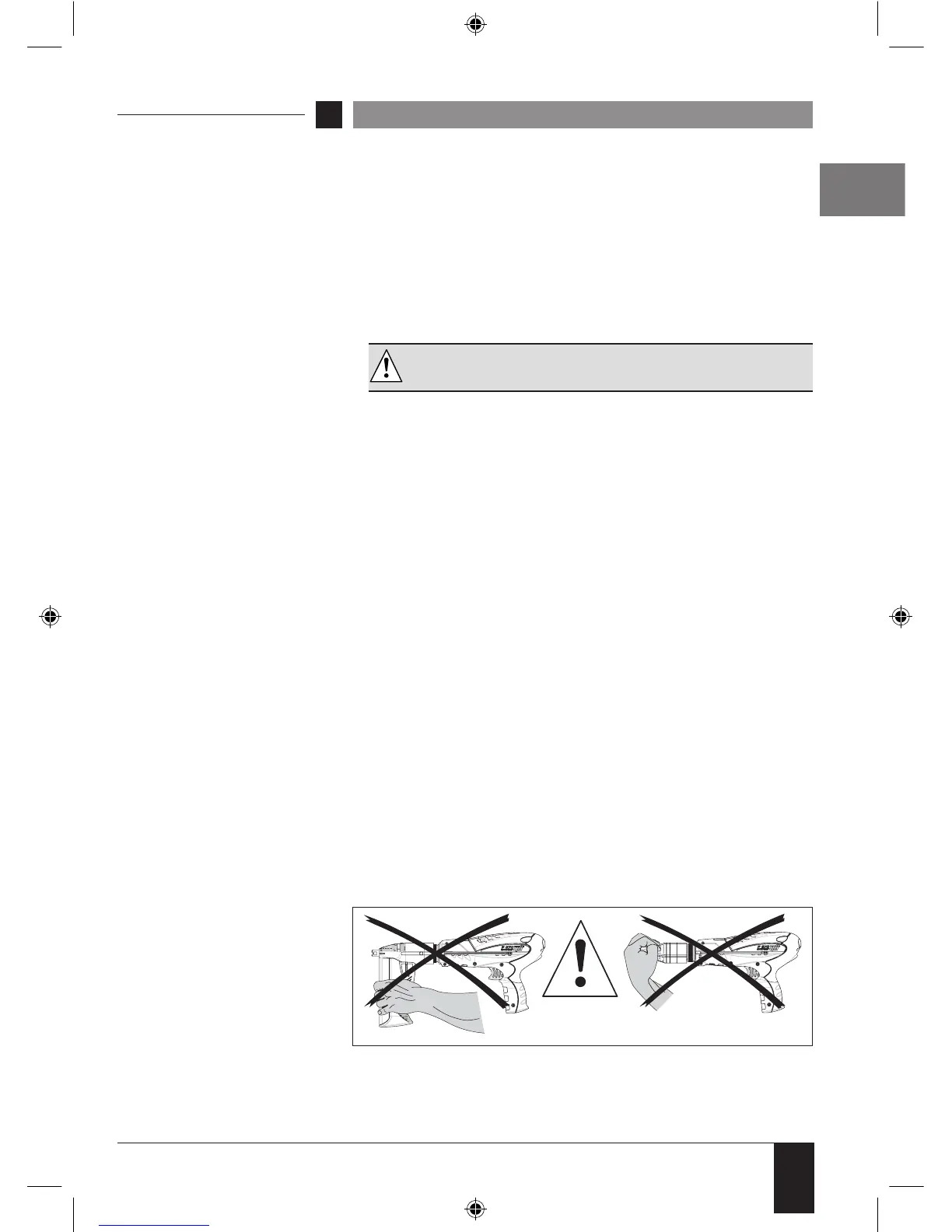

Never use the flat of the hand to push
the stud back
Firing
Apply the tool at right angles to the material (see fig. 5).
Hold the tool with both hands, exerting forward pressure, and
press the trigger. .
Pin indicating presence
of studs in the magazine
When one or more studs are in the magazine, it is impossible to
insert another strip (see fig. 3).
The projecting pin indicates the presence of studs in the
magazine
Inserting a strip of studs
(with a magazine)
Unlock the magazine’s cover (see fig. 4).
Pull the magazine cover back
Insert the strip of studs
Close the magazine cover (automatic locking)
