Checking the wear parts
The tool is equipped with a rubber spring (3) (for the return of
the inertia block), an inertia block + insulation ring assembly (2)
(see fig. 8).
These parts must be checked at regular intervals
Wear part Check
Spring (3) - length (min. 161 mm)
- Condition (cuts, wear, etc.)
Insulation ring
+
inertia block (2)
- Thickness (mini 4 mm)
- Condition (cuts, wear, etc.)
- No chipped part on the inertia block
Using the tool
Choosing the charge
(see fig. 6)
- 031740 brown 6.3/10 disc charge - very light
- 031600 green 6.3/10 disc charge - light
- 031700 yellow 6.3/10 disc charge - medium
- 011658 red 6.3/10 disc charge - heavy
Tips :
Choose according to :
• the nature and hardness of the support material
• the length of the stud
• the nature of the part to be fixed
Proceed by successive trials, beginning with the lightest strength,
then increase if necessary.
If the charge has misfired, wait for 20 seconds,
keeping the tool on the work surface, then stop
pressing in order to reset the percussion system and
to resume firing.

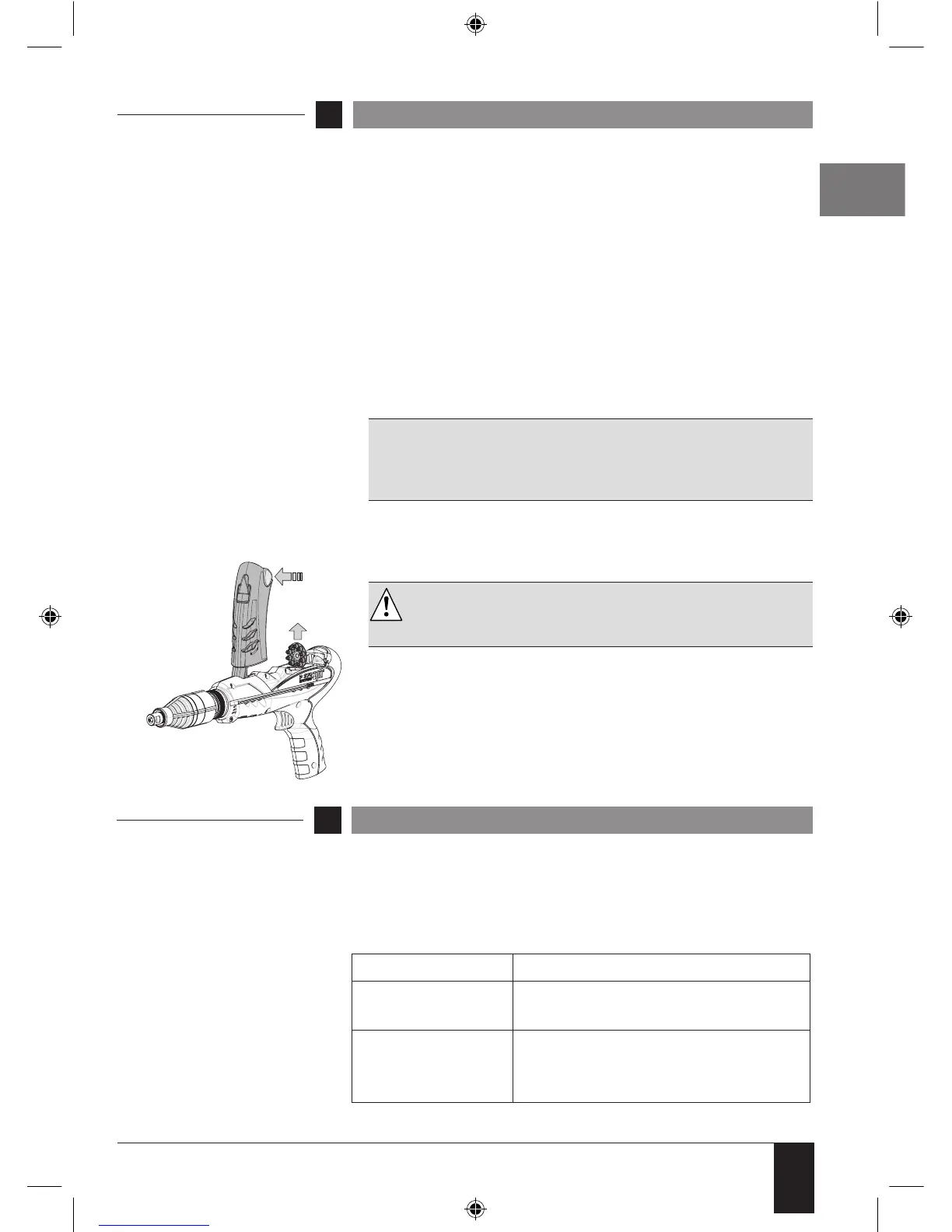

Unlock the cover
Remove the disc
The tool must always be emptied after use and
before storage in the box. Partially used charger
discs must be kept for later use.
Removing the charger
disc
Choosing the strength
(see fig. 7)
