Model : MD - 400.2

B. VARIABLE “LPF” LOW-PASS FILTER

MONO (40Hz-180Hz):

Low-Pass filter circuitry of SPL Dynamics Class D Amplifiers is always activated

because these models are designed only to subwoofer use. Low-Pass filter

allows frequencies below (40-180Hz) to be amplified.

2/4CH (50Hz-4KHz):

“12/24dB” activates the Low-Pass filter circuitry, thus allowing frequencies

below (50Hz-4KHz) to be amplified. You can use this filter as :

• Subwoofer Low-Pass filter

• Full-Active system’s Midbass Low-Pass filter

• Full-Active system’s Midrange Low-Pass filter

For normal full-range frequency speaker configuration, as component system with

passive crossover or coaxial speakers, set to “OFF”.

5 6

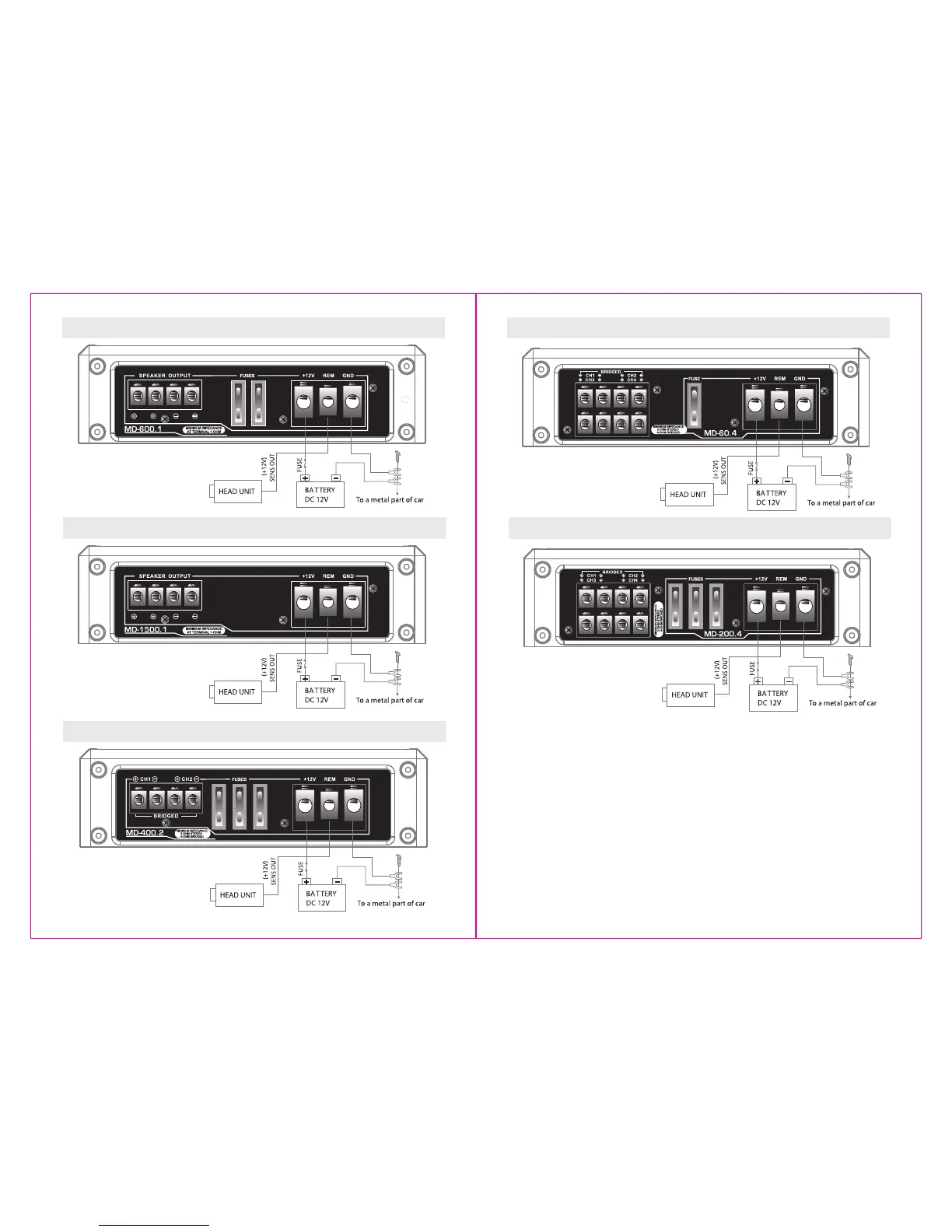

Model : MD-600.1
