Sports Attack I-HACK ATTACK - Exploded View

I-HACK ATTACK™ BASEBALL PITCHING MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
14

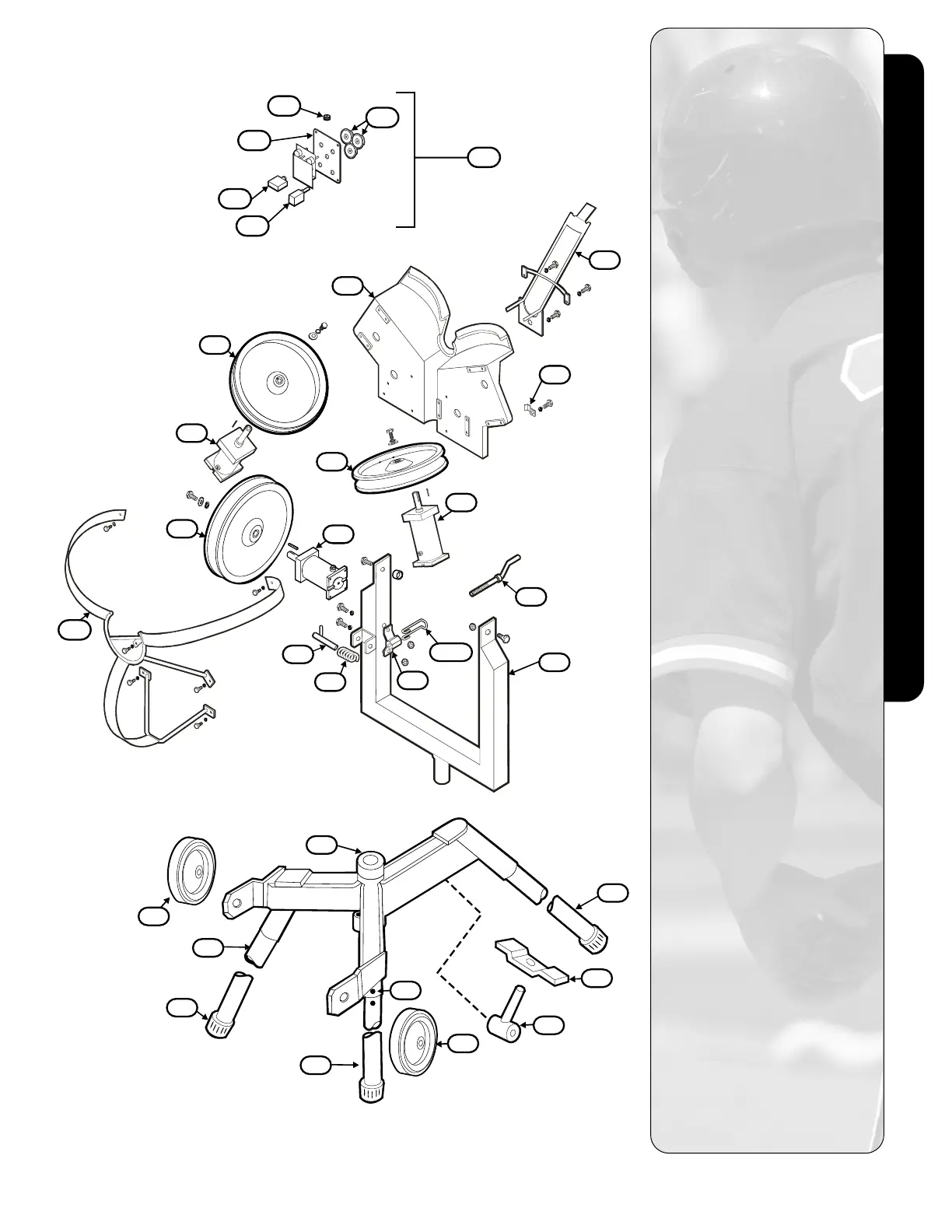

EXPLODED VIEW
Exploded View
1 Cane Tip
2 Leg - Standard Size (ea.)
5 Undercarriage
13 Horizontal Swivel
Lock Handle
14 Swivel Lock Pivot
17 Snap-Button
19 Travel Wheel (with axle,
bolt, nut, washers)
21 Yoke
26 Pin, Travel Lock
27 Spring, Travel Lock
30 Fitting, Elevation Control
30B Tension Spring,
Elevation Control
31 Handle, Elevation Control
34 Main Casting,
Throwing Head
35 Clamp, Cable
36 Hinge Assembly,
Throwing Head
37 Motor, Variable
Speed 90V
38 Throwing Wheel
39 Ball Chute
43 Wheel Guard (ea.)
49 Grommet, Wiring
50 Plate, Travel Lock, and
Elevation Control
60 Plate, Control, Panel
Cover
61 Knob, Speed Control
63 Controller Assembly
64 Safety Reset
65 On/Off Switch
1
2
5
21
31
37
37
37
38
38
34
35
39
38
30B
30
27
26
2
17
2
19
14
13
43
19
63
60
49
61
64
65
Figure 18
