Sprayers Plus 105Ex - Step 4: Connect Output Hose

After the Charging Dock and the Pump Module are placed into
the chamber, connect the hoses.!
It is easier to connect the Output Hose first:
Get the Plastic Nut and the Plastic Insert ready, feed the hose
through the hole on the bottom of the chamber and follow the
instructions in the next page.

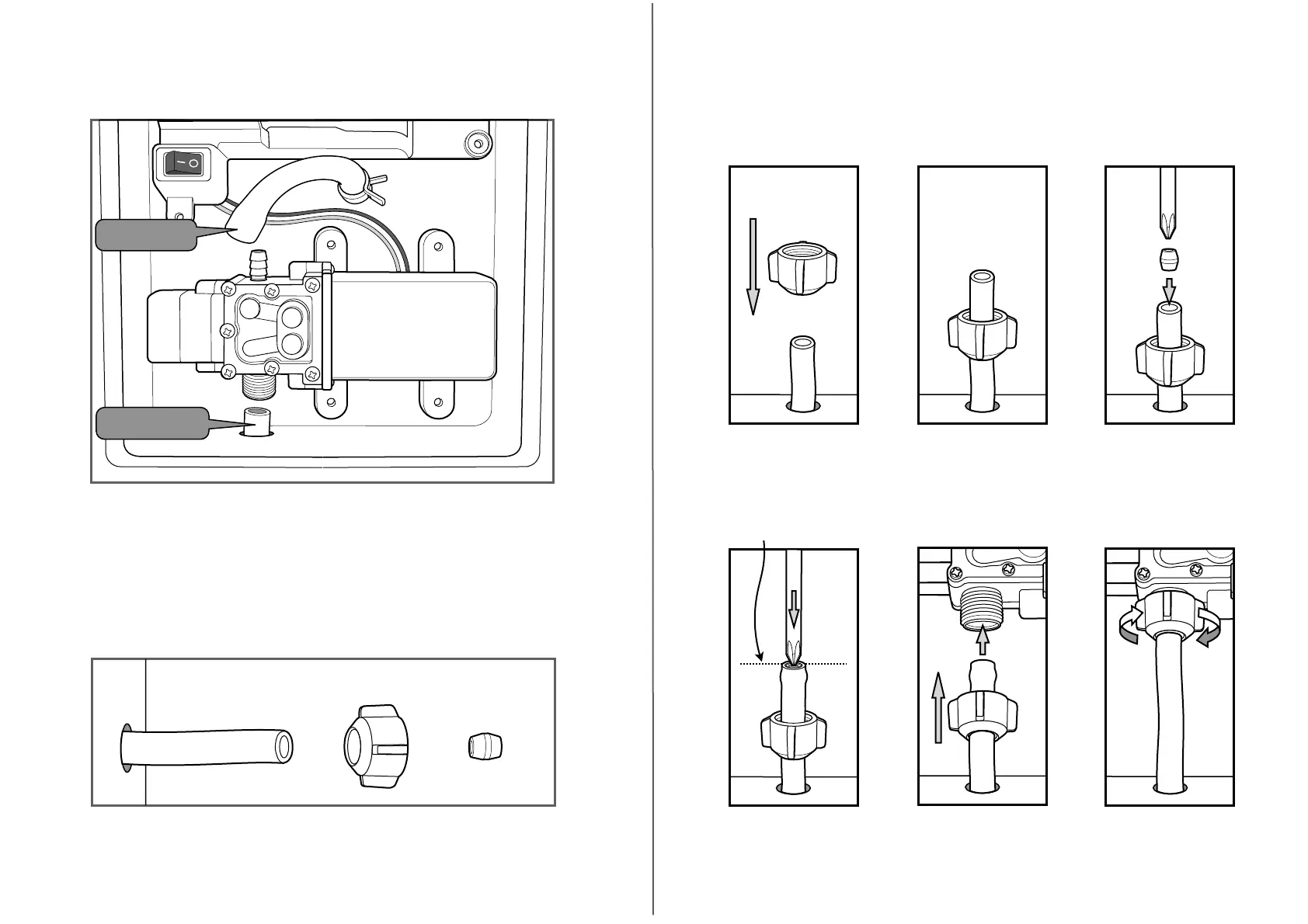

1) Slide the plastic nut through the hose.
2) Push the plastic
insert into the hose.
3) The plastic insert
need to be pushed in
till it is flush to the
edge of the hose.
4) Insert the hose into
the output pipe of the
pump: push until it
stops going further.
5) Slide the plastic nut
towards the pump and
tighten it (onto the
output pipe).
Connecting the Output Hose to the Pump
Plastic Nut
Plastic
Insert
Hose
STEP-4: CONNECT OUTPUT HOSE
Input Hose
Output Hose
