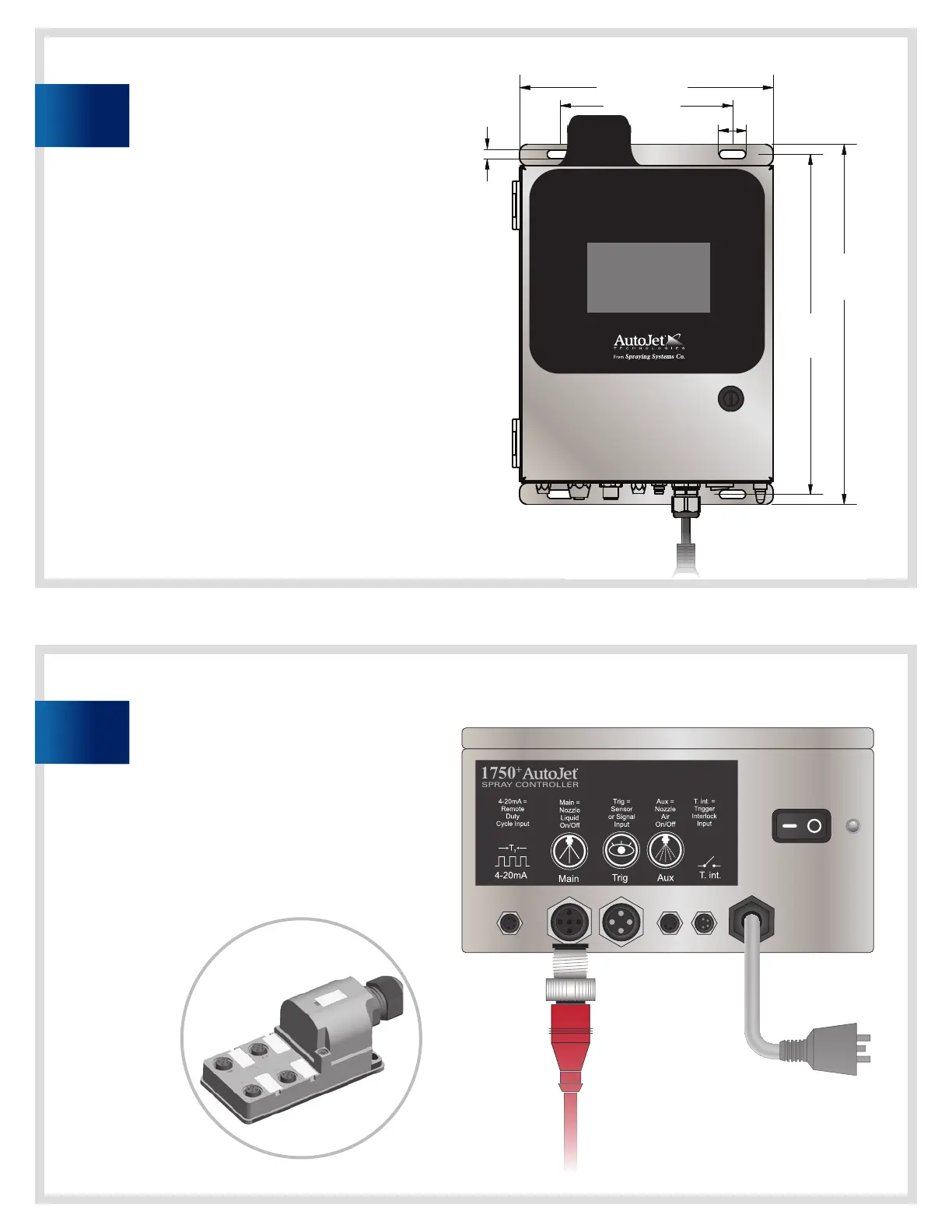

1.
POSITION OR MOUNT
THE PANEL
Mount the panel to a wall in a location that is close
to your nozzles.
Install wall anchors that are designed to support at
least 50 lbs. (90.7 kg) according to the anchor
manufacturer’s specifications.
The mounting holes are on 5-7/16" (138 mm) centers and
are made for 1/4" (6 mm) screws with 3/8" (10 mm) diameter
screw heads.
2.
CONNECT ELECTRICAL
SPRAY NOZZLES
Connect electrical spray nozzle cable to “Main”
connection. For multiple nozzles, connect nozzles to a
junction block and then connect the junction block cable
to “Main” connection. (Can connect up to 10 nozzles.)
1750+ Spray Control
5.44" (138 mm)
8.00" (203.2 mm)
0.27"
(6.8 mm)
10.72"
(272 mm)
11.34"
(288.1 mm)
0.83" (21 mm)
4 Places
Junction Block
To Next Page
