SprayTECH EP2105 - Fluid Section Assembly; Repair Kits

24

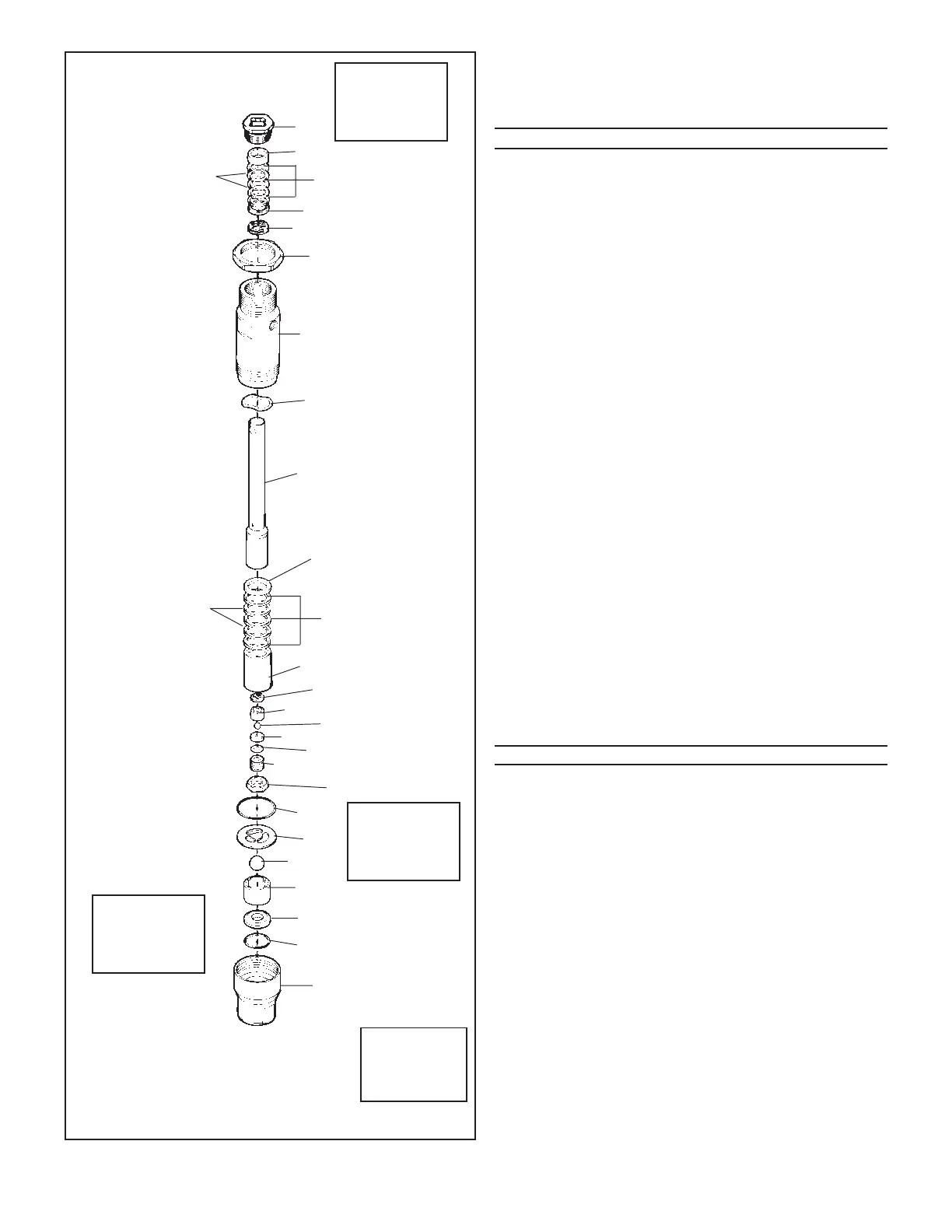

Figure 21 - Fluid Section
NOTE:
#20 Torque
250 IN. LBS.
NOTE:
#28 Torque
40 FT. LBS.
REPAIR KITS
KIT NO. DESCRIPTION
0294905 Packing Kit
(* Items Included)
0294689 Valve Kit
(# Items Included)
*2
*4
*14
ITEM PART NO DESCRIPTION QTY.
1 0294319 Packing nut 1
2 0294377 Adapter 1
3 08180 Packings, UHMWPE 3
4 00078 Packings, leather 2
5 0294376 Upper male adapter 1
6 0294379 Wave spring 1
7 00302 Locknut 1
8 0294318 Cylinder 1
9 13364 Wave spring 1
10 0294316 Piston rod 1
11 0294326 Lower male adapter 1
12 08070 Lower packings, UHMWPE 3
13 09091 Lower packings, leather 2
14 0294375 Lower female adapter 1
15 13458 Upper ball stop disc 1
16 13357 Upper ball cage 1
17 50164 Upper ball 1
18 13359 Upper ball seat 1
19 09446 Washer 1
20 13481 Piston seat retainer 1
21 13482 Jam nut 1
22 13381 O-ring 1
23 13380 Lower ball stop disc 1
24 51519 Lower ball 1
25 00311 Lower ball cage 1
26 00310 Lower ball seat 1
27 00203 O-ring 1
28 13403 Inlet valve holder 1
0294133 FLUID SECTION
ASSEMBLY FIGURE 21
NOTE:
#1 Torque
25 FT. LBS.
NOTE:
#21 Torque
200 IN./LBS.
1
*3
28
*#27
25
*#24
23
*#22
21
20
#18
*#17
16
15
*13
*12
*11
10
*9
8
7
*6
*5
*#19
# 26
