SprayTECH EP2510 - Page 31

29
Item Part No. Description Qty.

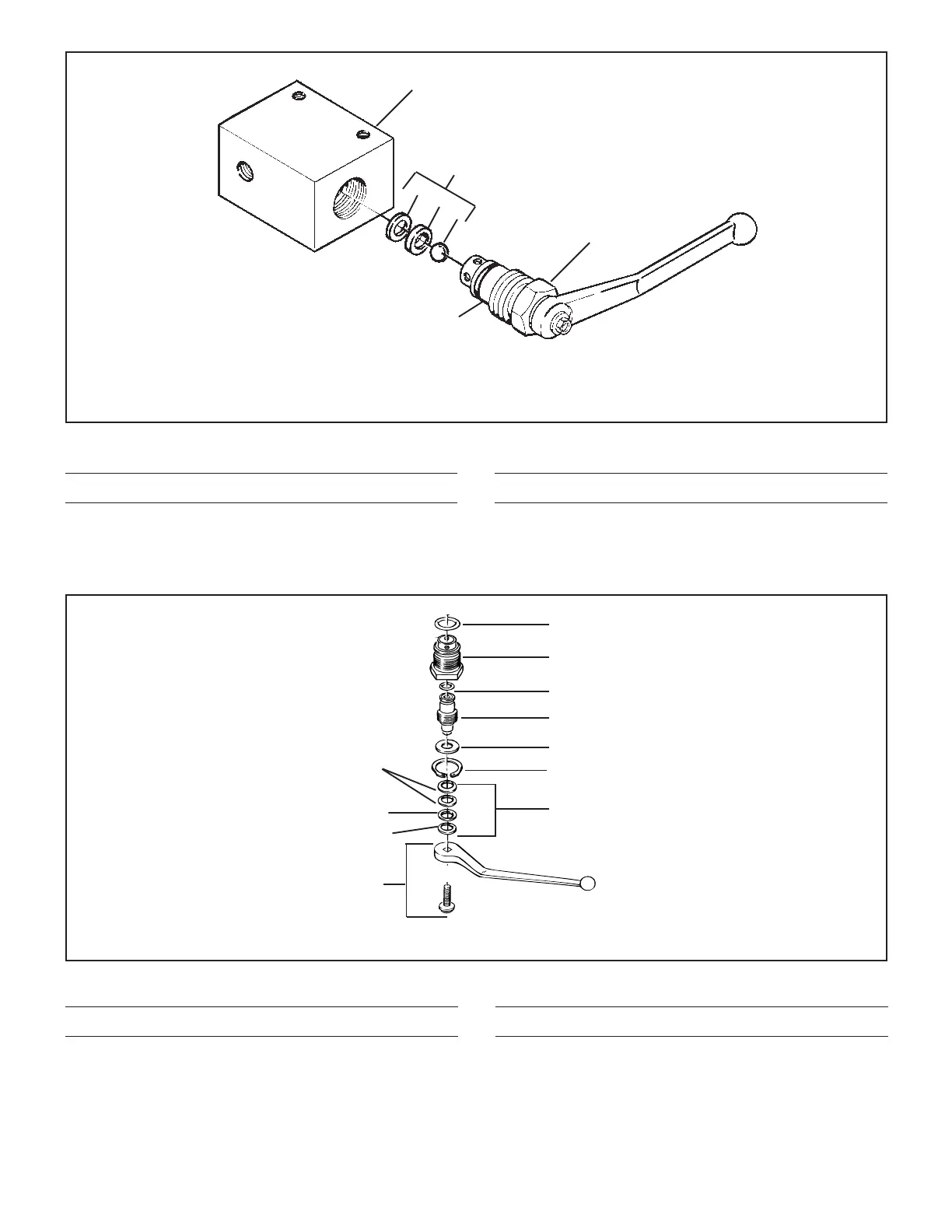

DUMP VALVE ASSEMBLY - FIGURE 27
Figure 27 - Dump Valve Assembly
Item Part No. Description Qty.
1
2
3
4
5
1 0294502 Housing, Dump Valve 1
2 0294966 Repair Kit 1
3 0294499 Seal, Dump Valve 1
4 0294516 Seat, Valve 1
5 9841502 Ball, 10mm 1
6 0294214 Dump Valve Cartridge 1
6
∆
1
∆
2
See Note Page 28
{
Figure 28 - Dump Valve Cartridle
Item Part No. Description Qty.
Item Part No. Description Qty.
DUMP VALVE CARTRIDGE - FIGURE 28
5 0294501 Washer, Dump Valve 1
6 9822516 Ring, Retainer 1
7 0294788 Washer, Kit, Bellville 4
8 0291512 Handle, Dump Valve 1
1 9871046 O-Ring 1
2 0294498 Body, Dump Valve 1
3 9871045 O-Ring 1
4 0294500 Stem, Dump Valve 1
1
2
3
4
5
6
7
8
Convex
Concave
Convex
