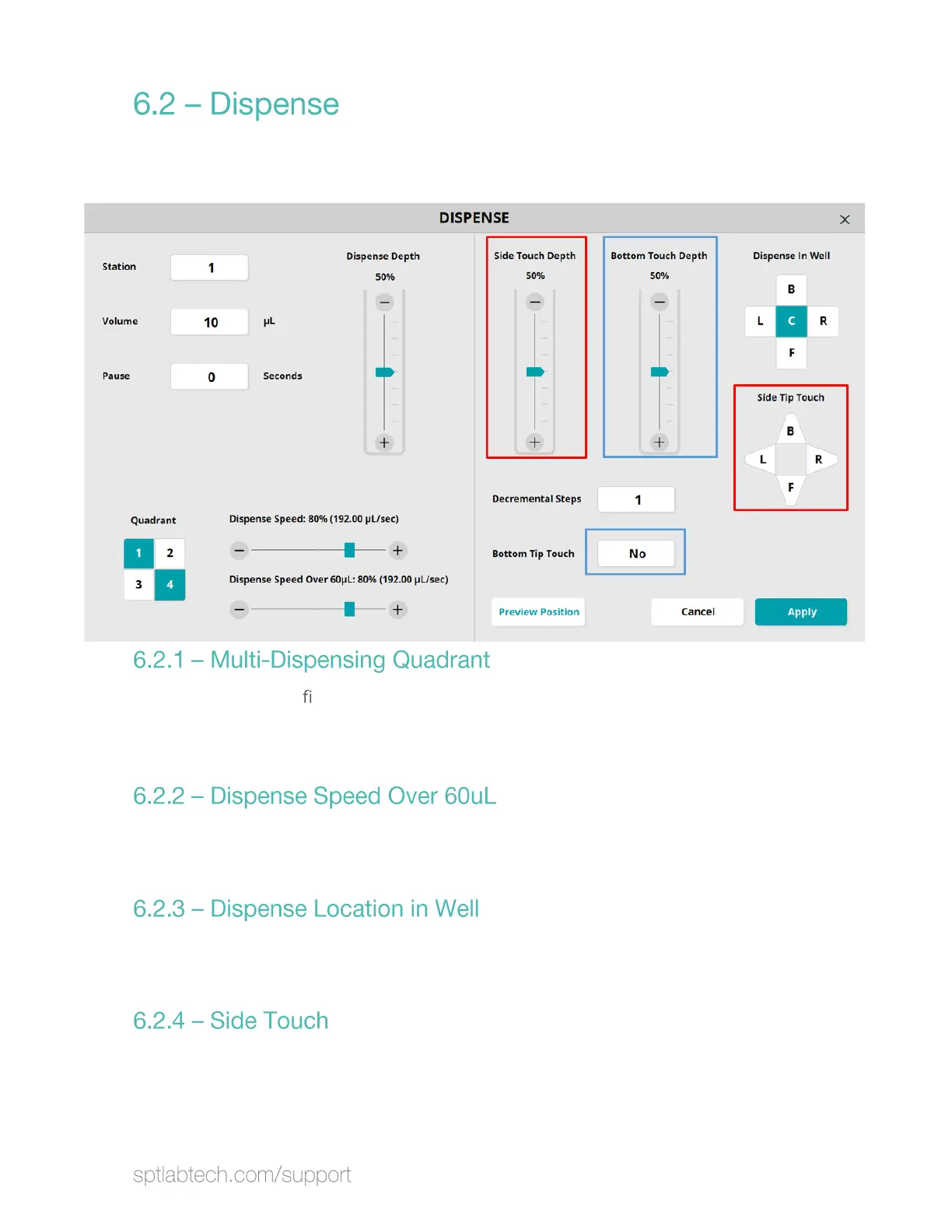

Below shows the Dispense menu for 96-Channel tip with 384 Well plate. The red and
blue boxes indicate that the same color features are operate together.
Noticed in the above gure, multiple quadrants are selected. Only Dispense function
can perform multi-selecting quadrants. The instrument will be dispensing the volume
of 10uL in both quadrants, so it will dispense total of 20uL.
There are two dispensing speeds for dispensing. One is for the volume over 60uL
and the other one is for the volume less than 60uL.
User can only select one of the sides under “Dispense in Well” on the right. The
machine will dispense the liquid at the selected side.
The “Side Touch Depth” will be operated only if the user selects one or more sides
under “Side Tip Touch”. Side Touch Depth is the depth where the tips touching the
side for 96 or 384 well after dispensing. User can multi-select the Side Tip Touch with
the order of left, right, front, and back.
