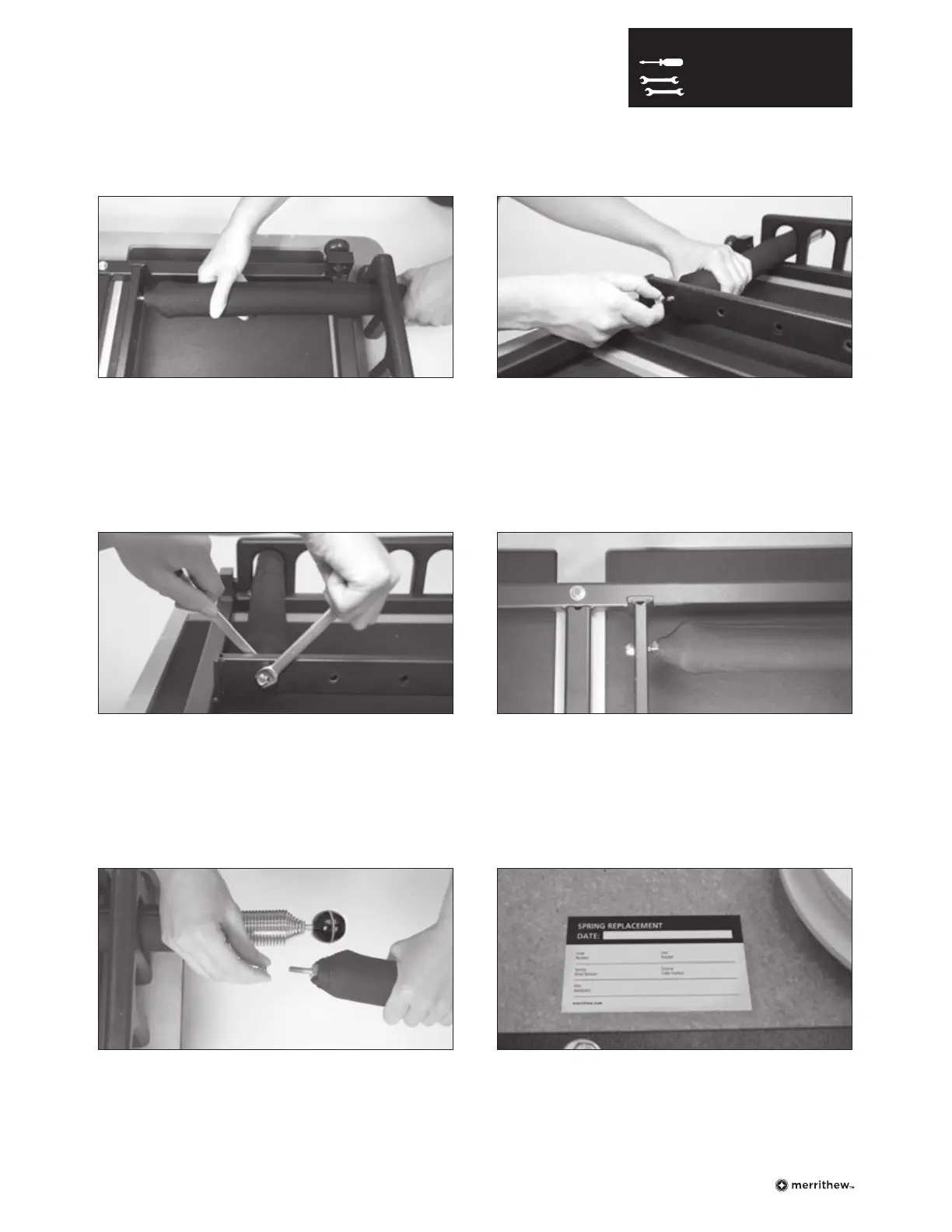

3. Insert spring bolt through the corresponding hole on spring
anchoring bar.
5. Hold fixed cube nut in place with 7/16" wrench.
Using second wrench, tighten the new nylon locknut.
CAUTION: Do not overtighten.
7. Repeat steps 1 to 6 for remaining springs.
4. Thread nylon locknut into spring bolt.
NOTE: Do not reuse old nylon locknuts.
6. Both nylon locknut and fixed cube nut should be snug against
the spring anchoring bar. Once secure, give the nylon locknut an
additional 1/4 turn clockwise.
CAUTION: Do not overtighten.
8. Affix the sticker provided with your spring replacement
package to the underside of the Reformer carriage.
Springsshould be replaced every 24 months, or as needed
within that period.
Required Tools
1x Phillips Screwdriver
2x Open-End Wrenches
1/2" x 7/16" (13 mm x 11 mm)
