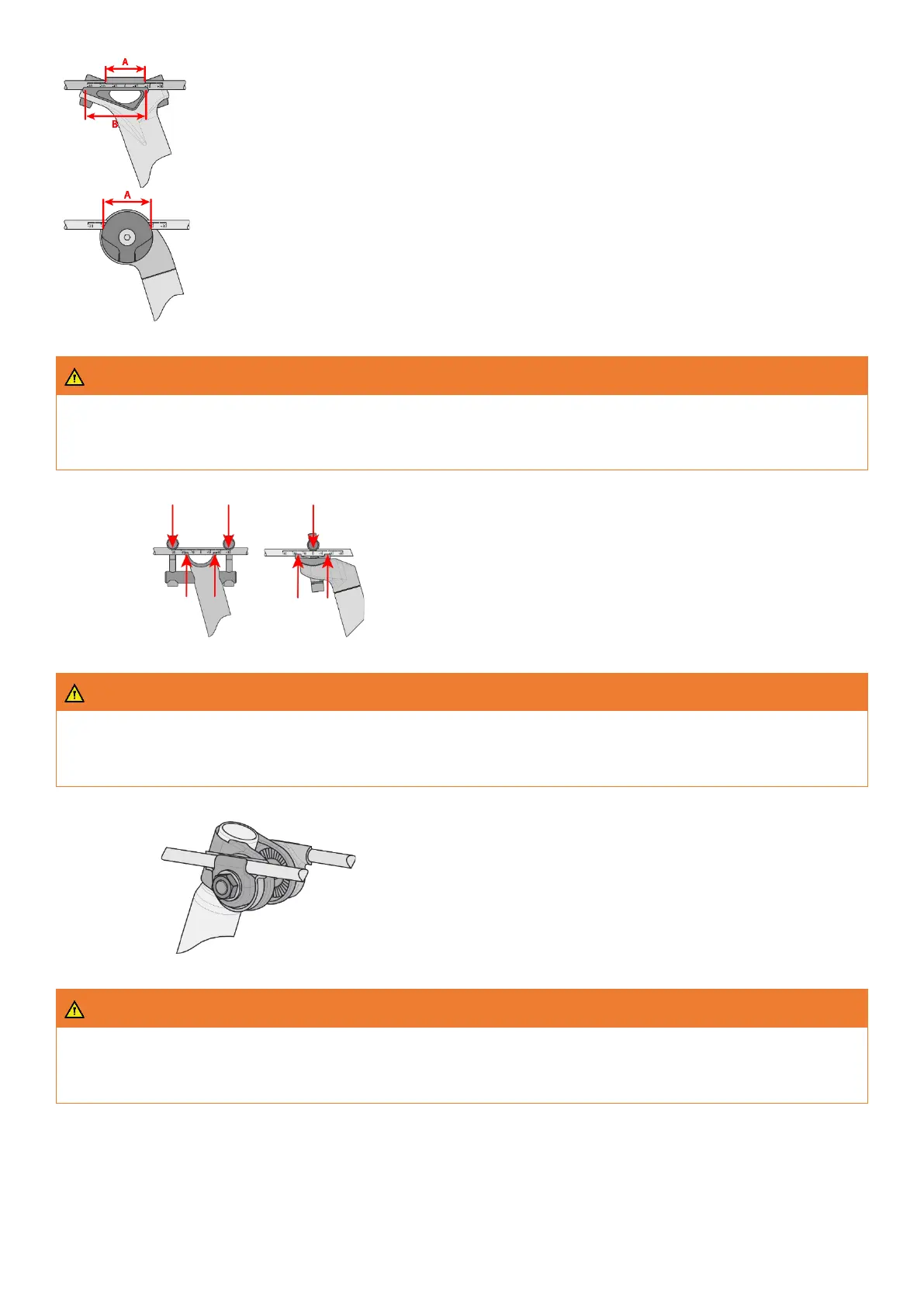

The length "A" of the upper clamping jaw must be at least 32 mm and positioned
within the possibly longer lower clamping jaw "B".
OK
The clamping length "A" must also be at least 32 mm for seatposts with a
mechanism that clamps transversely to the direction of travel.
Warning
Clamping of the saddle frame with opposing clamping jaws or clamping surfaces.
Risk of breakage of the saddle rail due to bending stress.
• Clamp the clamping jaws or clamping surfaces so that they run in the same direction as the saddle rail.
❌ NOT OK
Warning
Mounting of the SQlab M-D Line saddle by means of saddle clamps.
Risk of breakage due to unreliable clamping of the saddle.
• Use conventional saddle clamps.
❌ NOT OK
Warning
Saddle clamp does not fit the shape of the saddle rails
Risk of accident due to sudden and unmediated breakage of the saddle rail during use.
• Only mount your SQlab M-D Line saddle in a seatpost designed for mounting strut diameters or strut cross sections of 7 mm.
