© 2013–2017 Schneider Electric All Rights Reserved
I-Line™ Combo Switchboards 80043-808-02 Rev. 02
Installation—Interior Mounting into Square D Brand Enclosures 03/2017
10
ENGLISH
I-Line Combo Circuit Breaker Installation and Removal

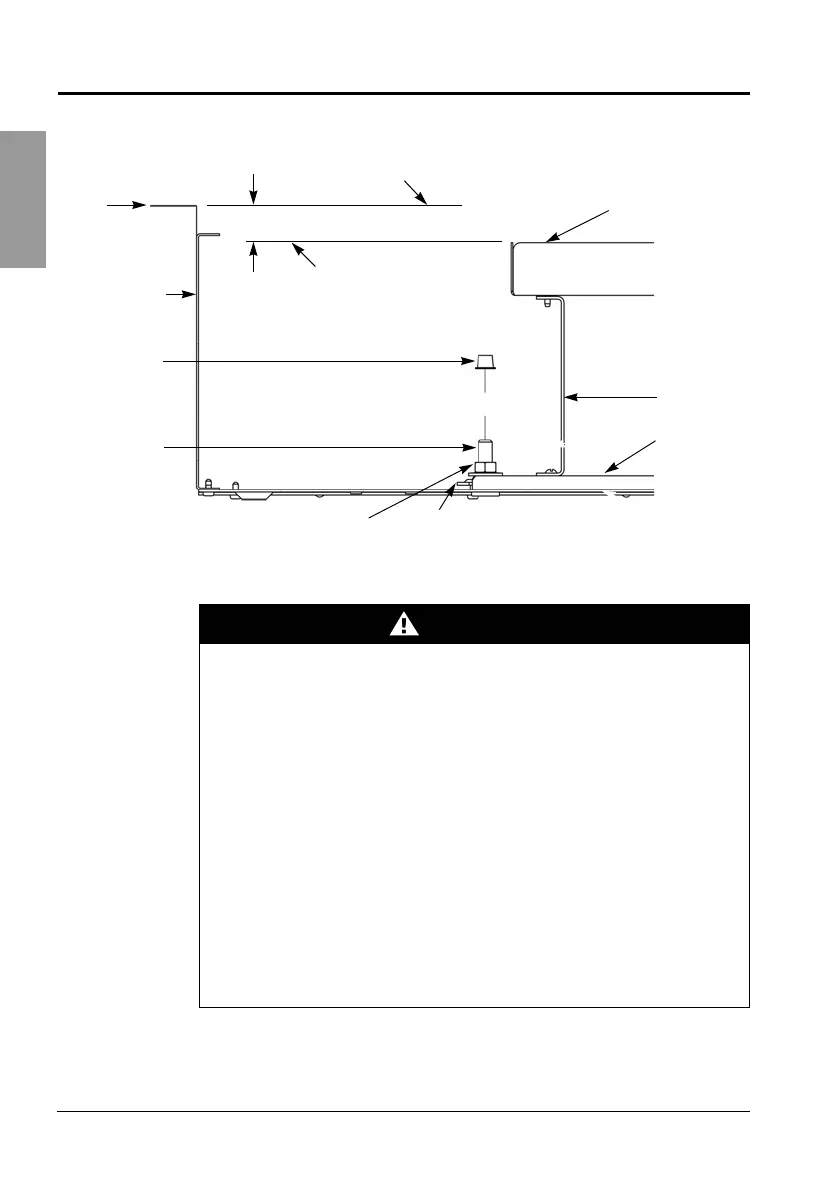

Figure 1: Interior Mounting into Square D Brand Enclosures
Wall
Enclosure
Flange nut
Enclosure stud
Elevating nut
Pan
Trim bracket
Interior trim
0.25 in. (6 mm) Applicable for flush mount only
Bold head cap
Interior trim surface
Wall surface
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices. See NFPA70E, CSA Z462 or
NOM-029-STPS.
This equipment must only be installed and serviced by qualified
electrical personnel.
Turn off all power supplying this equipment before working on or inside
equipment.
Always use a properly rated voltage sensing device to confirm that all
power is off.
All unused spaces must be filled with blank fillers.
Replace all devices, doors, and covers before turning on power to this
equipment.
Failure to follow these instructions will result in death or serious
injury.
80043-808-01.book Page 10 Wednesday, March 22, 2017 12:31 PM
