I-Line™ Combo Switchboards 80043-808-02 Rev. 02

Installation—Interior Mounting into Square D Brand Enclosures 03/2017

ENGLISH

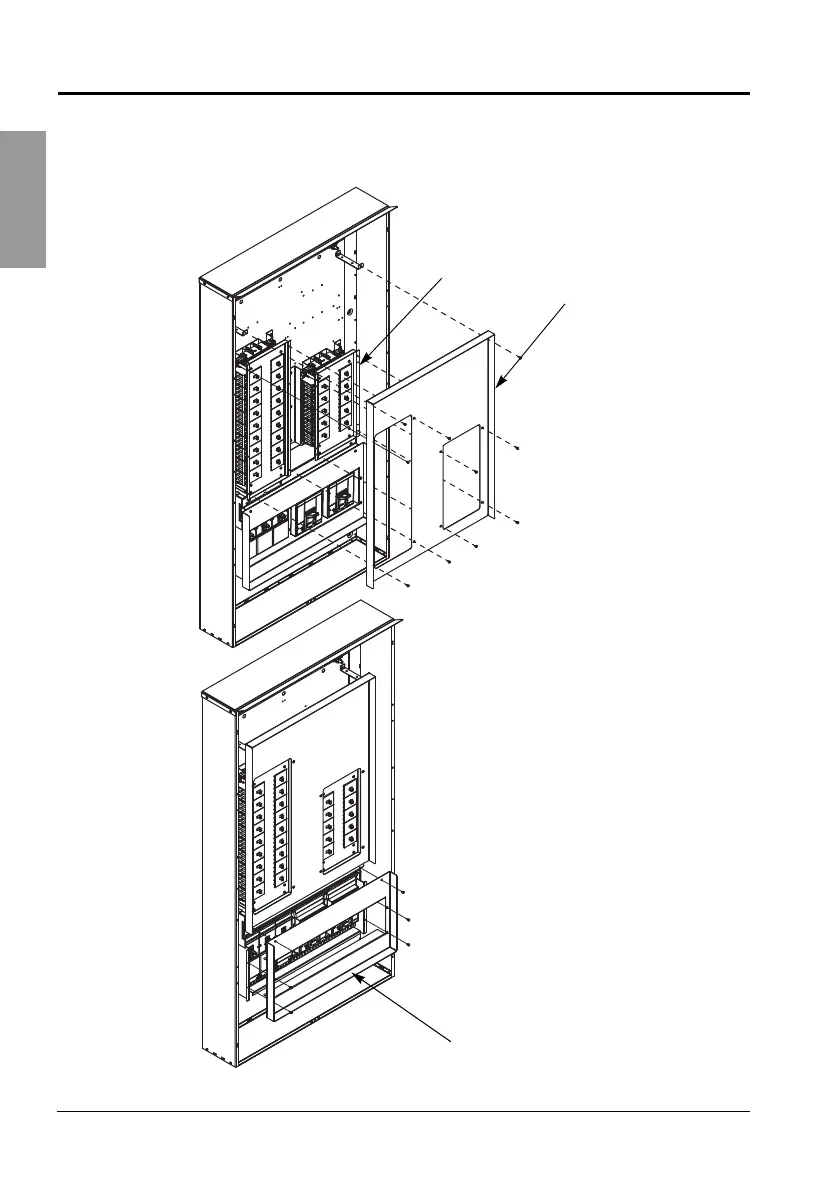

Figure 2: Interior Trim Removal

Large interior

trim cover

I-Line section

trim cover

Lighting section

interior trim cover

80043-808-01.book Page 12 Wednesday, March 22, 2017 12:31 PM

Questions and Answers:

Need help?

Do you have a question about the Square D I-Line and is the answer not in the manual?

General

Bus Material	Aluminum or Copper
Voltage Rating	600V AC
Current Rating	Up to 1200A
Enclosure	NEMA 1
Poles	2, 3
Interrupting Rating	200 kA (depending on the specific model and installed breakers)
