© 2013–2017 Schneider Electric All Rights Reserved
80043-808-02 Rev. 02 I-Line™ Combo Switchboards
03/2017 Installation—Interior Mounting into Square D Brand Enclosures
13
ENGLISH

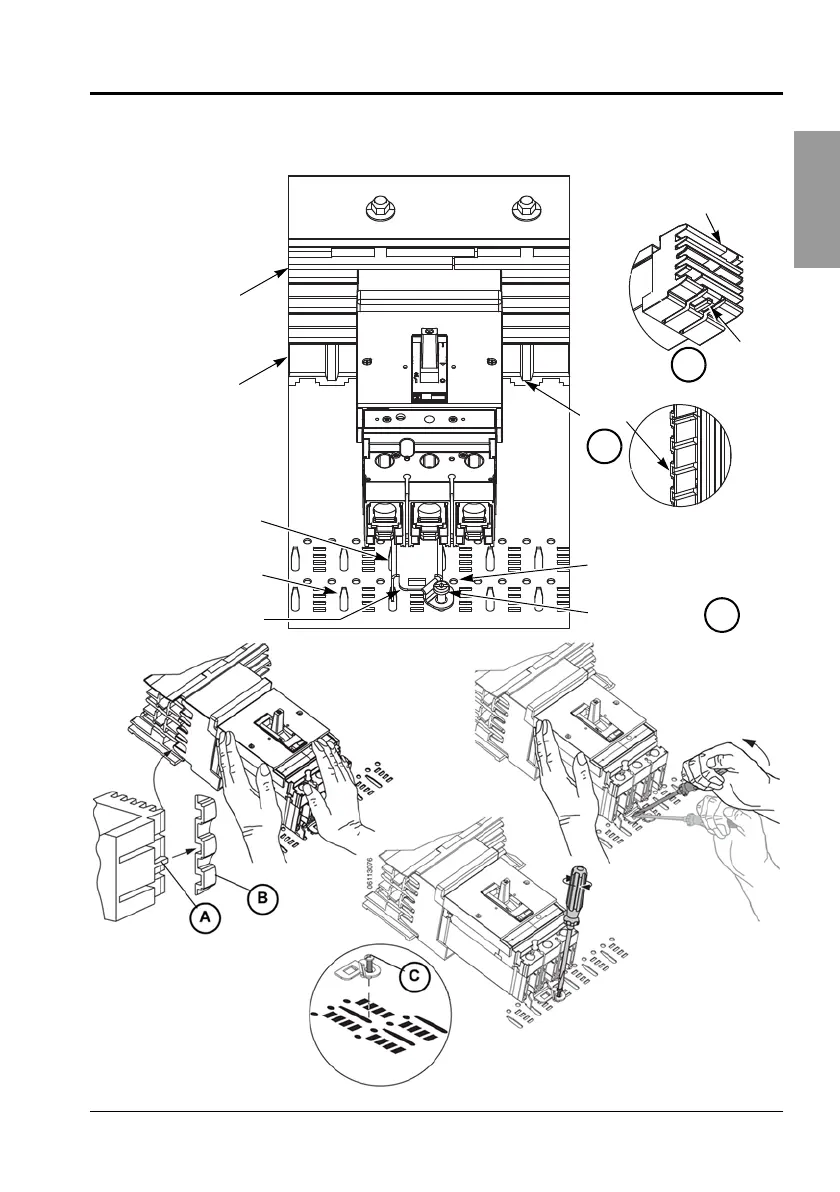

Figure 3: I-Line Circuit Breaker Installation and Removal
Mounting bracket
Retaining screw
Pan keyslots
Fingers
Circuit breaker hole
Bus bar stack
Circuit breaker jaws
Guiding
boss
Alignment
groove
Bus insulator
base
A
B
C
