80043-808-02 Rev. 02 I-Line™ Combo Switchboards

03/2017 Appendix 3: Wiring Diagrams

ENGLISH

Appendix 3: Wiring Diagrams

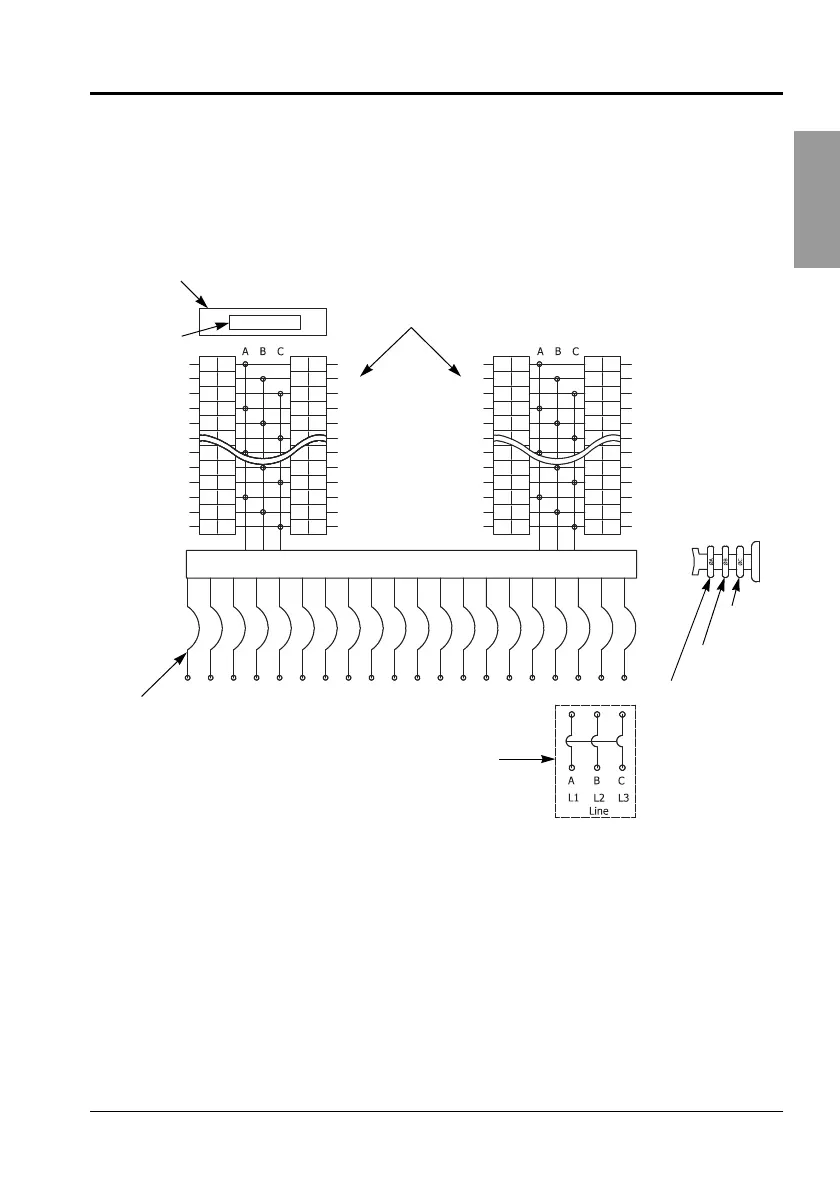

Figure 9: Main Circuit Breaker Wiring Diagram

for Duplex Hard Bussed Lighting Sections

NF/NQ section hard

bussed connected

branch circuits

Solid neutral

assembly

I-Line section

branch circuits

Plug-on main

circuit breaker

Front

bus ΦA

Middle

bus ΦB

Rear

bus ΦC

Enclosure

bonding
