13Parts & Operations Manual Doodle Scrub / Doodle Mop

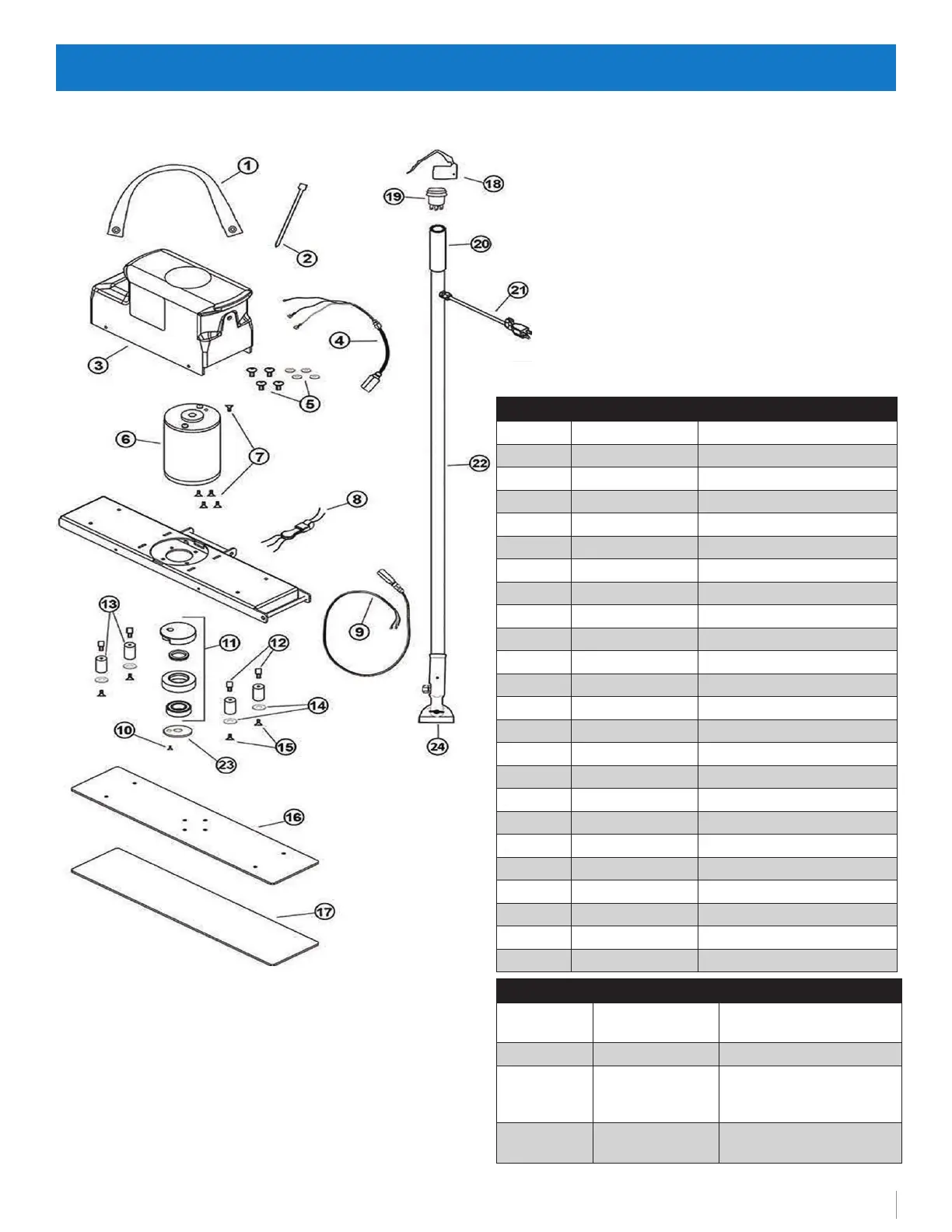

Doodle Mop 28054
Parts / Pièces
Item N. Part N. Description
1 SS 100090 CARRY STRAP
2 N/A ZIP TIE
3 SS 051661 DOODLE COVER
4 INCLUDED IN KIT MOTOR CORD
5 INCLUDED IN KIT COVER SCREW (4) / WASHERS (4)
6 INCLUDED IN KIT MOTOR
7 INCLUDED IN KIT MOTOR BOLT (5)
8 SS 051170 PTC/VARISTOR HARNESS
9 INCLUDED IN KIT HANDLE CORD
10 INCLUDED IN KIT MOTOR SHAFT BOLT
11 INCLUDED IN KIT ECCENTRIC ASSEMBLY
12 INCLUDED IN KIT TOP ISOLATOR BOLT
13 INCLUDED IN KIT ISOLATOR (4)
14 INCLUDED IN KIT ISOLATOR SPACER (4)
15 INCLUDED IN KIT BOTTOM ISOLATOR BOLT (4)
16 SS 051634 BASE PLATE
17 SS 051603V GRIP FACE
18 SS 051180 TRIGGER
19 SS 051104 EBG-9 SWITCH
20 SS 0101Z HANDLE GRIP
21 INCLUDED IN KIT POWER CORD
22 INCLUDED IN KIT HANDLE
23 INCLUDED IN KIT CRUSH WASHER
24 SS 051152 BASE CLIP
Item N. Part N. Description
3, 4, 5 SS 051666
EBG-16 COVER
REPLACEMENT KIT
6, 7, 8, 9, 10 SS 051106 MOTOR REPLACEMENT KIT
5, 10, 11, 12,
13, 14, 15, 16,
17, 23
SS 051615 BASE PLATE KIT
5, 10, 12, 13,
14, 15, 17
SS 051601 ISOLATOR REPAIR KIT
