15Parts & Operations Manual Doodle Scrub / Doodle Mop
Doodle Mop 28054

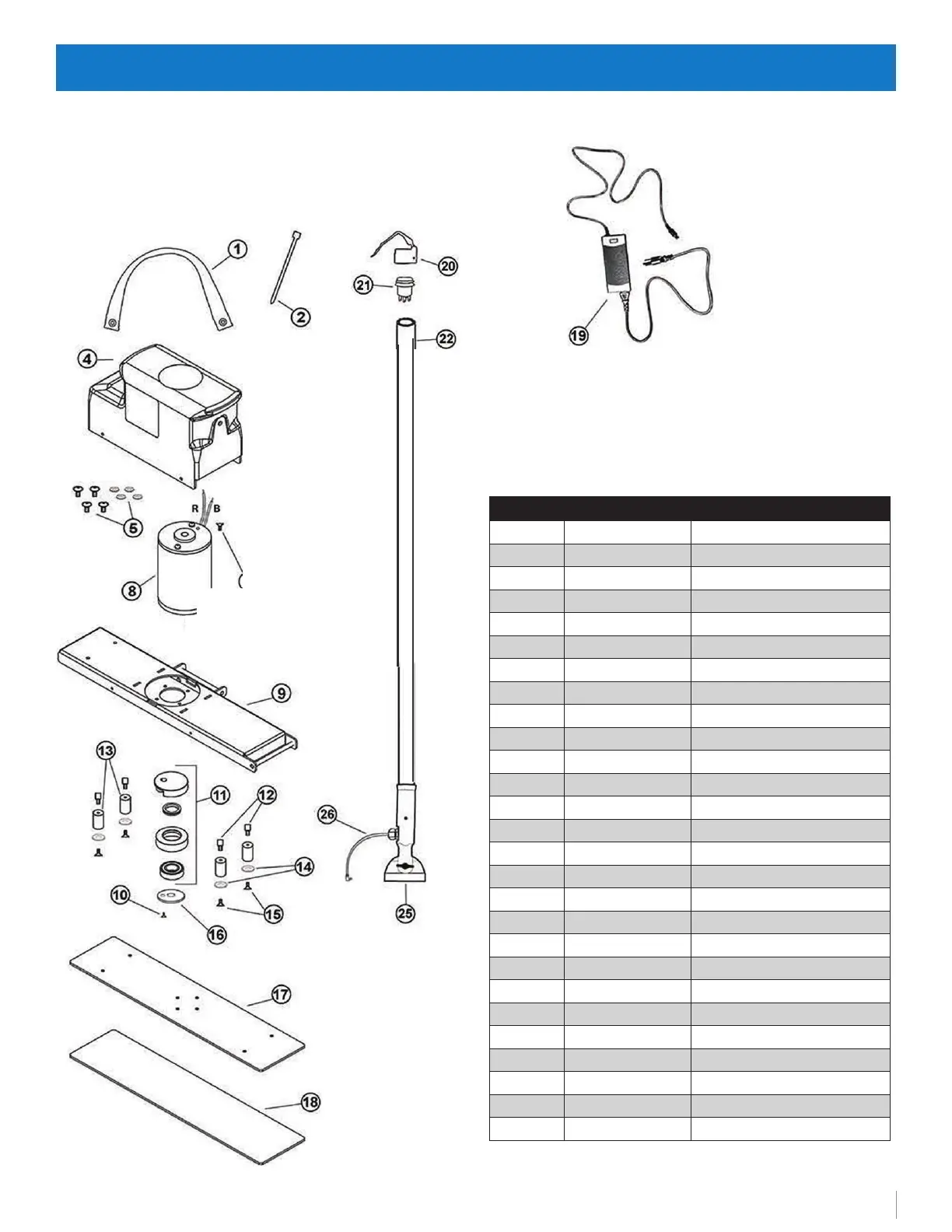

Parts / Pièces
Item N. Part N. Description
1 SS 100090 CARRY STRAP
2 N/A ZIP TIE
3 SS 051168 BATTERY METER
4 SS 051661 DOODLE COVER
5 INCLUDED IN KIT COVER SCREW (4) / WASHERS (4)
6 INCLUDED IN KIT MOTOR CORD
7 INCLUDED IN KIT MOTOR BOLT (5)
8 INCLUDED IN KIT MOTOR
9 N/A BASE
10 INCLUDED IN KIT MOTOR SHAFT BOLT
11 INCLUDED IN KIT ECCENTRIC ASSEMBLY
12 INCLUDED IN KIT TOP ISOLATOR BOLT
13 INCLUDED IN KIT ISOLATOR (4)
14 INCLUDED IN KIT ISOLATOR SPACER (4)
15 INCLUDED IN KIT BOTTOM ISOLATOR BOLT (4)
16 INCLUDED IN KIT CRUSH WASHER
17 SS 051634 BASE PLATE
18 SS 051603V GRIP FACE
19 SS 051145 CHARGER
20 SS 051180 TRIGGER
21 SS 051104 EBG-9 SWITCH
22 SS 0101Z HANDLE GRIP
23 N/A CHARGING PORT
24 SS 051140 BATTERY PACK/HANDLE
25 SS 051152 BASE CLIP
26 N/A HANDLE CORD
27 SS 051153 3 WIRE CONNECTOR (2)
