Squier Affinity Jazz Bass - Affinity J Bass Wiring Diagram

Squier Affinity Jazz Bass

2 pages

Save Page as PDF

To Previous Page

To Previous Page

Loading...

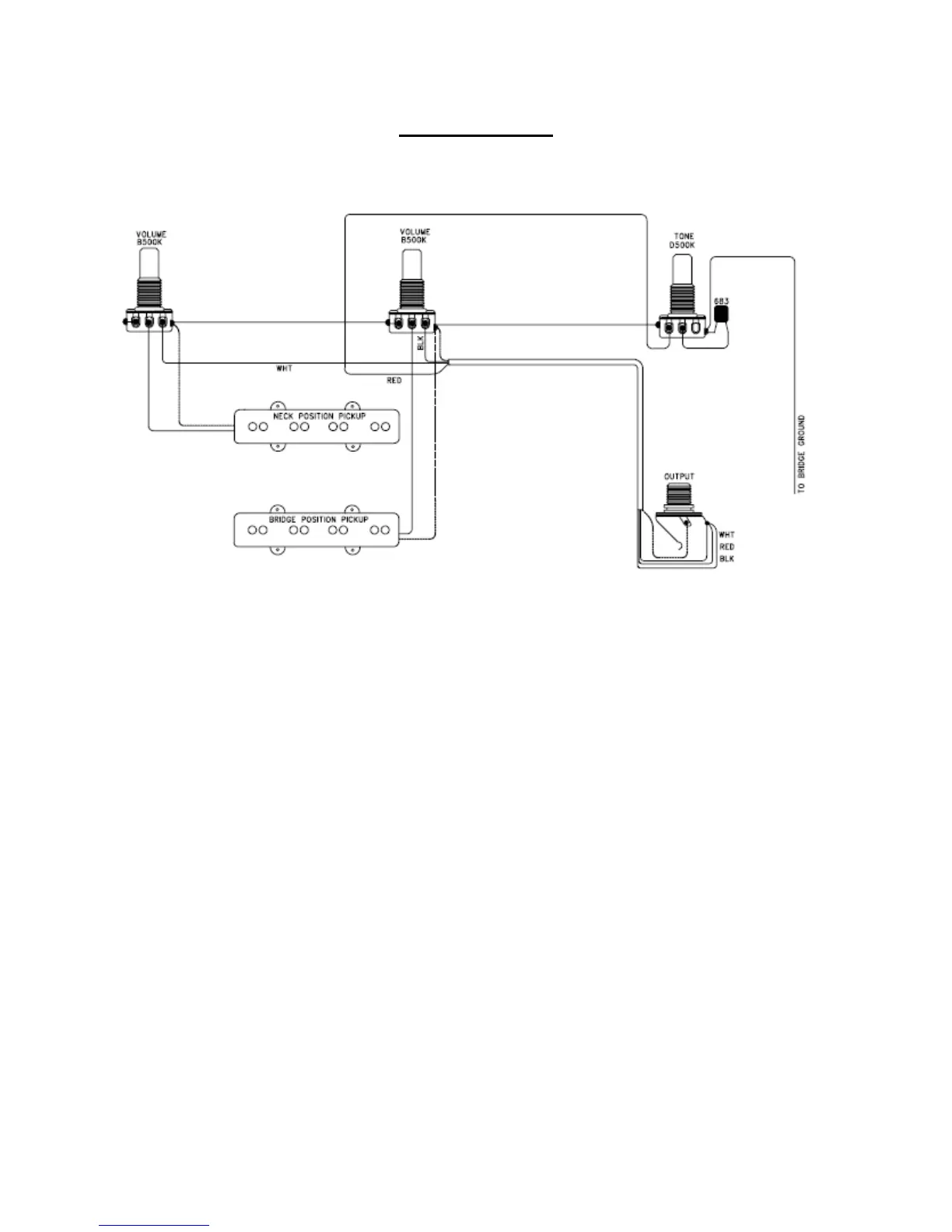

Wiring Diagram

Last Revision Date: 8/28/2008

Page 2 of 2
