Installation of the Vacuum Pump Interface on the
SRI 8610C GC
The Vacuum Pump Interface Kit
8670-0073 contains:
Vacuum pump (specify voltage)
Solid state Relay (100-240 volts AC )
and attached screws
2 amp fuse and fuseholder 250volts
4 #6 x 1/2” screws
5 #6 locknuts
5 crimp ring terminals
3 sticky back cable tie mounts
3 tie wraps
Two meters each:
Black wire, white wire, yellow and green/
yellow.
Shrink tubing

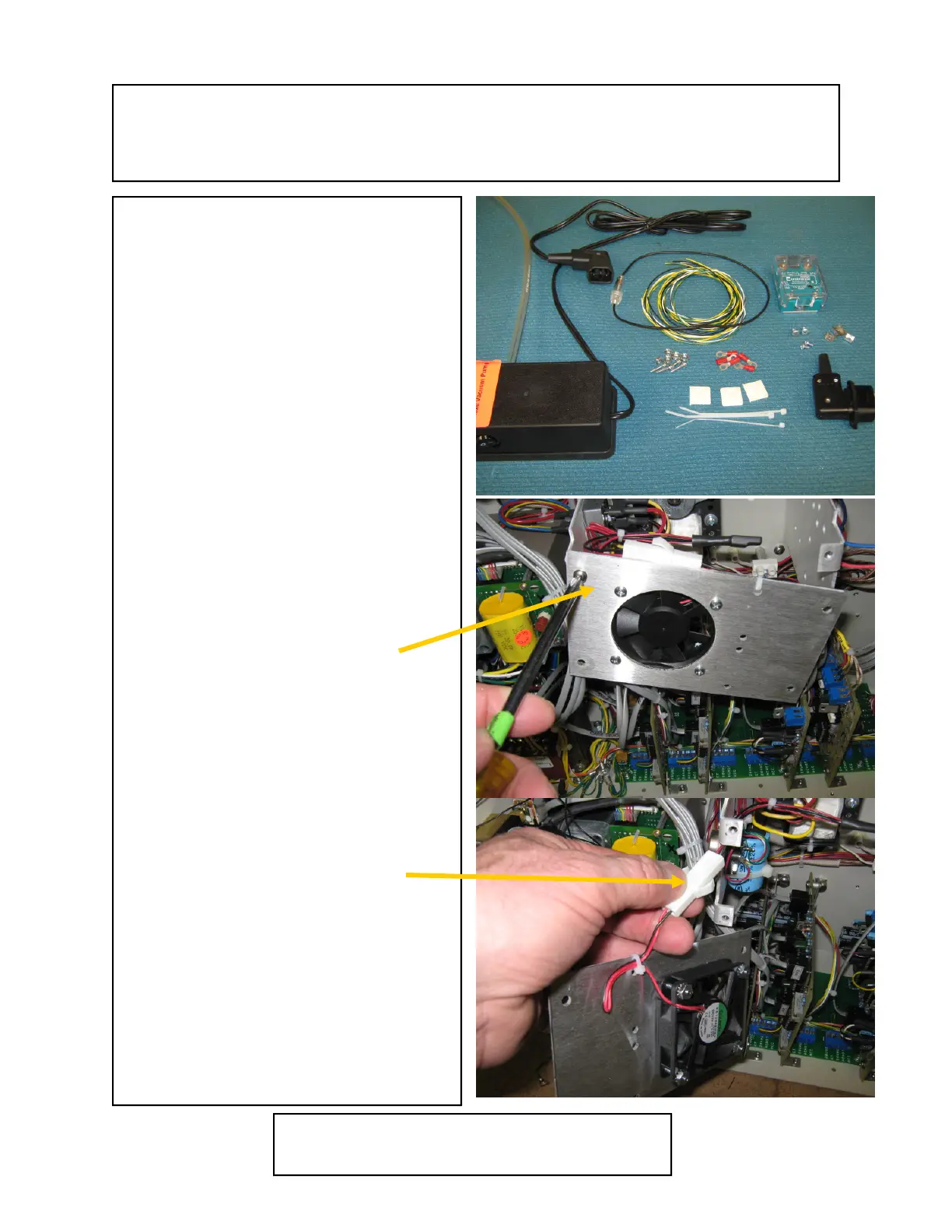

Remove the four screws holding
the chassis circulation fan.
The fan connector un-clips.
