SSANGYONG Actyon 2008.01 User Manual

01-17
ENGINE GENERAL
ACTYON 2008.01
0000-00

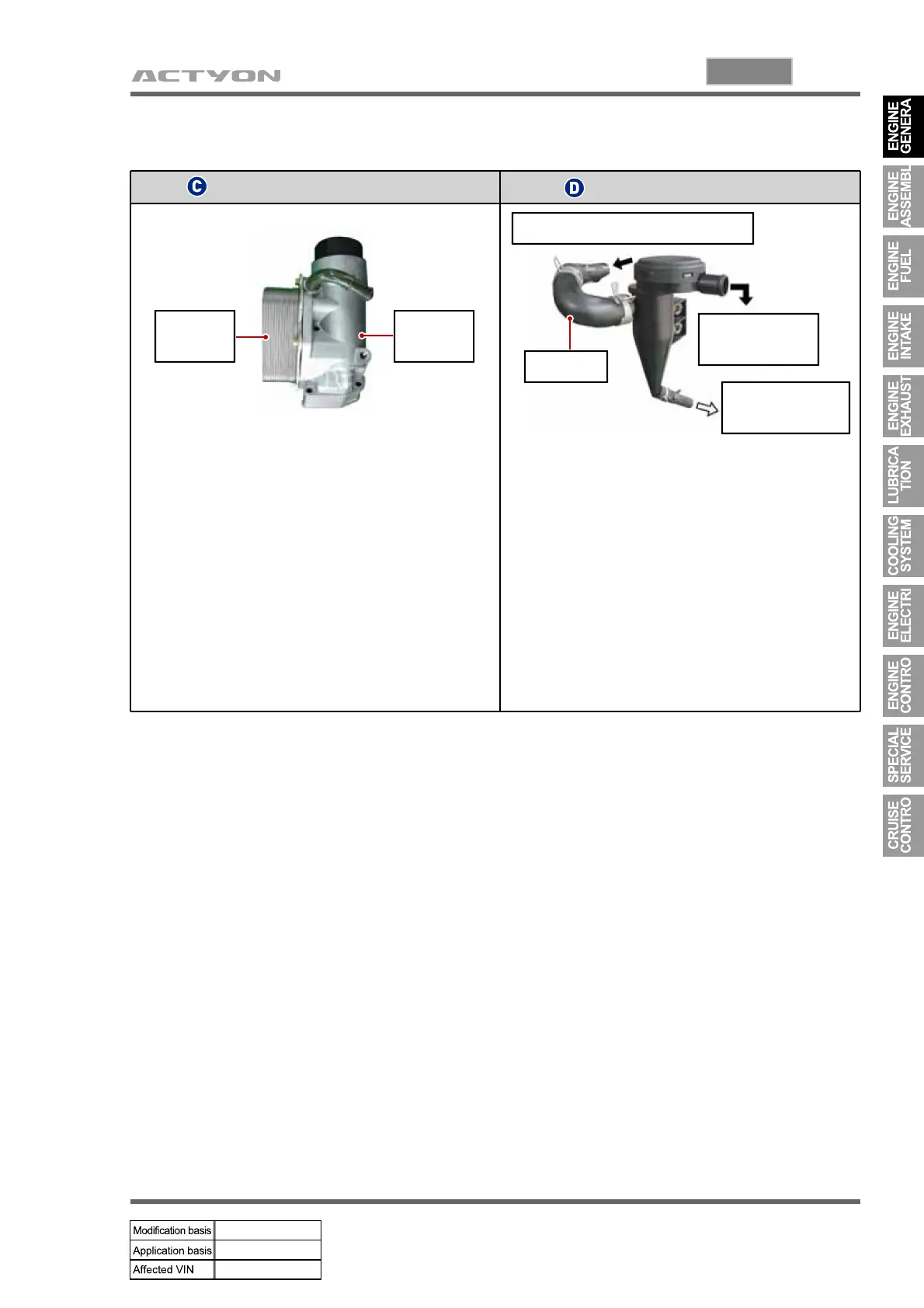

Oil Filter & Oil Cooler PCV Oil Separator
Oil
cooler
Oil
filter
Cylinder head cover (oil + gas)
Inlet port
Blow-by gas
(air duct hose)
Oil
(oil gauge pipe)
The first separation will happen when blow-
by gas passes through baffle plates in
cylinder head cover. Then oil and gas will
be separated due to cyclone effect afte
r
entering the oil separator inlet port.
Separated oil returns to oil pan via oil drain
port and the gas will be burnt again afte
r
entering the combustion chamber through
air duct hose via PCV valve that
opens/closes due to pressure differences
between the intake side and crankcase.
