01-5
ENGINE GENERAL
undefined
0000-00
1) ECU Related Componets

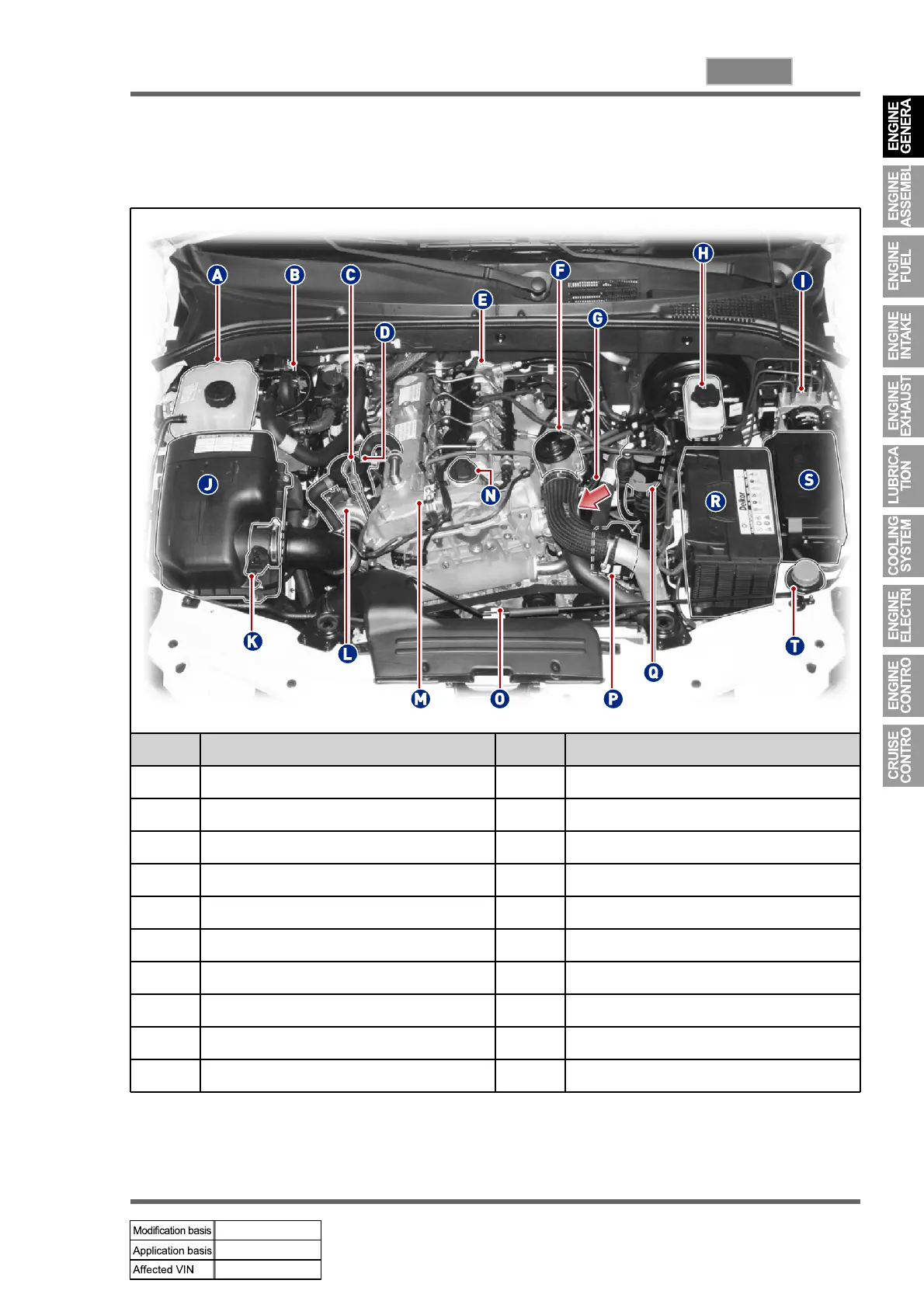

2. ENGINE CONTROLS LAYOUT
NO. FUNCTION NO. FUNCTION
A Coolant reservoir K HFM sensor
B FFH L VGT turbo charger
C Engine oil dipstick M Engine
D Oil separator(PCV valve ) N Engine oil filler cap
E Vacuum pump O PWM electric fan & fan shroud
F EGR valve P Power steering oil reservoir
G Vacuum modulator Q Fuel filter & priming pump
H Brake fluid reservoir R Battery
I ABS/ESP modulator S Fuse box
J Air cleaner assembly T Washer fluid reservoir
