CIRCUIT
Operation when warning is cancelled
-
The siren and hazard warning flasher outputs are “OFF”.·
Operations when removing and installing the battery
-
If the system is in armed mode while installing a battery, the siren sounds and the
emergency warning lamp blinks. (Same operations with warning in armed mode).
RELOCK Operation: It the door is not opened or the ignition key is not inserted into the key
cylinder within 30 seconds after unlocking the door with remote control key, the system
outputs “LOCK” signal and activates the armed mode.
Auto Door Unlock (Crash Unlock)
▶
The air bag collision signal input cannot be accepted within 7 seconds after turning
the ignition key to “ON” position.
After this period, the door lock system outputs “UNLOCK” for all doors for 5
seconds from 40ms after receiving the air bag collision signal.
Even though the key is turned to “OFF” position during the output of “UNLOCK”,
the output continues on for remaining period.
The function is erased when turning “OFF” the IGN switch.
-
-
-
-
Time Lag Power Window Control
▶
The power window relay output is “ON” when turning on the ignition switch.
The power window relay output is “ON” for 30 seconds when turning off the
ignition switch. The power window relay output is “OFF” when opening the
driver’s door or the passenger’s door.
The power window relay is turned “OFF” when receiving the remote control key
lock signal (armed mode) during its extended operation period of 30 seconds.
-
-
-

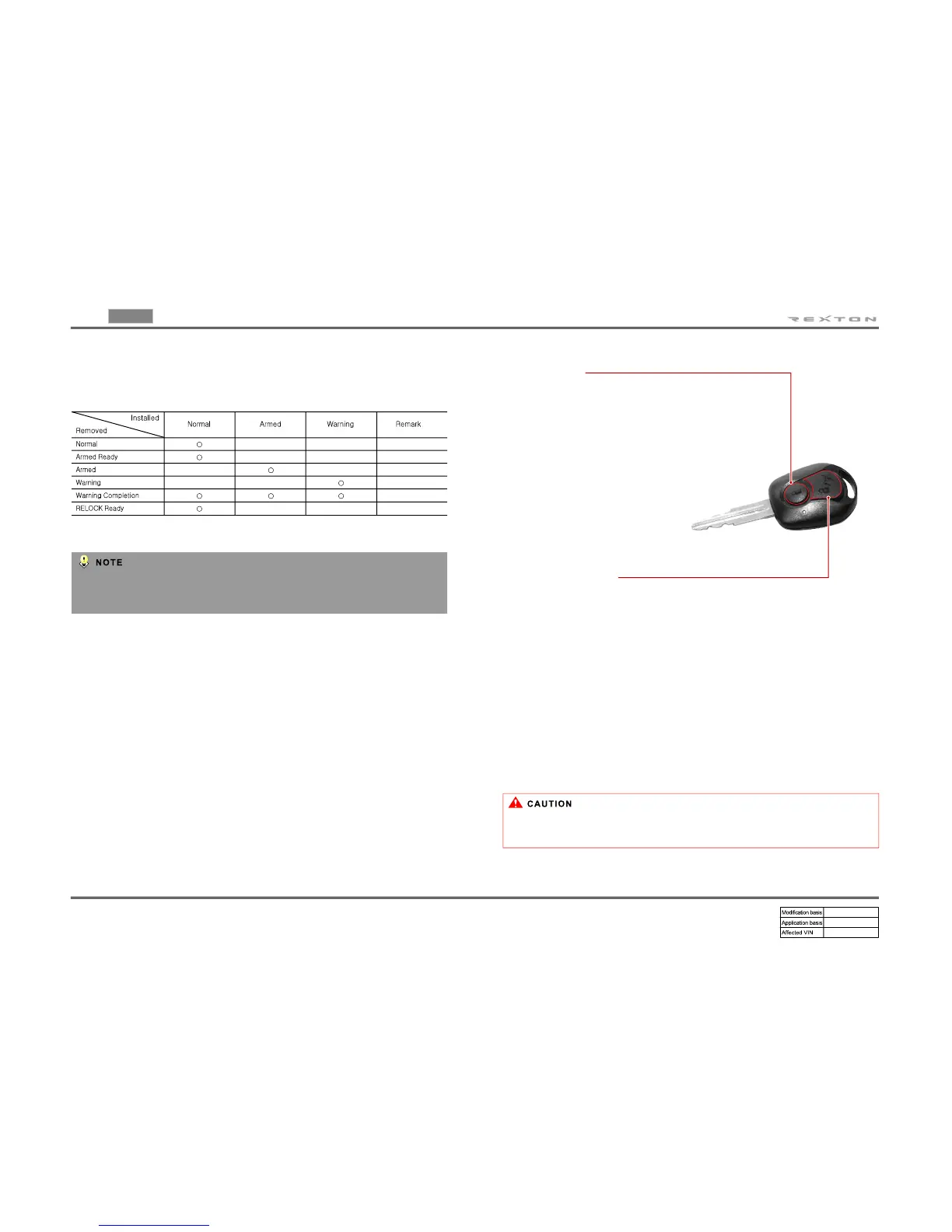

Specifications of Remote Control Key
▶
When any of switches on remote control key is pressed, the integrated CPU in remote
control key sends the coded control message to the CPU in receiver to control the vehicle.
Switch Functions on Remote Control Key
-
Door Lock Button
Lock (briefly press)
If you are in your vehicle and feel threatened while
the ignition key is inserted into the key switch, you
may activate the alarm to call attention. If you
press this button, the warning siren will sound fo
approx. 27 seconds.
The panic function will stop when any of the
buttons on the remote control key is pressed.
·
·
Door Unlock/Panic Button
1. Unlock (briefly press)
If you press this button briefly, all doors and the
tailgate are locked and the theft deterrent mode is
activated.
When the theft deterrent mode is activated, the
hazard warning flashers blink twice.
·
·
2. Panic function (press and hold)
If you press this button briefly, all doors and the
tail gate are unlocked and the theft deterrent
mode is deactivated.
When the deterrent mode is deactivated, hazard
warning flashers blink once.
·
·
Panic Button
(operative only when the ignition
key is inserted)
The coding signal is transmitted only if pressing the door unlock button long (approx. 2
seconds) when coding the remote control key.
