0-63
CIRCUIT
REXTON 2007.09
8710-02
Receiver
▶
Operating requirements
IGN Key = OUT (removed)
Code registration requirement
Codes can be registered only through SCAN-100.
Transmitter Code Registration
-
-
-
Up to five transmitter codes (same for REKES key) can be registered.
The received code cannot be output during the registration.
The remote control key must be encoded through the SCAN-100.
·
·
·
Remote Door Lock
▶
All doors are locked when briefly pressing the door LOCK switch on remote control
key (less than 0.5 seconds).
The system outputs LOCK signal immediately after receiving the door lock message
from the remote control key. The system activates the theft deterrent mode when all
doors are locked while they are fully closed (the hazard warning lamps blink twice.).
-
-
Door Unlock
▶
The door unlock operates when pressing the door unlock switch on the remote
control key for less than 0.5 seconds.
The door unlock relay is “ON” for 0.5 seconds when receiving the door unlock
message from the remote control key.
The hazard warning lamps blink once only when all the doors unlocked.
-
-
-
Auto Door Lock in 30 Seconds after Pressing Door Unlock Butt
▶
If no door is opened for 30 seconds after inputting remote door unlock, the doors are
automatically locked and the armed mode of anti-theft system is activated again.
-

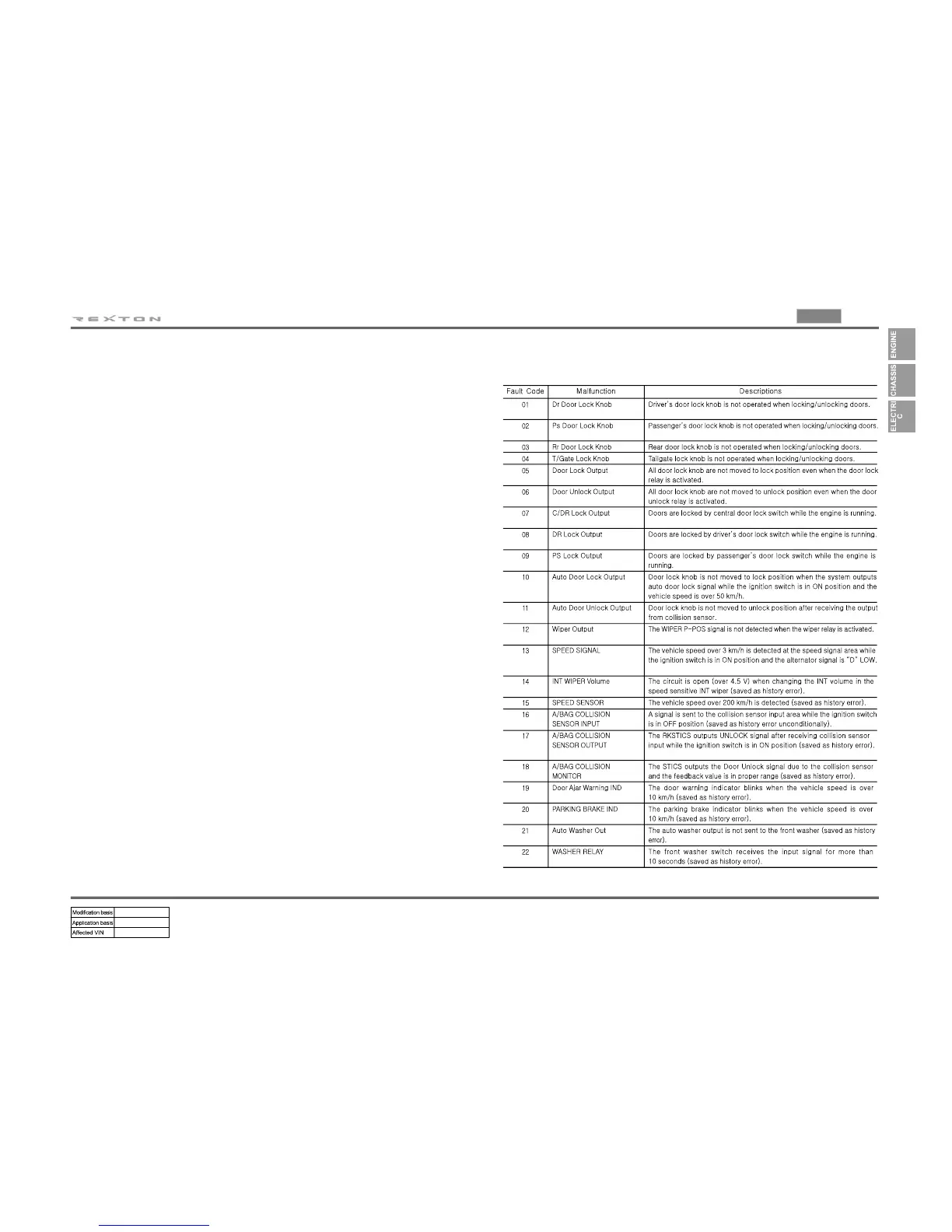

G. DIAGNOSIS TROUBLE CODE AND HELP TIPS
