(3) CIRCUIT DESCRIPTION
A. FUNCTION AND DESCRIPTION
Basic function: Adjustment and memorization of driver’s seat position,
Folding/Unfolding the outside rearview mirrors.
Additional function: Easy access function, Aiming down (3.5°) when reversing Deleted
component: Outside rearview mirror folding unit (model with SPWM) However, for the vehicle
without SPWM, the outside rearview mirror folding unit is installed in front of STICS.
B. MAJOR FUNCTIONS OF SPWM UNIT
Driver’s Power Seat
▶
The control the SPWM unit, the ignition ON/OFF signal is transmitted to SPWM unit from
STICS. However, the parking brake signal and transmitted to SRWM unit from the instrument
cluster.
- Power Seat Position Control
- Outside Rearview Mirror Control
- Driver's Seat and Outside Rearview Mirror Position Memory
- Easy Access
- Outside Rearview Mirror Auto Down

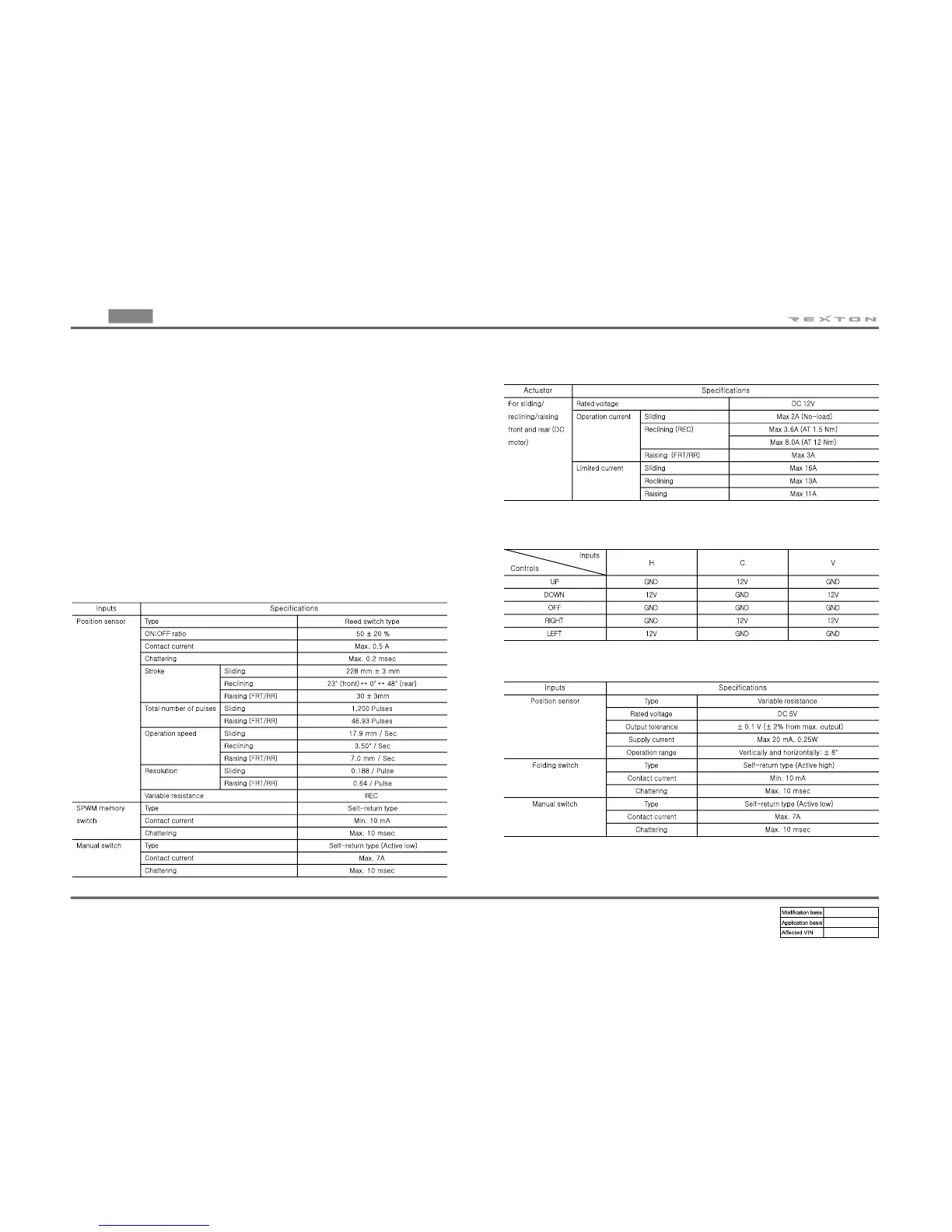

C. SPECIFICATIONS
▶Actuator
▶Outside Rearview Mirror
- Manual Mode (Normal): 12V
- Position Sensor and Folding Switch
To Next Page
