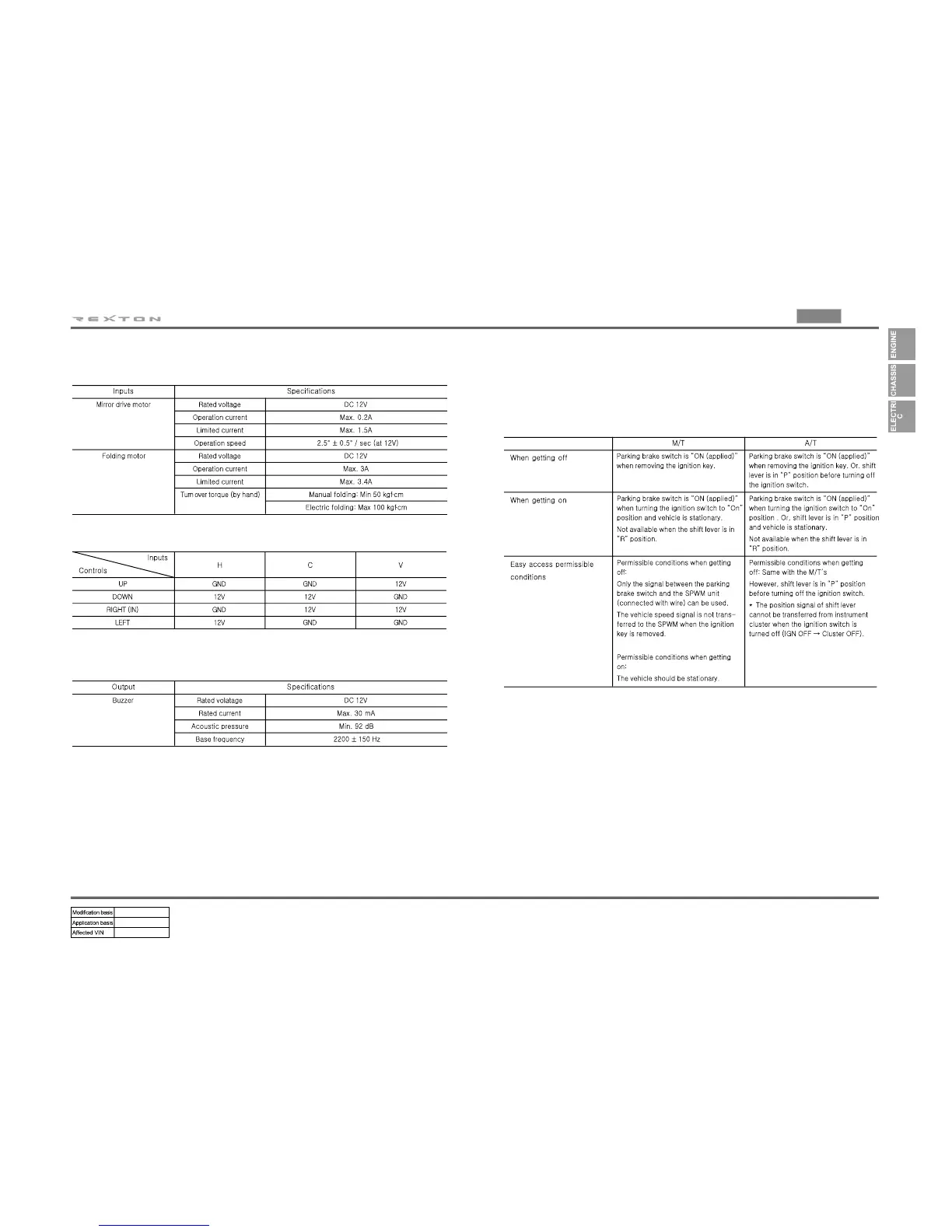

0-41
CIRCUIT
REXTON 2007.09
7410-13
D. EASY ACCESS FUNCTION▶Motor
▶Motor Output (normal mode: ground)
▶Buzzer
- Output time: 2Hz, DUTY 20% (ON: 0.1 sec., OFF: 0.4 sec.)
- Buzzer output conditions
When the memory operation is permitted (memory switch ON): once
After completing the memory recall (position switch ON): twice
When starting to recall the memory (position switch ON): once
When pressing the position switch button twice consecutively: three times
When detecting a sensor error while recalling (position switch ON): three times
No buzzer output for the easy access memory/recall operations
No buzzer output for the outside mirror position recall by the auto down operation
when reversing
·
·
·
·
·
·
·
This system is designed to provide a sufficient space for the driver to access and exit by
moving the seat rearwards.
Easy access permissible conditions:
To Next Page
