Ssl BTB8 - Wire Diagram; Specifications; Bluetooth Specifications; Speaker Specifications

12
ENGLISH
BLUETOOTH
 •Version:3.0w/EDR
 •A2DP
 •Range:33ft(10m)
SPEAKERS
 •Dimensions:8”/203.3mm
 •ConeType:PPCARBON+RUBBERSURROUND
 •TweeterSize:1”PEISOFTDOME
15A
Fuse and fuse holder
(not included)
Chassis
ground
point
BATTERY
Fuse is located inside the power adaptor
Turn counter clockwise to open
Replace with 10A AGC Fuse type only
INSERT
Normally open switch
(not included)
INSERT
OPTIONAL DIRECT BATTERY WIRING CIRCUIT
RED
BLACK
Chassis
ground
point
QUICK RELEASE
POWER ADAPTOR
(INCLUDED)
POWER ADAPTOR
10A
Ground wire
Metal frame
Recommended 12 ~ 14ga Wire
(not included)
AMPLIFIER
 •ClassD
 •MaximumOutputPower:700Watts
 •Inputimpedance:10kΩ
 •FrequencyResponse:45Hz-22kHz
GENERAL
 •OperationalPower:12VDC(10-16Vallowable)
 •MAXCurrentDraw:10A
 •ReplacementFuse:10AAGCTYPE
 •Color:Black
 •NetWeight:12.7lbs/5.75kg
 •DimensionscmWxHxD:78.5x27.0x30.5
 •DimensionsInchesWxHxD:30.91x8.66x12.01
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

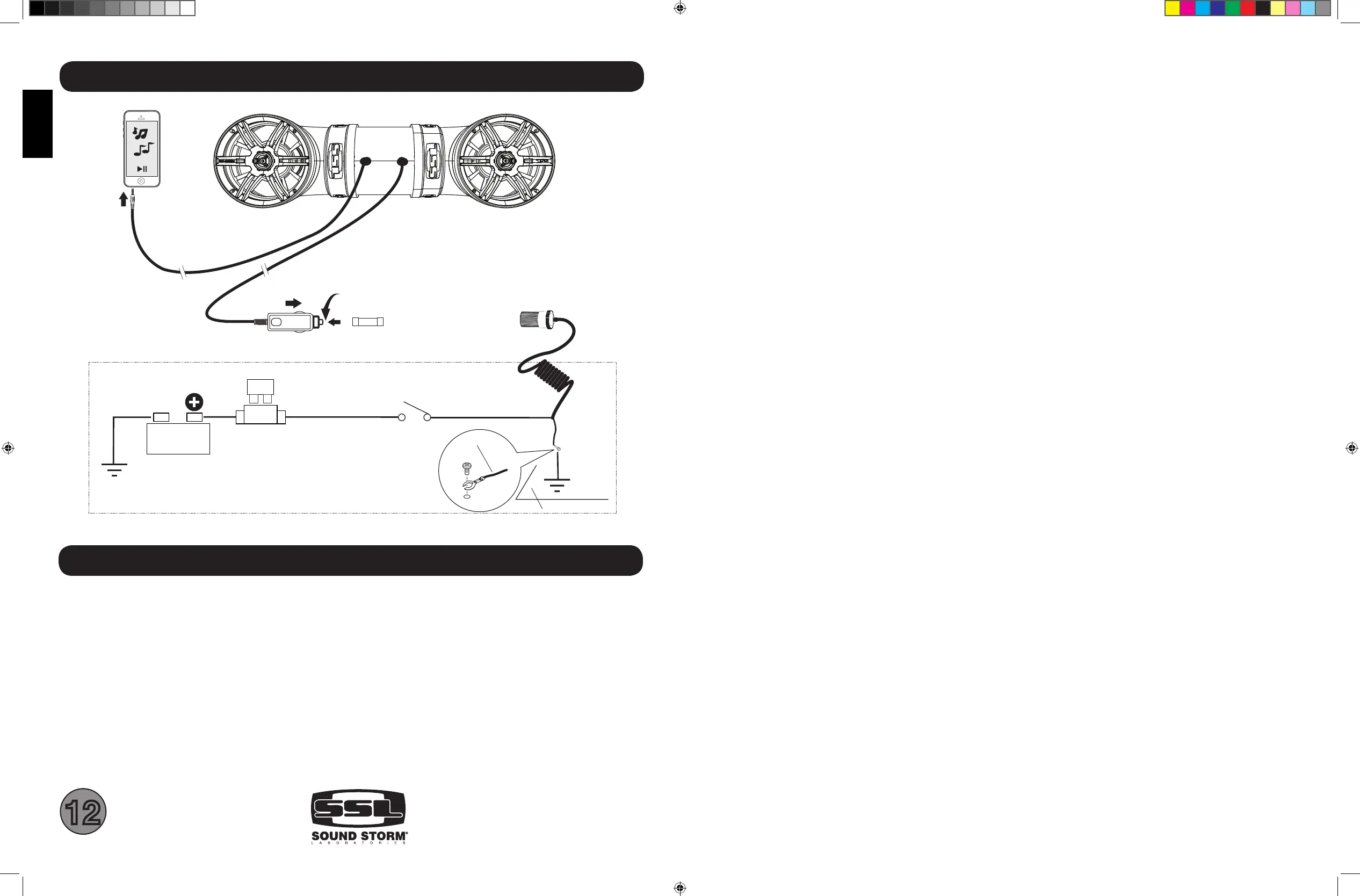

WIRE DIAGRAM
SPECIFICATIONS
