SSS Siedle BFS 850-02 User Manual

5
Terminating resistor
Transmission of signals within Siedle
In-Home: Video takes place using
high-frequency technology.
In order to avoid disturbance on the
bus cores, the end of each monitor
branch must terminated with an RC
element. The RC element comprises
a resistor with 100 Ohm and a
capacitor with 1 nF. In its as-
delivered status, each bus telephone
with colour monitor has a small
tted circuit board with this termi-
nating resistor at output terminals
TaM/TbM.
In-Home bus users: Video

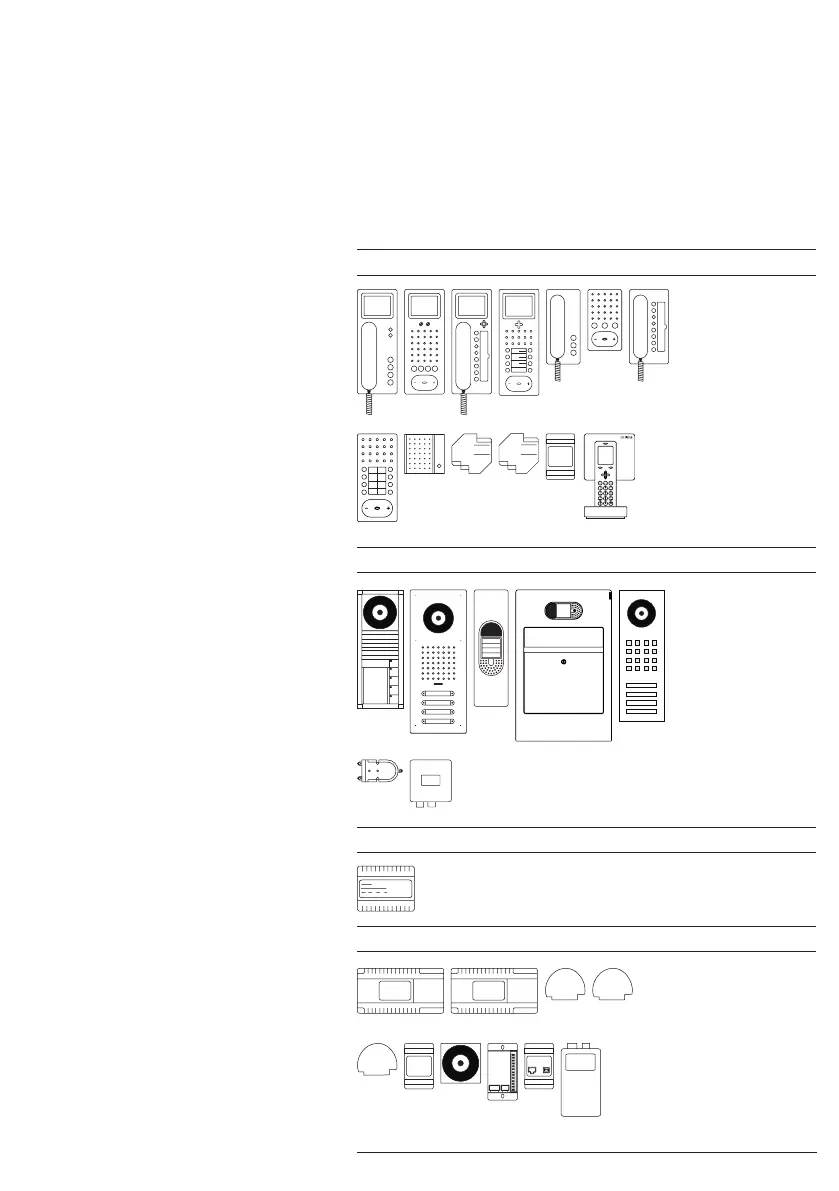

Overview of user assignment of the
individual devices
Devices occupying 1 user
BTSV 850-...
BFSV 850-...
BTCV 850-...
BFCV 850-...
BTS 850-...
BFS 850-...
BTC 850-...
BFC 850-...
BNS 750-...
BSE 650-...
BEM 650-...
BSM 650-...
S 850-...
Devices occupying 2 users
BTLM 650-...
CL V xx B-...
CSV/STV/SBV 850-...
STL ...
BTLE 050-...
BVA 650-...
Devices with variable user assignment (depending on programming)
DCA 650-...
Devices occupying no users
BNG 650-...
BVNG 650-...
BAA 650-...
BVVU 650-...
BVVS 650-...
BIM 650-...
BCMC 650-...
BRMA 050-...
PRI 602-... USB
BVS 650-...
